Mobile multi-function lighting device LED scene investigation lamp lifting work light box lamp FW6108 Item NO.: 335812

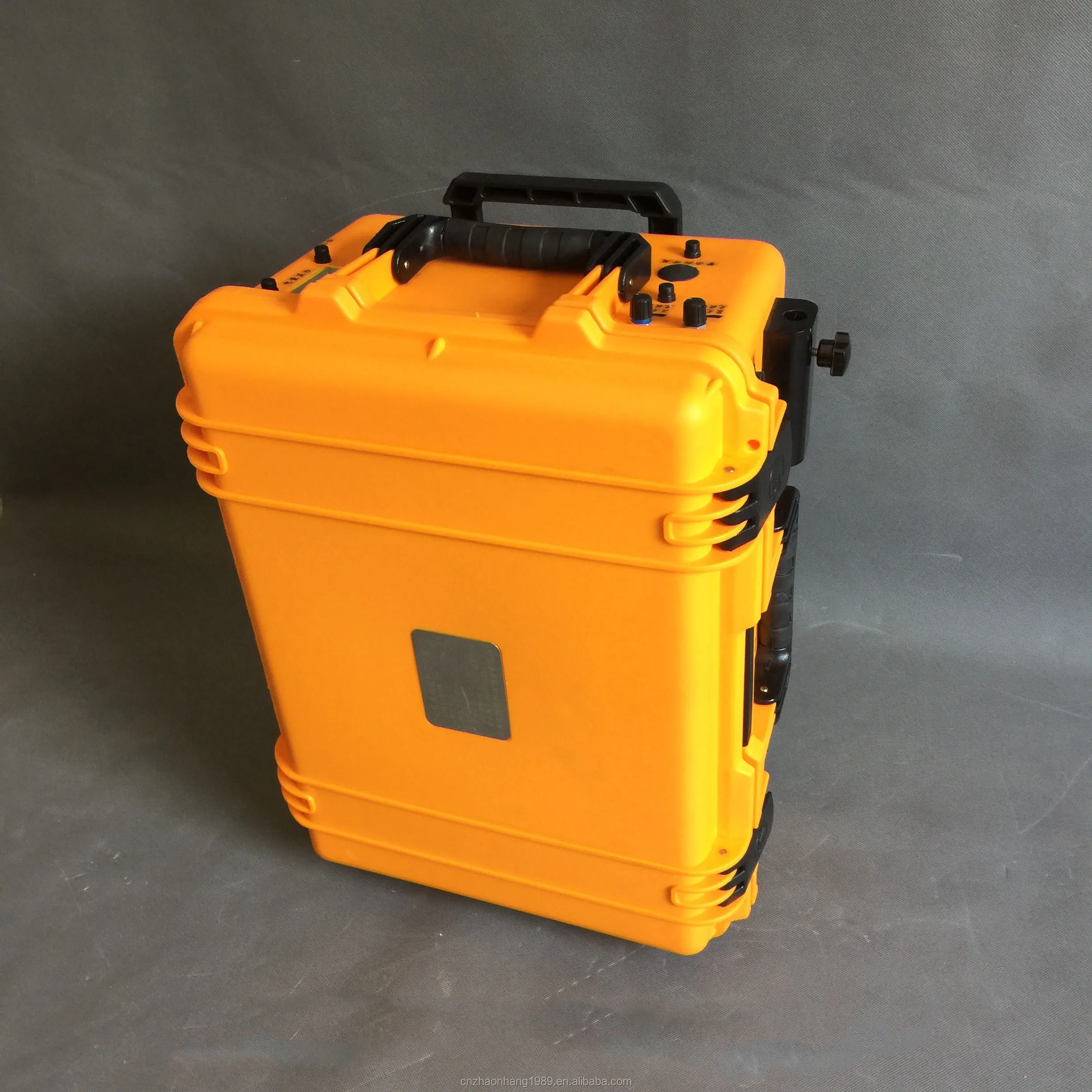

1. The mobile scene investigation lamp is designed with pull rod box, which can be carried, pulled and put in the trunk of the working vehicle. It is assembled and disassembled on site when using, which is convenient to move from one site to another quickly.
2. Advanced patented engineering plastic box, impact resistance, excellent toughness and deformation resistance, lighter and easier to carry. Super mute design roller, comfortable soft bag handle, suitable for long time loading.

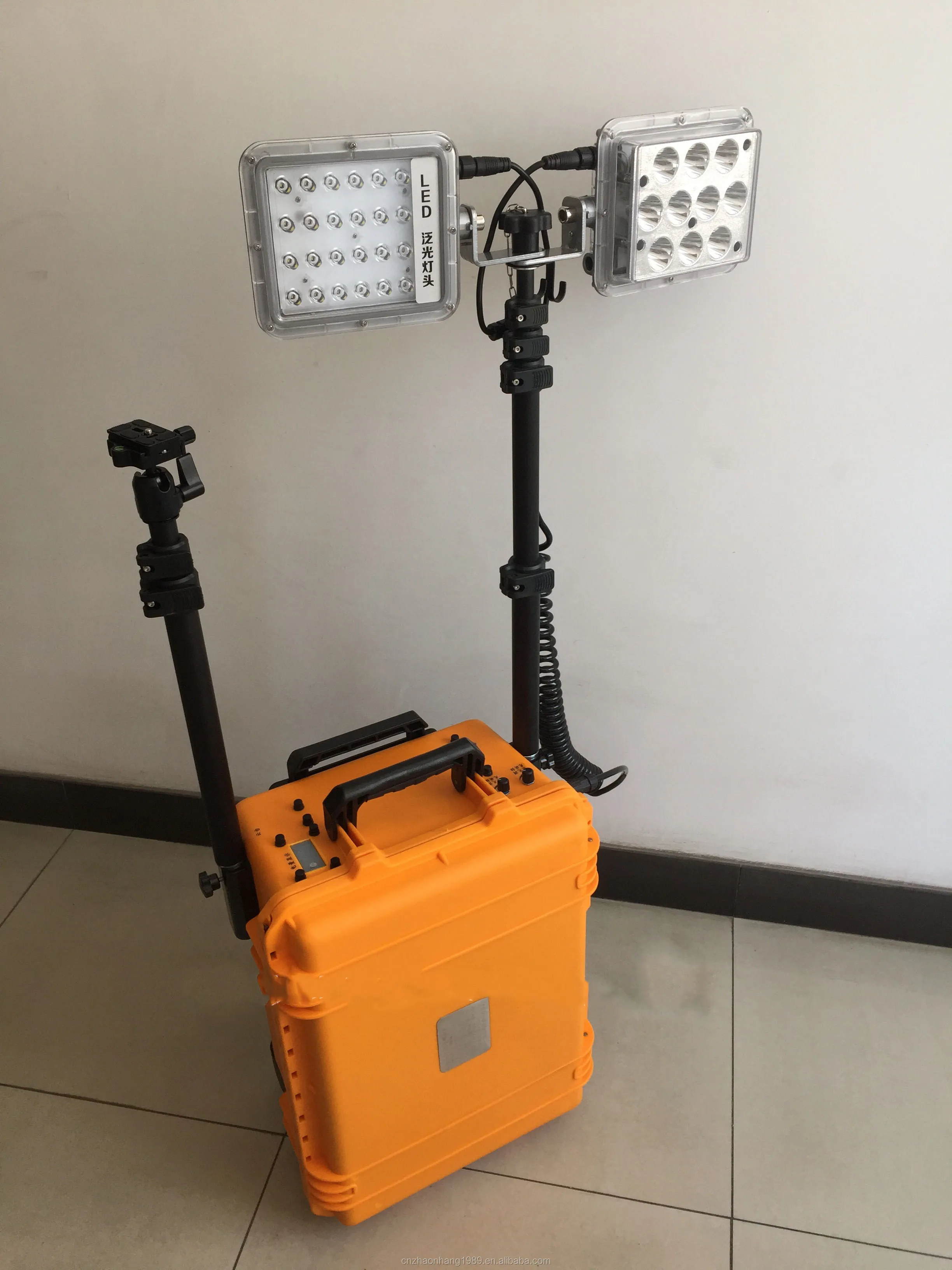

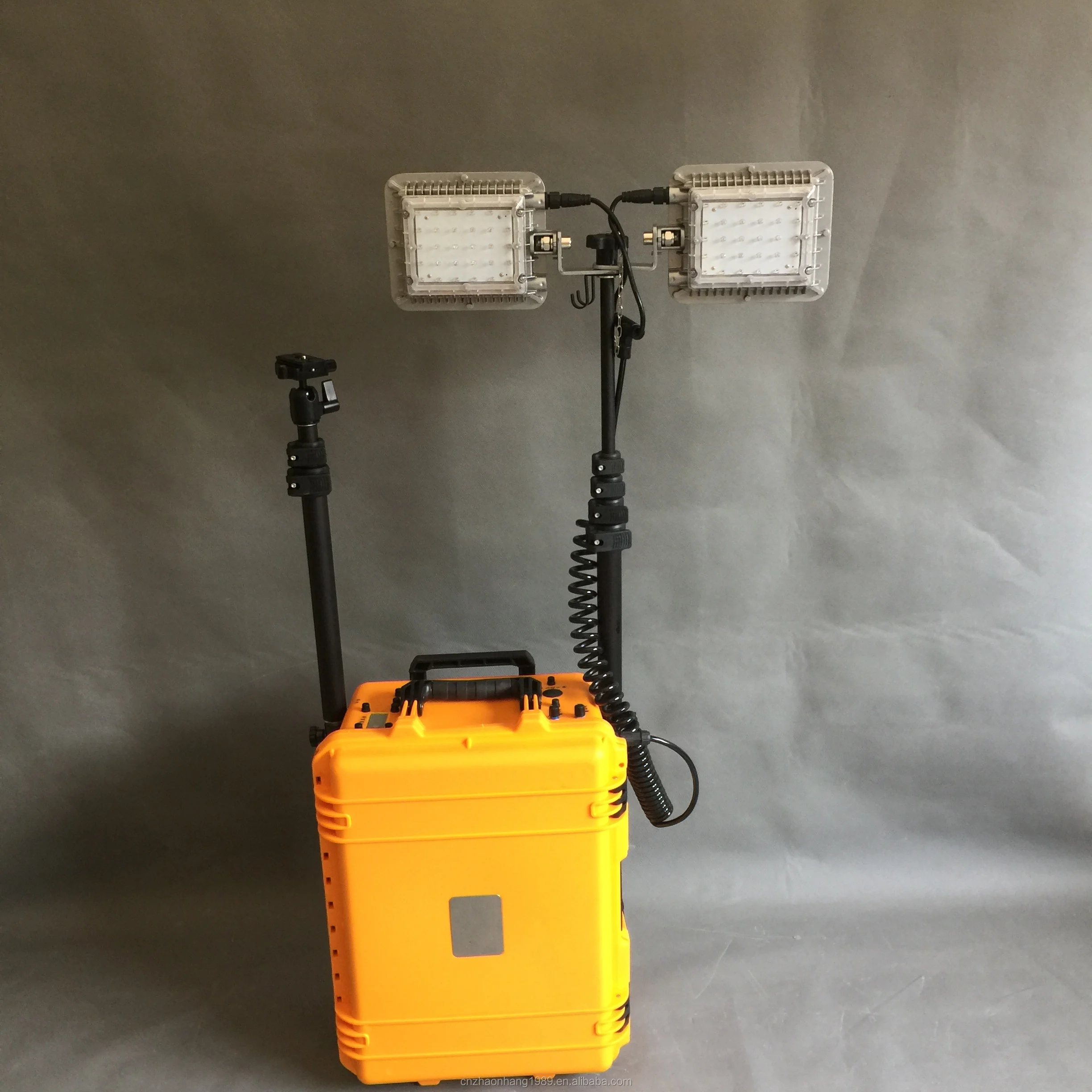

3, spotlight and flood light double lamp holder configuration
A spotlight head and a floodlight head with the same lamp configuration, can simultaneously carry on the high brightness spotlight and the wide range floodlight illumination, thus realizes the accident scene to the accident vehicle body body and the road surface simultaneously illuminates fills the light.
4. Stepless dimming technology
The lamp holder adopts the pole-free dimming technology to realize the pole-free transition of brightness from 0 to 100%, so that customers can adjust the luminance of the lamps according to the requirements of the environment on the spot, and solve the problem that the dimming of fixed gear cannot adjust the luminance at will.
5. Safety and humanized design

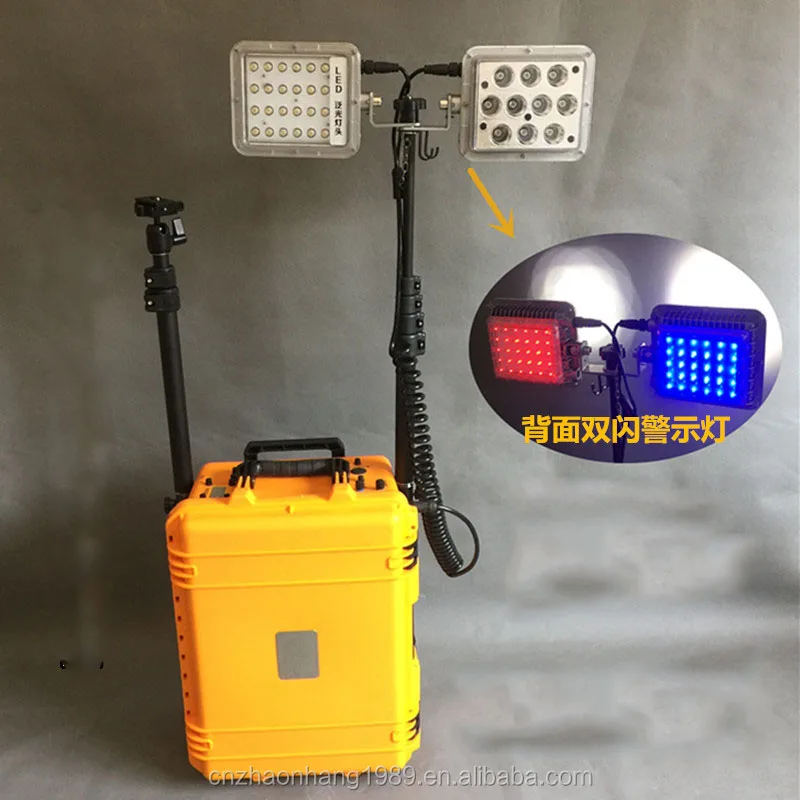

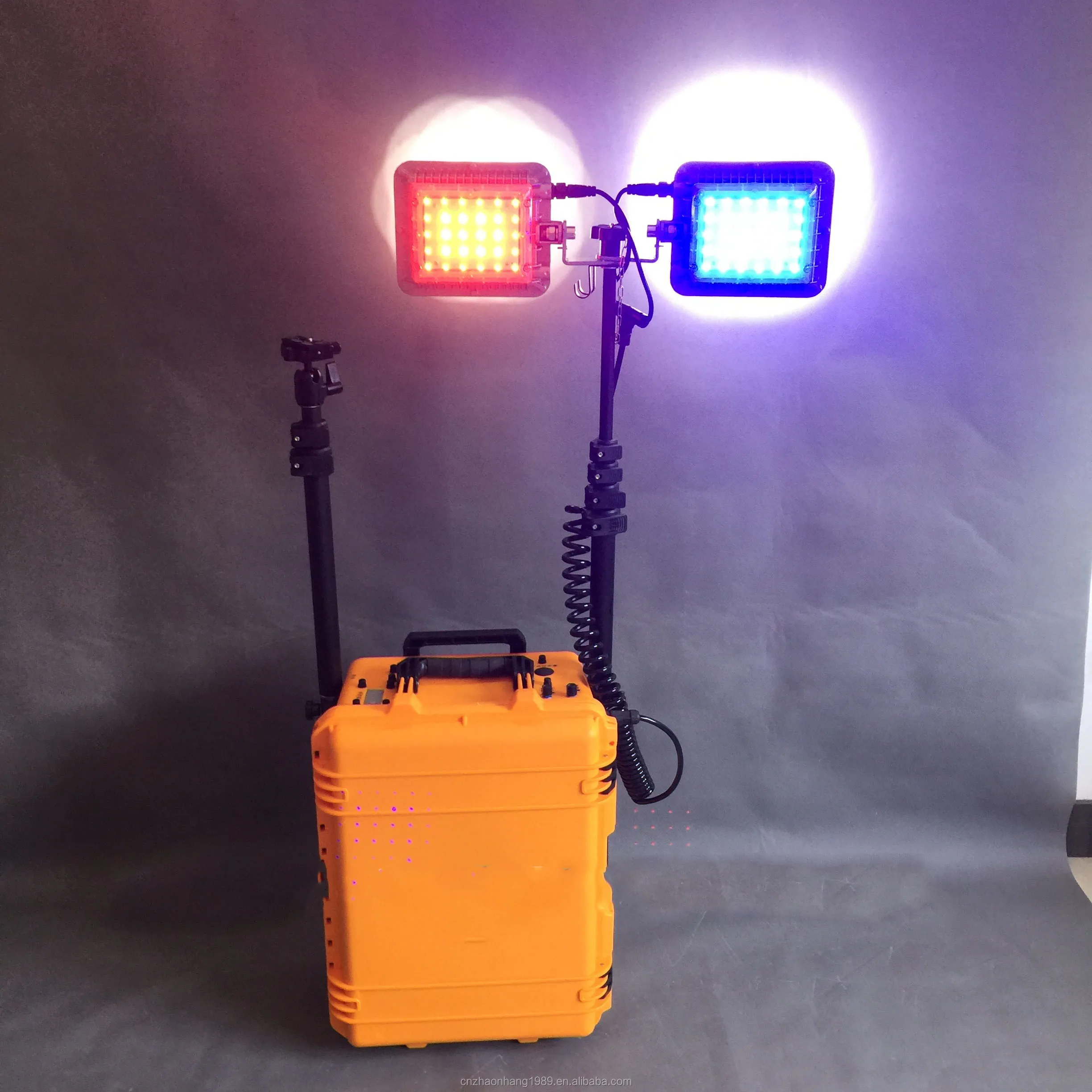

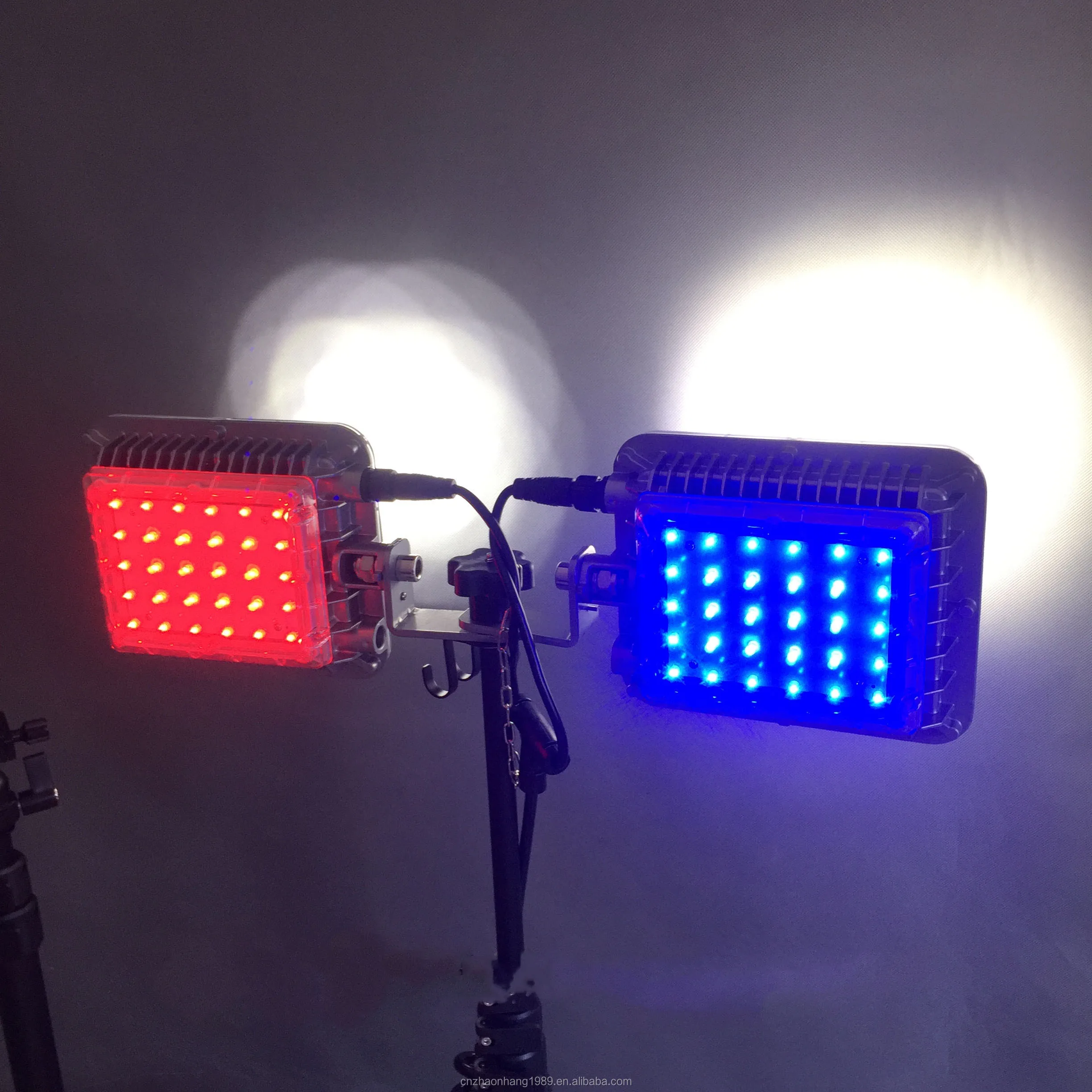

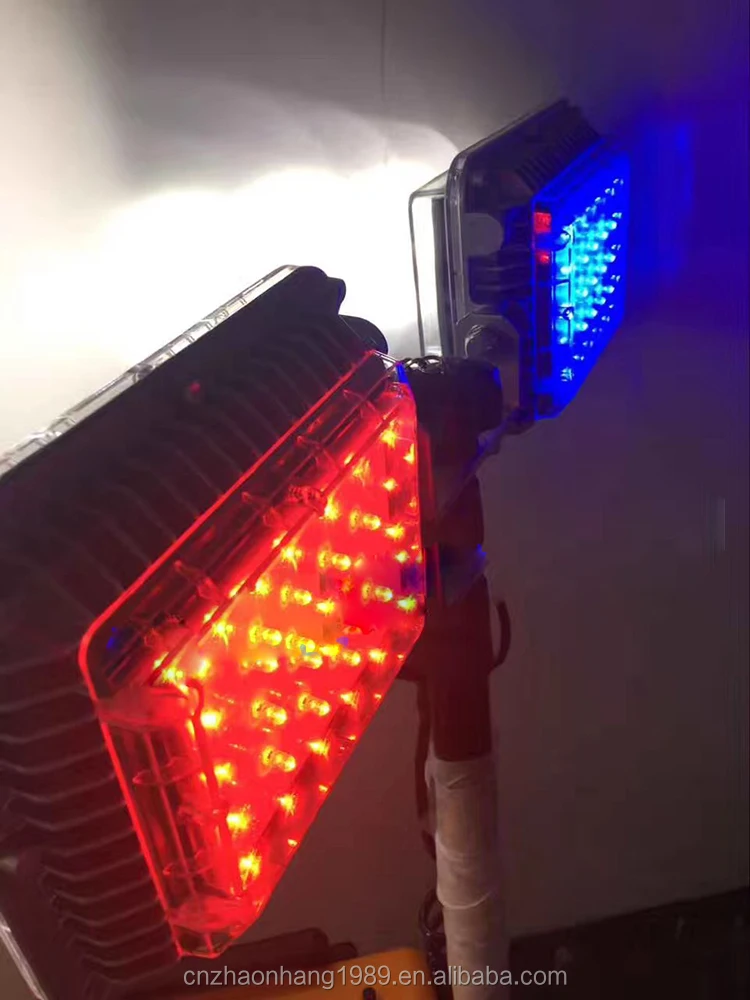

(1) red and blue flashing warning lights are set on the back of the lamp holder, which can effectively warn the traffic on the spot and maintain the safety of field workers.
(2) the light fixture box adopts bright yellow and is equipped with reflective stickers, which can effectively highlight the working lamps and the site and protect the safety of the site.
(3) the lamp is equipped with a special SLR camera holder, which can effectively replace the tripod of the field camera, reducing the number of tools carried and arranged by operators.

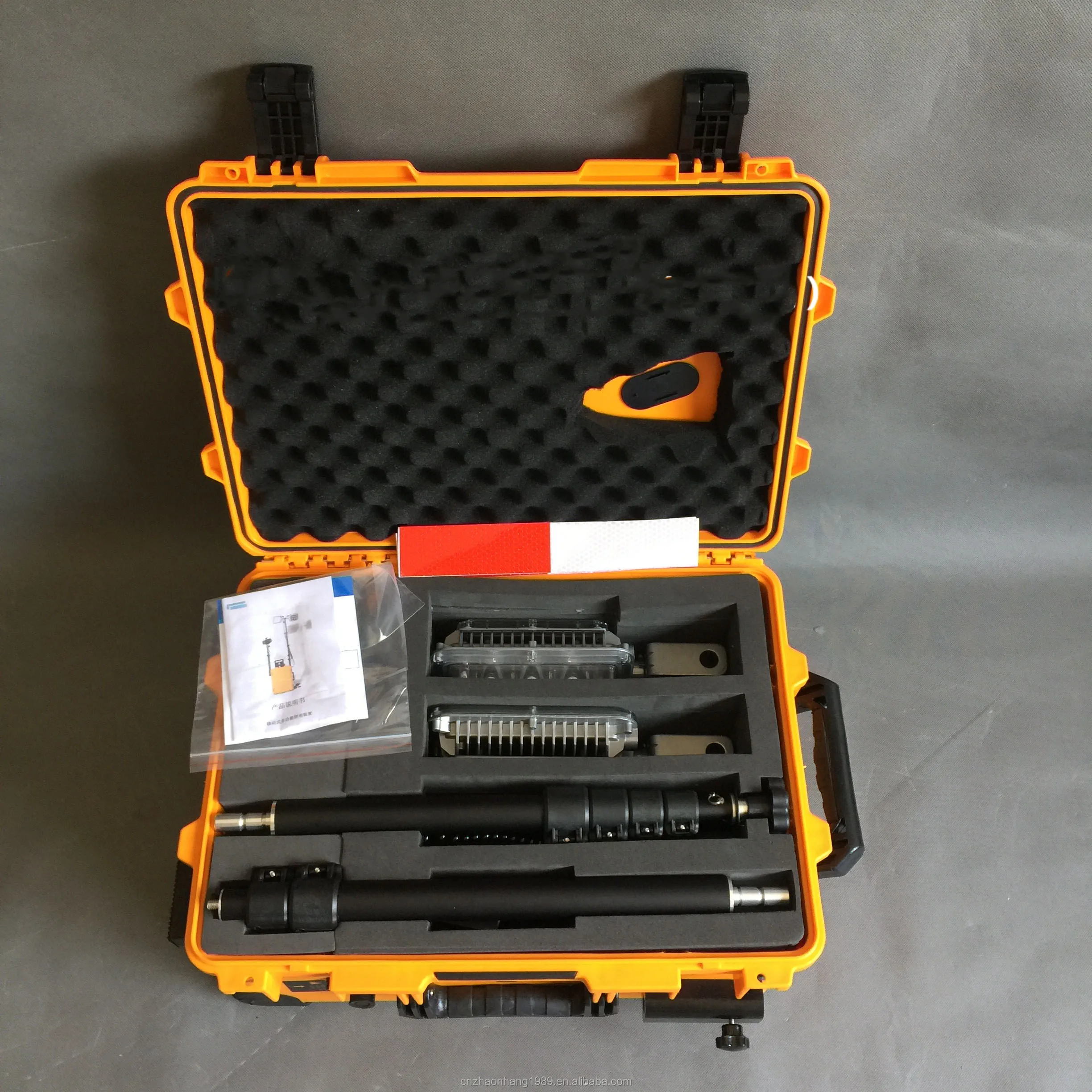

(4) a small unpacking light is set on the inside of the box body, which can effectively provide preliminary lighting in the dark site and facilitate the removal and placement of lamp holder and other components.
(5) lamps are equipped with power display function to remind users to timely charge; Equipped with on-board power cord, when the battery power is low, the on-board battery can be used for power supply, strong emergency performance.
6. Technical parameters:
Battery: rated voltage DC12V
Rated capacity: 24Ah;
Light source: type LED
Power: concentrating 25W, flooding 45W, warning 2W;
Light flux of light source 8500lm;
Discharge time: focusing and flooding light at the same time to the brightest continuous discharge time of 4h;
Warning light > for 7 days;

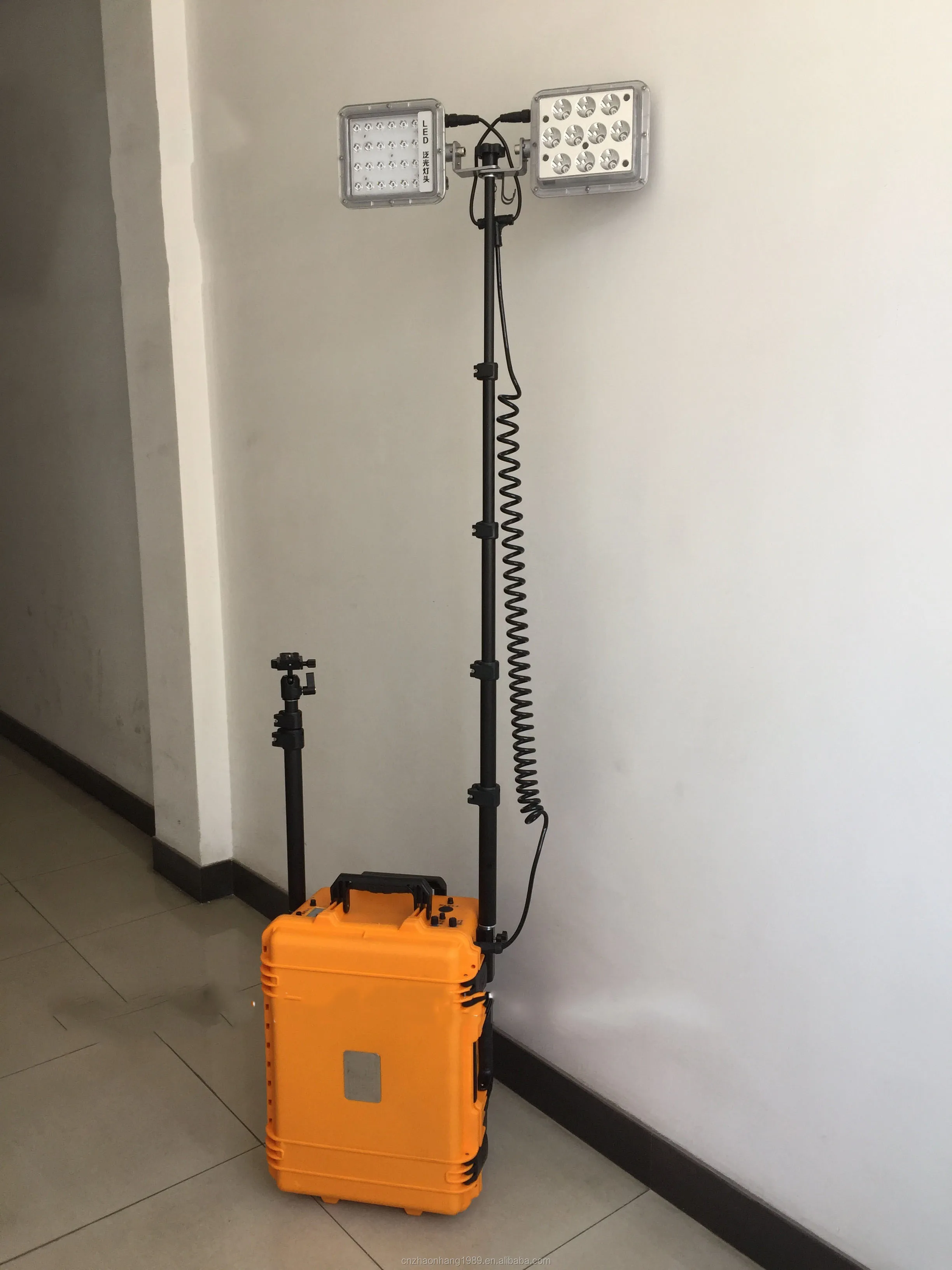

Maximum lifting height: lamp holder 1.9m, holder 1.5m;
Visual distance of warning light: 1km;
Battery charging time: ≤16h;
Enclosure protection lamp: IP65;
Box size: 416×282×570mm;
Effective irradiation range when the dual lamps are at their brightest: 30-50m (width 10m)
10m central illumination: focusing 1700lx, flooding 180lx;
