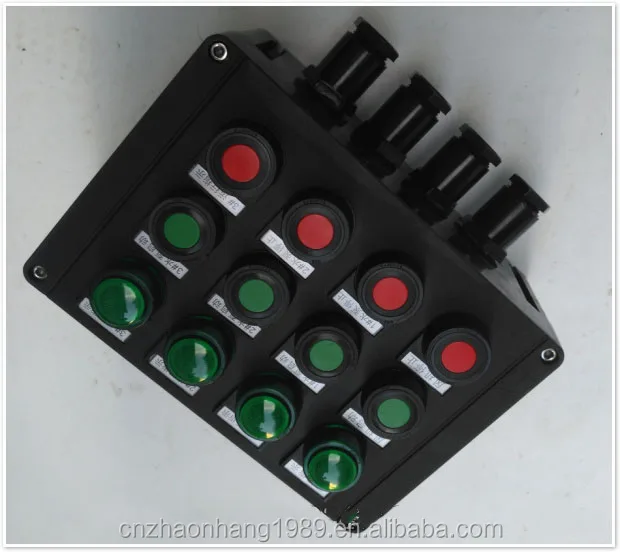

Explosion-proof and anticorrosive operation column Anti-corrosion button box Anti-corrosion local control box Button box Item NO.: 335993

1. Execution standard: gb3836.1-2010 gb3836.2-2010
2. Flameproof mark: Exed IIC T4
3. Category of use: ac-3 ac-4
4. Rated voltage: ac380/220v 50Hz
5. Rated current: 10A
6. Protection grade: IP65
7. Corrosion grade: WF2
8, introduce specifications: G 3/4 ( 11-14 mm)

Scope of application

Area 1.1 and area 2 dangerous places.

2. A and B Ⅱ Ⅱ, Ⅱ C T1 - T6 group explosive gas or steam environment;

3. Indoor and outdoor (IP54, IP65* when ordering).

BZC series explosion-proof and anticorrosive operation column features:

1. Increased safety type shell, with 8050 series explosion-proof components inside
2. The shell is pressed and molded by polycarbon resin, with beautiful appearance, corrosion resistance and other excellent properties
3, adopt curved sealing structure design, with good waterproof and dustproof performance
4, exposed fasteners are made of stainless steel, easy for users to install and maintain
