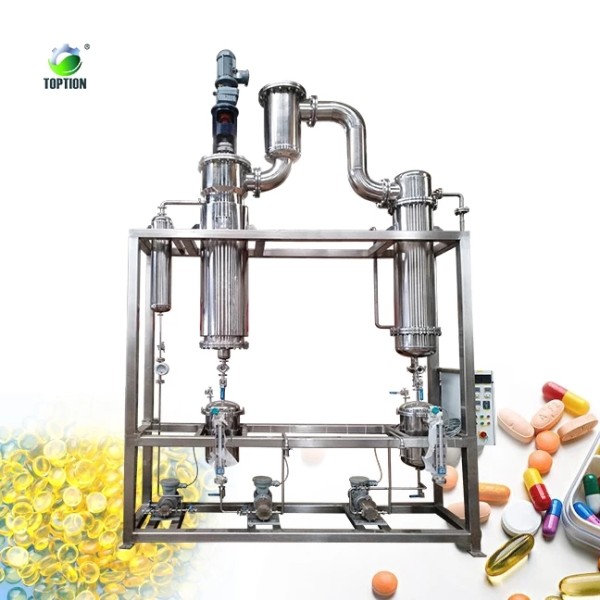

Home>Explosion-proof electrical apparatus>high quality 3l/h-15l/h wiped film evaporator power saving wiped film evaporator

high quality 3l/h-15l/h wiped film evaporator power saving wiped film evaporator Item NO.: 1943882

Write a Review

US$ 45000.00

Quantity: Stock ( 10 )

Estimate Shipping Cost

high quality 3l/h-15l/h wiped film evaporator power saving wiped film evaporator

Product Name	high quality 3l/h-15l/h wiped film evaporator power saving wiped film evaporator
Item NO.	1943882
Weight	10 kg = 22.0462 lb = 352.7396 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-21

Product Description

Product parameters

Main Machine	Model	PWFS-0.1C wiped film evaporator
	Feed tank	15L jacketed tank ,Top have 2 mirrors, Lower with insulation ball valve
	Charging method	Gear pump
		3-15L/H
		200W motor, electronic speed regulation
	Main evaporator	Evaporation area 0.1m2
		Film formation method: scraper
		Material: 316L
		Mechanical seal(optional magnetic seal)
		Film-forming machine: 370W Mechanical infinitely variable speed, 200 ~ 1000 rotations per minute
	Cold trop	1m2 tube bundle type
	Heavier output	Gear pump
		3-15L/H
		200W motor, electronic speed regulation
	Lighter output	Gear pump
		3-15L/H
		200W motor, electronic speed regulation
	pipes	jacketed insulation pipeline
	Frame	SS 304 stainless steel
	other equipment	1. vacuum system(optional)
	other equipment	2. heater/chiller(optional)
