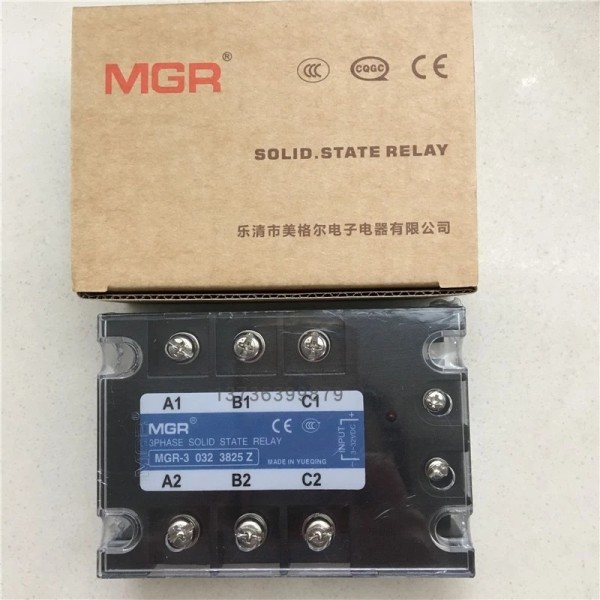

Three phase solid state relay MGR-3 4810/10A/25A/40A 80A 60A100A 380V Item NO.: 1949294

Outline and installation dimensions:

DC input model MGR-3D3840 MGR-3D3860 MGR-3D38100 MGR-3D38150 MGR-3D38200

AC input model MGR-3A3840 MGR-3A3860 MGR-A38100 MGR-3A38150 MGR-3A38200

Input specification

Control voltage range (VDC)

direct 3-32VDC communication 80-280VAC

Input current (at Vmax)

40mA 35mA

Ensure that the voltage is turned on

4VDC 90VAC

Ensure shutdown voltage

1.5VDC 50VAC

Output specification

Output voltage range

24-480V

Peak voltage

1000V

load current

40A 60A 100A 150A 200V

Leakage current under off state

8mArms

Saturation pressure drop in on state

1.5V

General characteristics

Dimension l-w-h (mm)

105L × 74W × 33H

Weight (approx.)

500g

Input / output insulation voltage

4000Vrms

Insulation voltage between output and input terminal and housing

2500Vrms

working temperature

-20℃～80℃

authentication

CE

matters needing attention

1. If the connected load will produce high surge current (such as lamp load), be sure to pay attention to whether the solid-state relay can withstand the surge current value. (above 200A is split)

2. The surge current value of solid-state relay listed in this manual refers to the peak value of non important surge current. Generally, half of the peak value of non important surge current is taken as the standard value. If the surge current flowing through solid-state relay exceeds this value, a fast fuse must be connected in series at the output end to protect the solid-state relay from damage

3. The transient voltage of the solid-state relay listed in this manual refers to the non important blocking voltage peak. If the transient voltage applied to the output end of the solid-state relay exceeds this value, a varistor must be connected in parallel at the output end of the solid-state relay to protect the solid-state relay from damage. The recommended protective voltage value of the varistor is 750V
