Rice seedling bed silt machine Agricultural soil crusher for raising seedlings in rice greenhouse Item NO.: 1949264

Small soil crusher (commonly known as silt machine) is a popular seedling raising silt machine for farmers with high efficiency and low price. It is the choice of small agricultural machinery merchants.

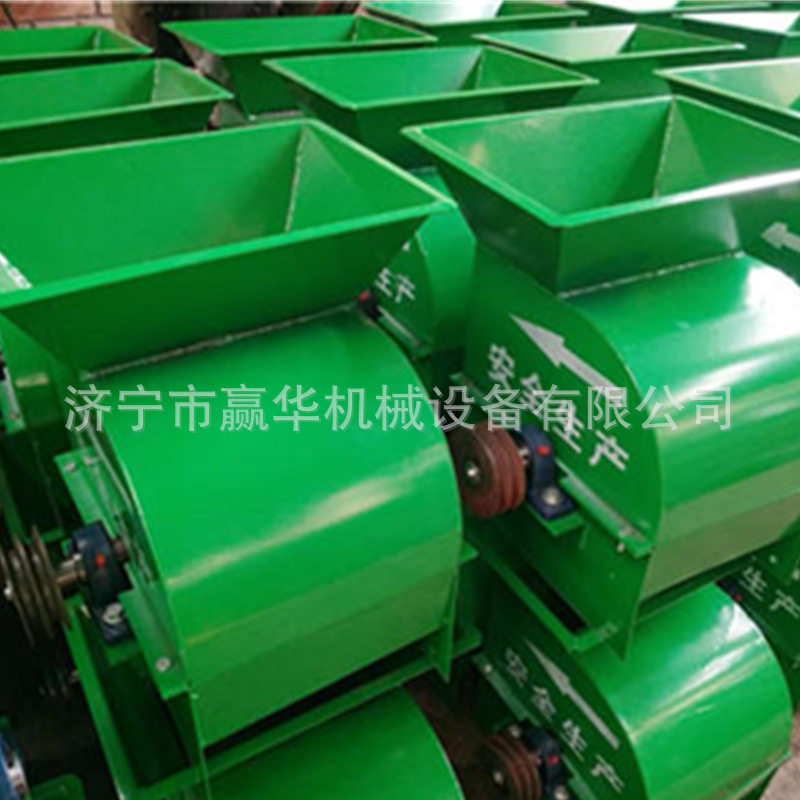

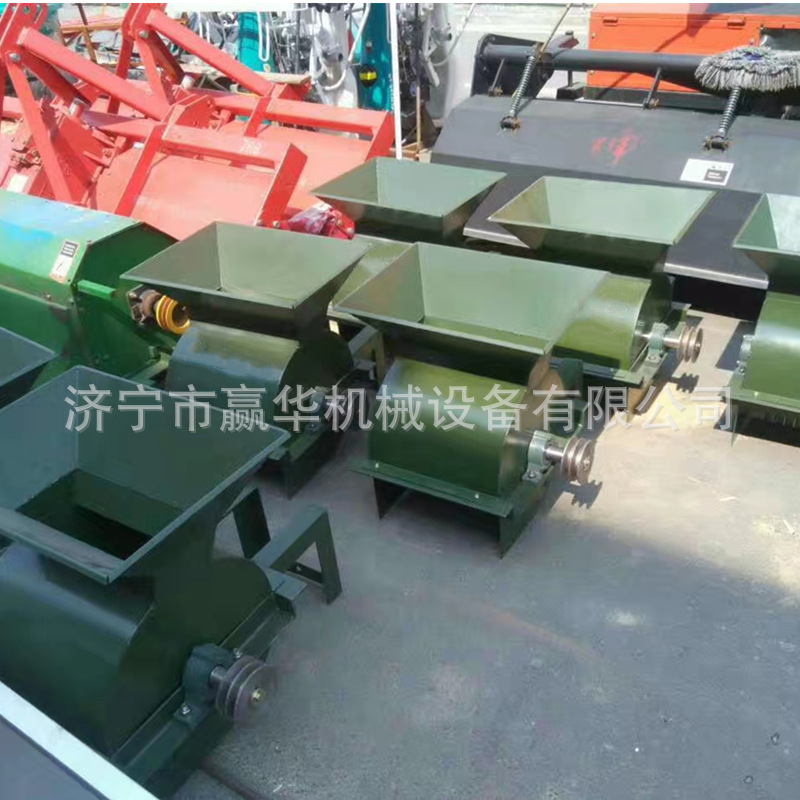

There are mainly two types of small-sized silt machines produced by our factory: one is a silt machine that can be driven by a belt driven by a motor or walking tractor. There are 30 hammer pieces inside the silt machine. Generally, the motor 220V voltage of 2.2kW can drive the machine to operate normally. Or use a small walking tractor. A diesel engine with a general power of 6.5 hp can drive the silt machine to work normally. The crushed soil particles are similar to millet particles.

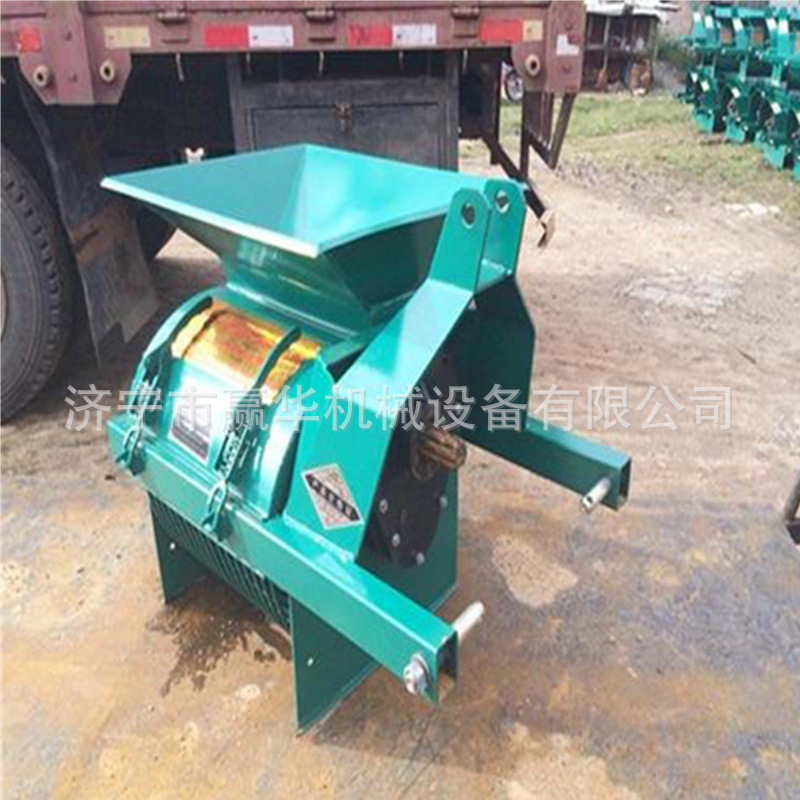

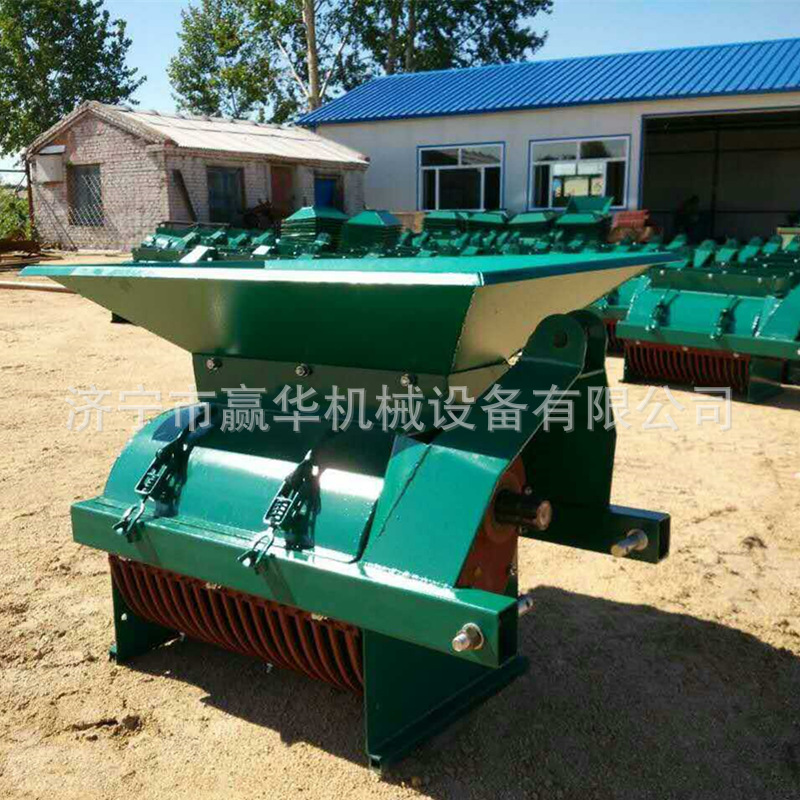

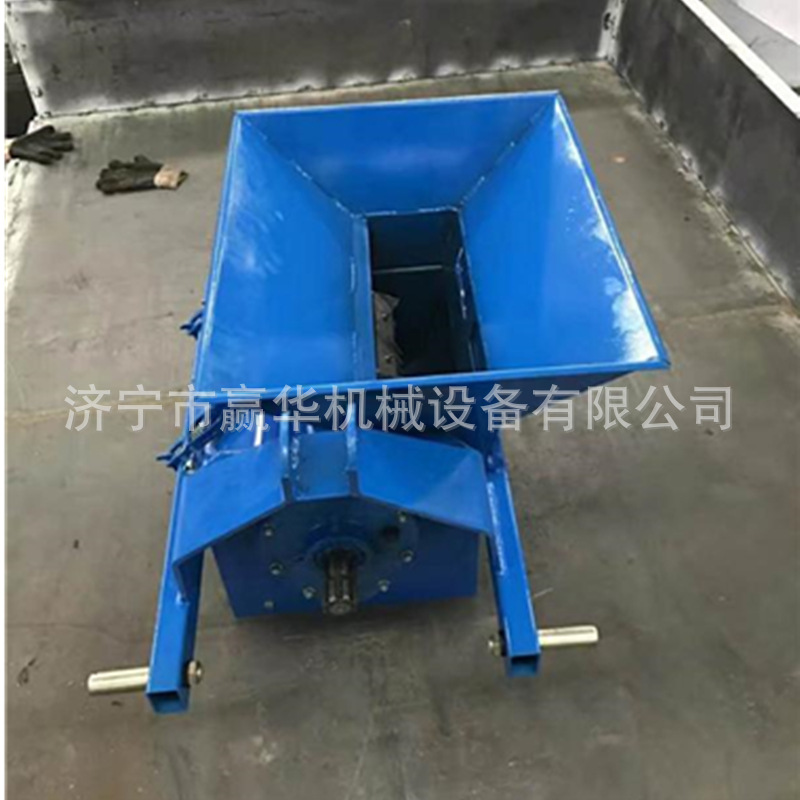

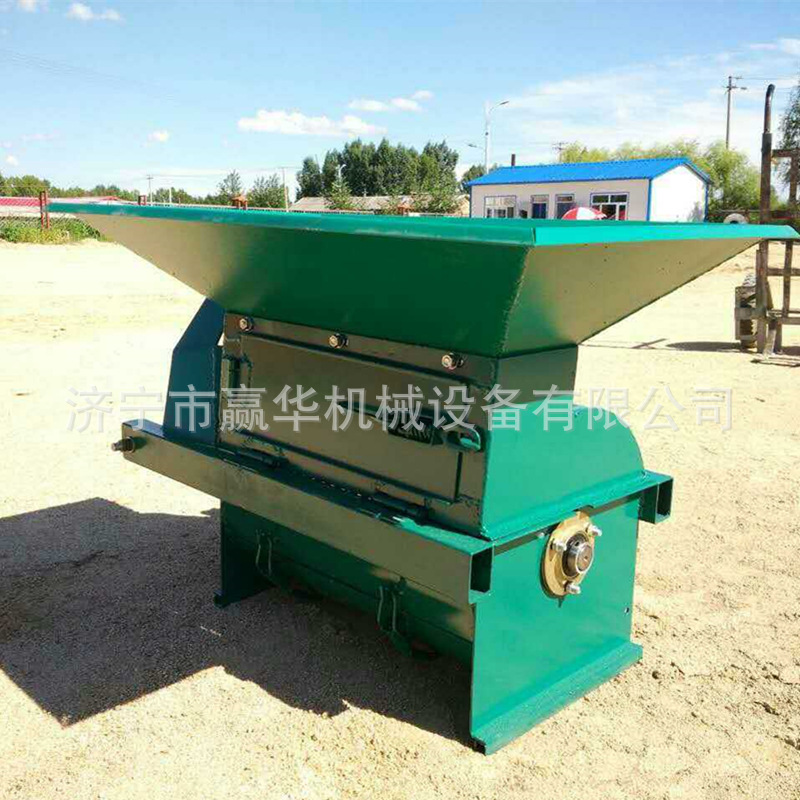

The other is a shaft driven silt machine matched with a four-wheel tractor. Generally, the power is more than 12 hp. The silt machine is connected through a universal joint, and the power output shaft drives the gear to the inside of the machine. The soil is crushed through 72 internal hammer pieces. It has higher efficiency and finer silt, which is the choice of many farmers.

The silt machine produced by our factory has good quality and low price. The key is to use it. There are no vulnerable parts inside the machine. As long as you have a motor, walking tractor or four-wheel tractor at home, choose our silt machine, and the quality is guaranteed!

Rice seedling raising silt machine in greenhouse / sowing MULCHER / shaft drive silt machine

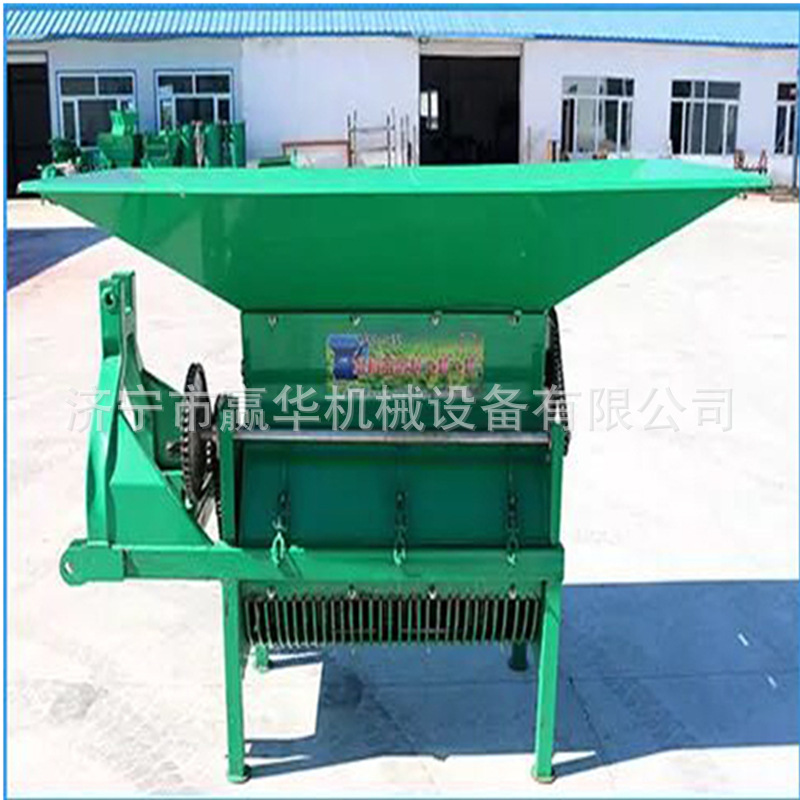

There are two types: belt drive and gearbox drive. The belt rotating silt machine can be used with small horsepower four wheels and motor as power. The gearbox driven silt machine is used with the machine with transmission shaft and output shaft.

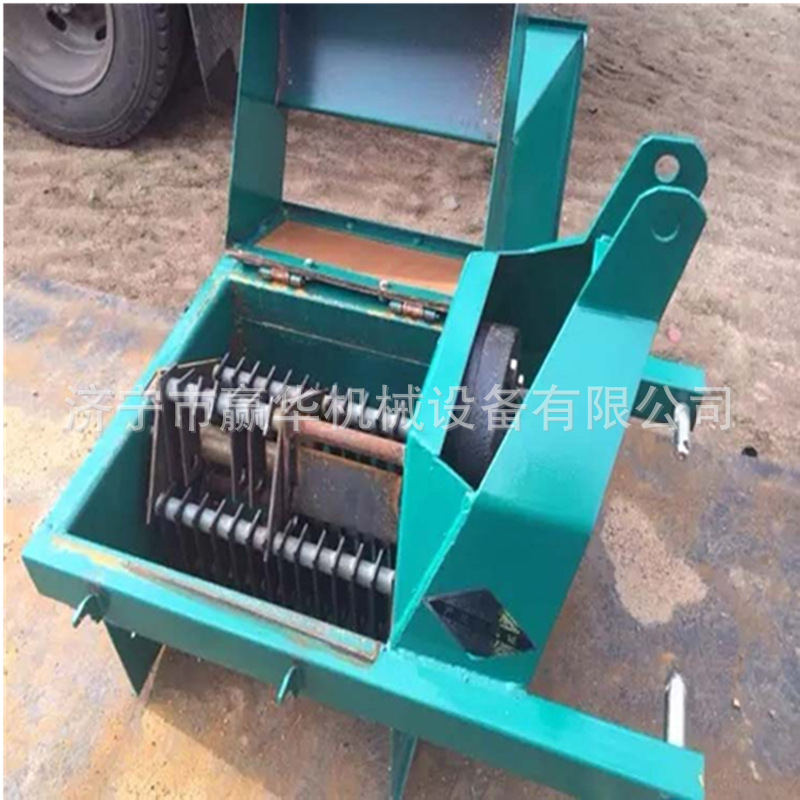

1. Supporting transmission with hand: the pulverizer is composed of body assembly, belt pulley, belt and connecting screw. Firstly, the belt pulley of the pulverizer is driven by the hand engine, so that the flying hammer in the pulverizer rotates at the speed of 2200 rpm to crush the soil block. Characteristics: fast speed and high efficiency.

2. 2. With other supporting transmission: the silt machine is composed of body assembly, suspension assembly and connecting screws. The fly hammer of the machine is driven by the power output of the main machine to crush the soil at the speed of 1900 rpm to achieve the effect of silt.

Spindle speed: hand support: 2200 rpm

Matching: 1900 rpm

Machine weight: walking support: 46kg

Matching: 66kg

Working efficiency: 15 m3 / h

Advantages of silt machine:

Fine silt, no screen, convenient, flexible, economical, but also improves the work efficiency, especially the material selection of the flying hammer, especially the 65 manganese steel plate of the machine. The flying hammer can be used on all sides and has a long service life, which is very popular with the majority of farmers. Learn from and absorb the advanced silt technology at home and abroad, high efficiency, low power consumption, low noise and other characteristics, a powerful mechanical machine for farmers to plant rice.
