R Series Explosion-proof Rotary Vacuum Evaporator Stillation Apparatus

R Series Explosion-proof Rotary Vacuum Evaporator Stillation Apparatus Item NO.: 1942168

Write a Review
US$ 2900.00
Quantity

Copy and share this link on social network or send it to your friends

Copy
  • R Series Explosion-proof Rotary Vacuum Evaporator Stillation Apparatus
Product Name R Series Explosion-proof Rotary Vacuum Evaporator Stillation Apparatus
Item NO. 1942168
Weight 10 kg = 22.0462 lb = 352.7396 oz
Category Explosion-proof electrical apparatus
Creation Time 2022-04-18

Product Description

R Series Explosion-proof Rotary Vacuum Evaporator Stillation Apparatus

A rotary evaporator (or rotavap/rotovap ) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. When referenced in the chemistry research literature, description of the use of this technique and equipment may include the phrase "rotary evaporator", through use is often rather signaled by other languages (eg, "the sample was evaporated under reduced pressure").

Rotary evaporators are also used in molecular cooking for the preparation of distillates and extracts.

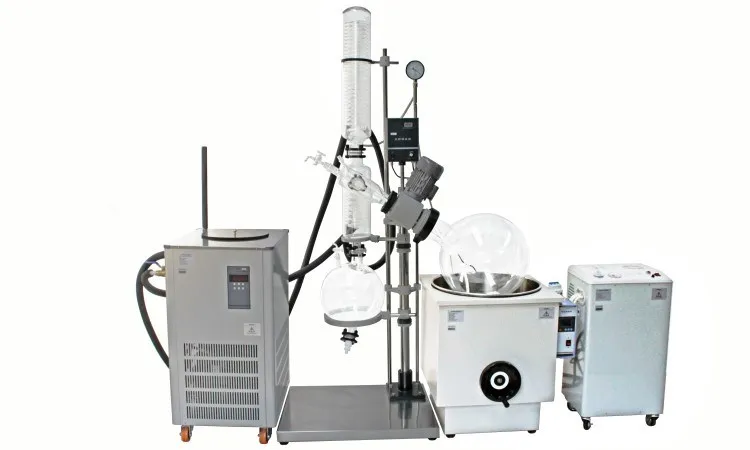

50L rotary evaporator with vacuum pump
MODEL
RE-1002
RE-2002
RE-5002
Evaporating Flask(L)
10
20
50
Receiving Flask(L)
5
10
20
Rotating Motor(W)
180
250
Rotating Speed(R/Min)
0-120
0-90
Water(Oil) Bath Power
3
5
9
Evaporation Speed(L/H, H₂O)
>3
>5
>9
Condenser Cooling Surface(㎡)
0.57
1
1.5
Condenser
Vertical Double Condenser
Vacuum Degree(Mpa)
0.098
Sealing Mode
PTFE Sealing System
Static Temperature Control Range(℃)
0-99(250)
Temp. Resolution(℃)
±1
Voltage
220V 50hz
220/380V 50hz
Note
Customized configuration is available

Main Features

- Solvent-resistant PTFE and Viton gaskets ensuring long time operation.
- Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
- Easy, straight-forward visual operation with digital speed and temperature display.
- PID temperature controller ensures accurate temperature control is maintained.
Detailed Images

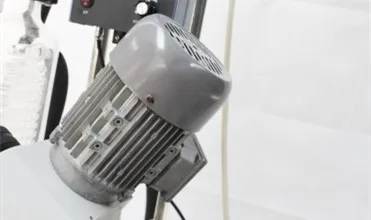

Motor Features

* International copper wire
* Continuous operation and stable

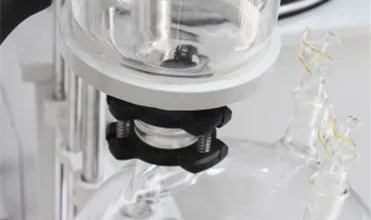

Glass Parts


* GG-17(3.3) high borosilicate glass
* Temp. Range -80℃ to 380℃
* High acid and alkali resistant

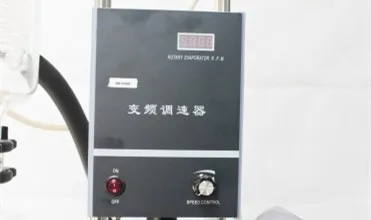

Speed Controller with Inverter


* Digital Display
* Manual Control
* High precision
