Production wsp-7 Jet machine Wet concrete shotcreting machine Dedusting and shotcreting machine Item NO.: 1941540

Please contact customer service

Price is not the real price

Bargaining is necessary

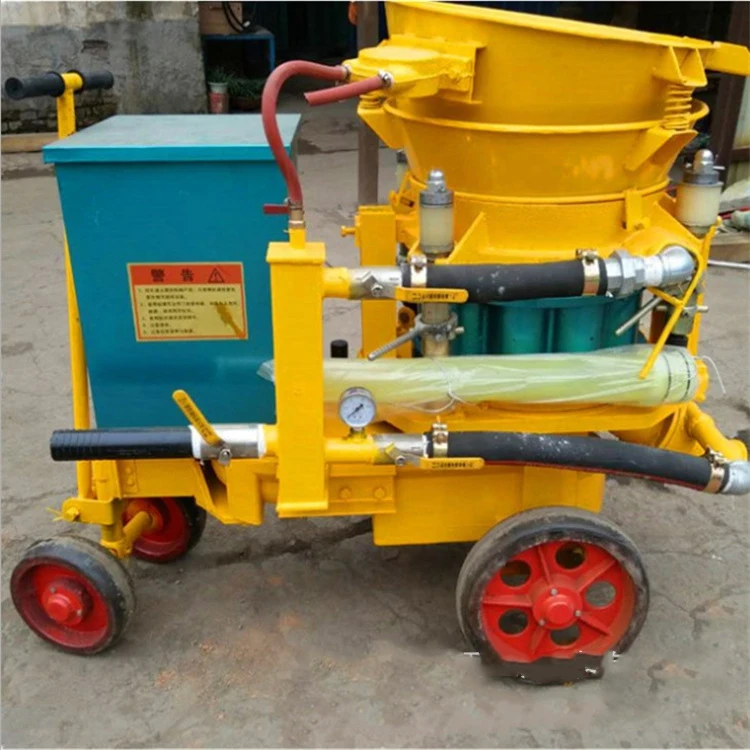

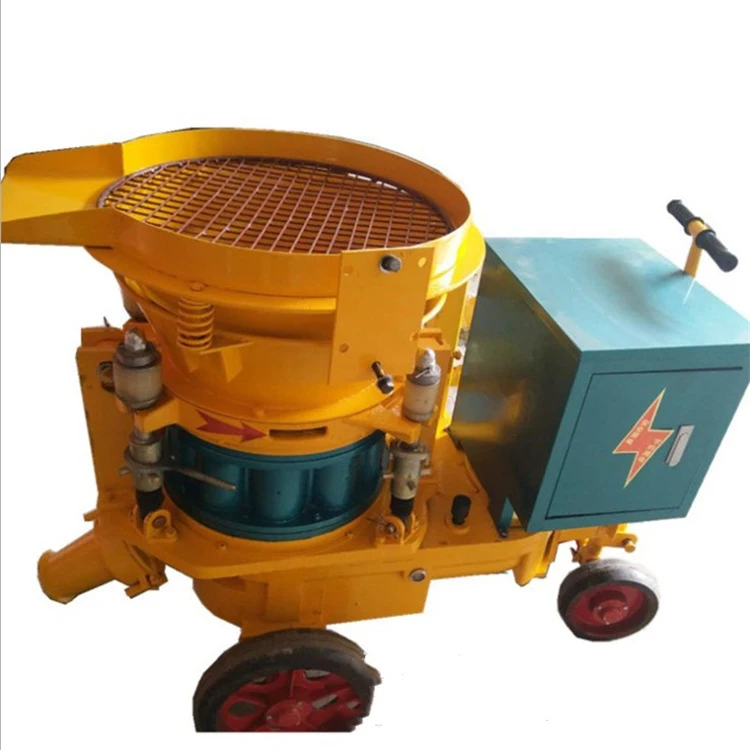

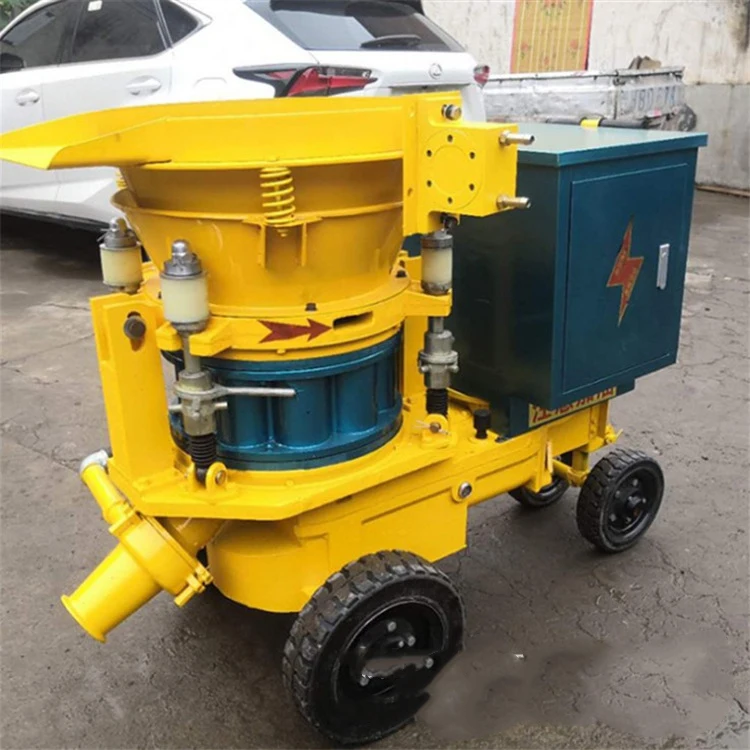

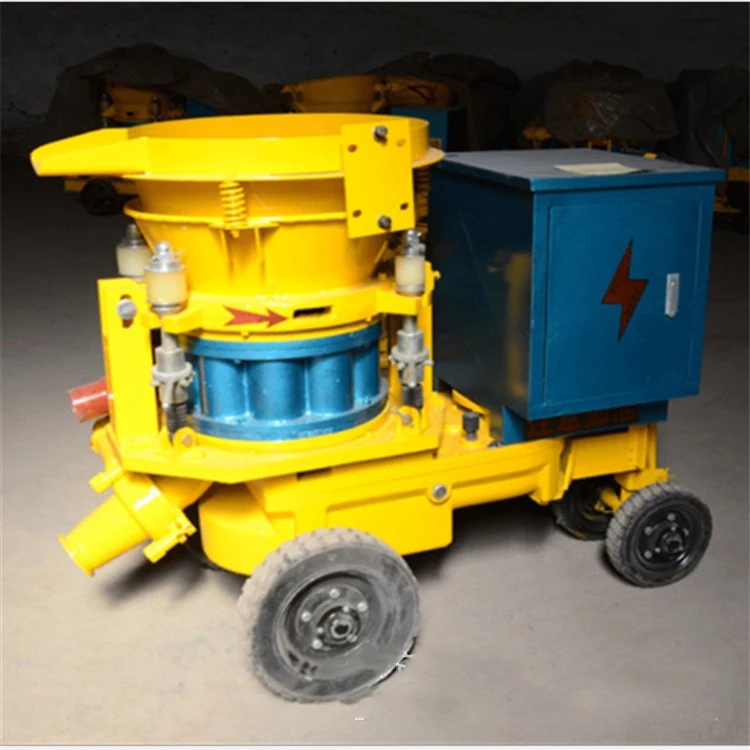

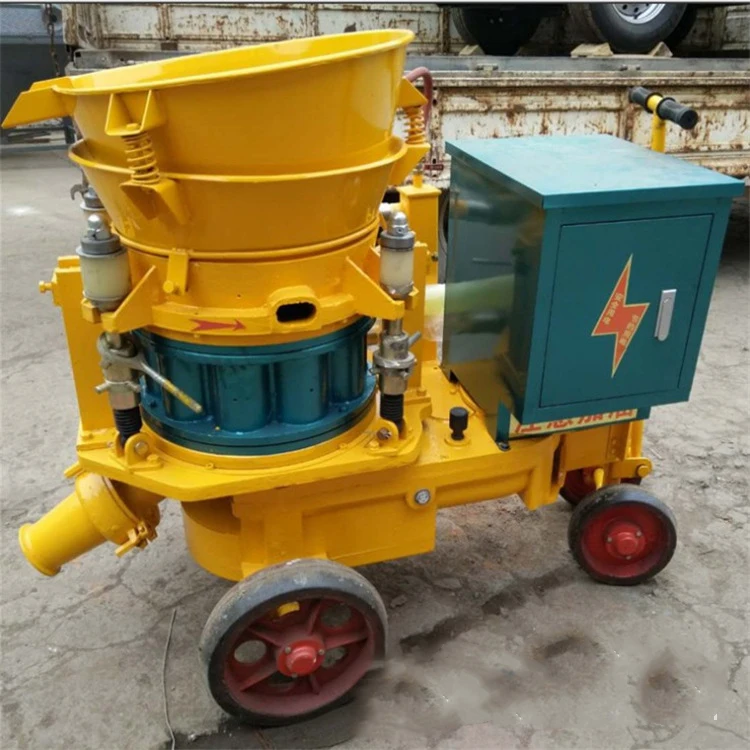

Dedusting and shotcreting machine
Shotcreting is the use of compressed air CM01, will be a certain proportion of concrete mixture transported through the pipeline and high-speed spray to the surface of the shotcrete set hardening, thus forming a concrete support layer. In recent years, with its simple technology, unique effect, economic cost and fast construction speed, shotcrete technology has been widely used in construction, railway tunnel construction, mine shaft construction, slope reinforcement and other fields.
Shotcreting machine series products: pz-5 shotcreting machine; mine rail wheel shotcreting machine (explosion-proof type); pz-6 shotcreting machine (explosion-proof shotcreting machine); pz-6f shotcreting machine; pz-5b mine explosion-proof shotcreting machine; wet shotcreting machine; pz-7 shotcreting machine; wsp-7 wet concrete shotcreting machine; wsp-5 wet concrete shotcreting machine and other types of shotcreting machines.
Technical characteristics of PZ series concrete sprayer
Straight through rotor type non binding material cavity, smooth discharging, high efficiency and time saving.
Low pressure, low-speed swirling air, thin flow transportation, material flow uniform, stable, spray layer strength is high.
Four point elastic compensation clamping, good sealing effect, less dust near the machine, long service life of vulnerable parts.
Parameters of dedusting and shotcreting machine
Production capacity (M / h) 6-7
Motor power (kw) 1.5
Conveying distance (horizontal / height) (m) 200 / 30
Flow (M / h) 360
Aggregate diameter (mm) ≤ 20
Total pressure (MPA) 1.5
Inner diameter of feeding pipe (mm) φ 51
Rotor speed (R / min) 11
Rated working pressure (MPA) 0.6-0.8
Main motor power (kw) 7.5
Air consumption (M / h) ≤ 8
Main motor speed (R / min) 960
Loading height (m) 1.1
Voltage class (V) 380
Comprehensive rebound ≤ 20%
Boundary dimension (mm) 1785 × 900 × 1160
Dust concentration beside the machine (mg / M) ≤ 15
Operating weight (kg) 900
