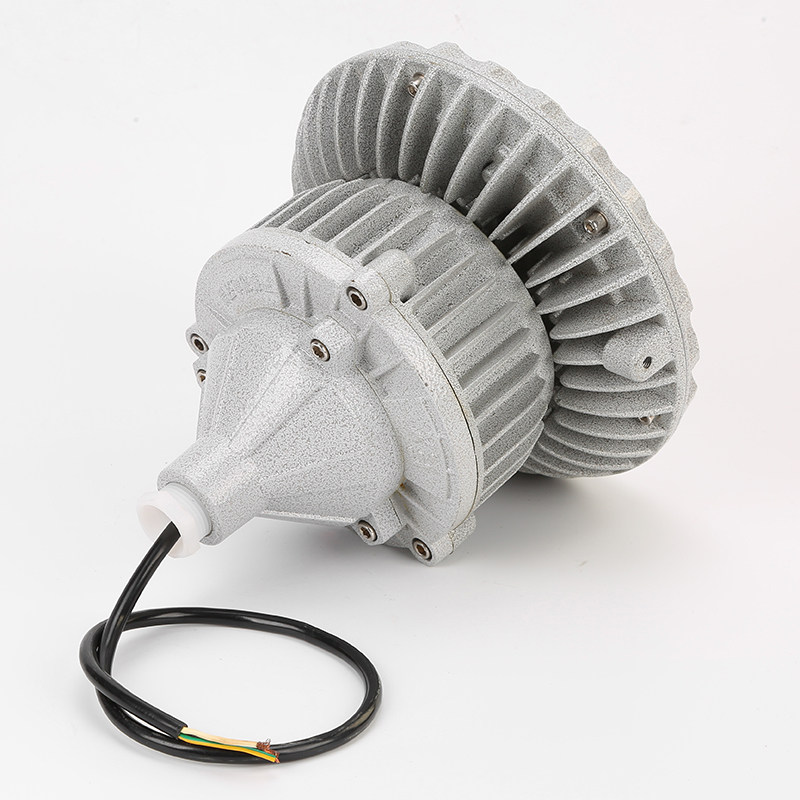

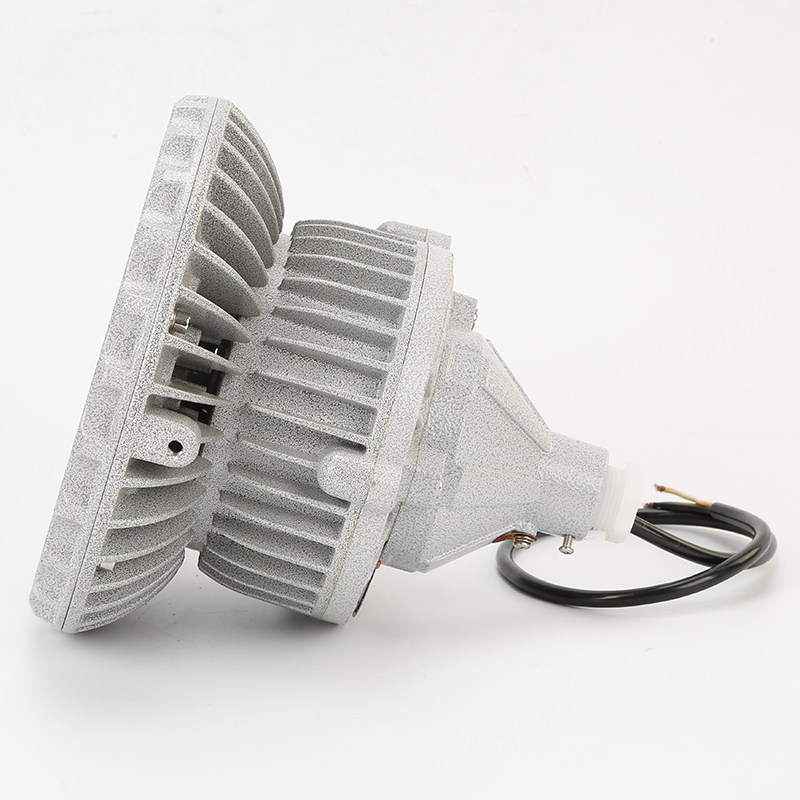

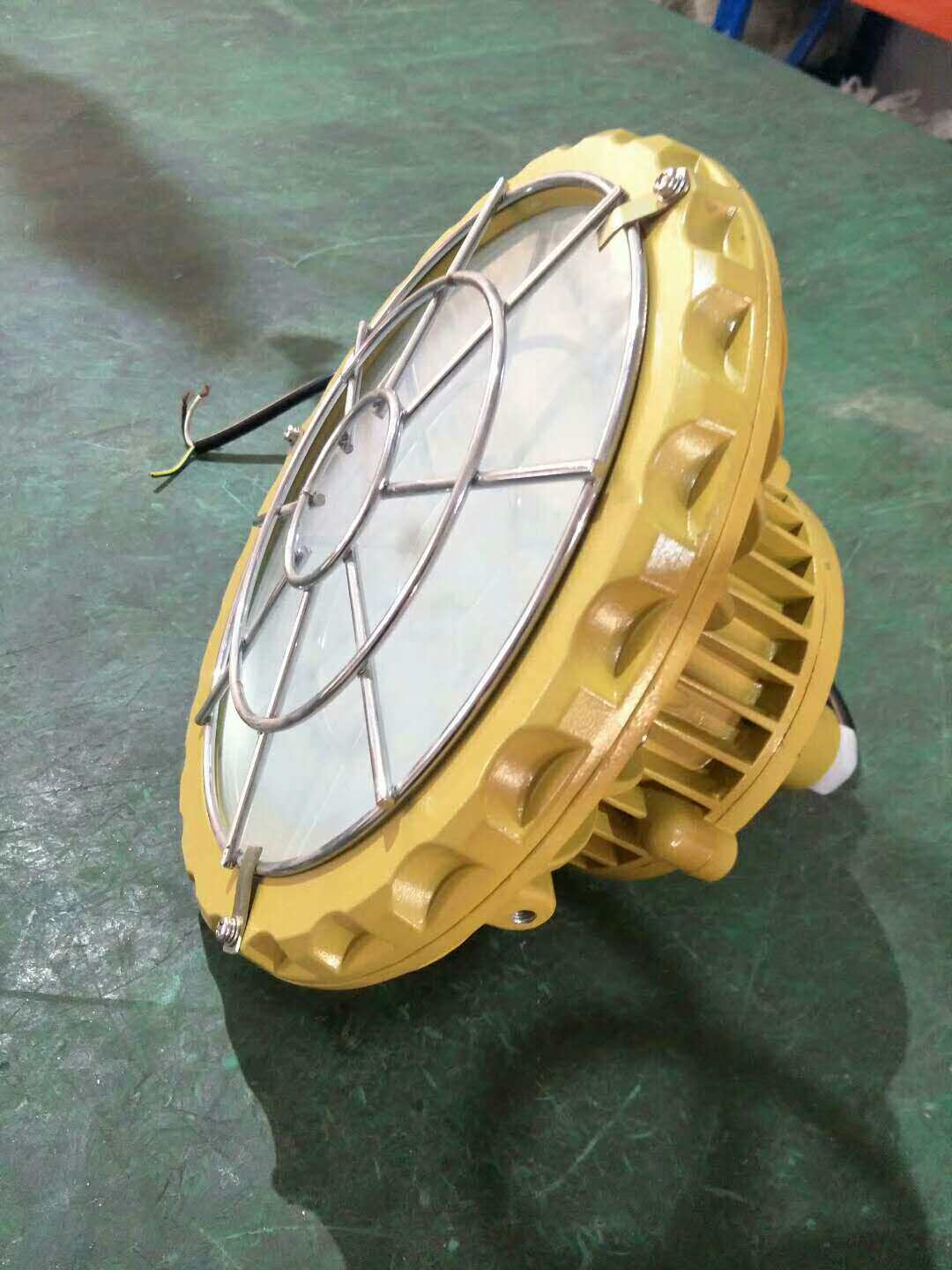

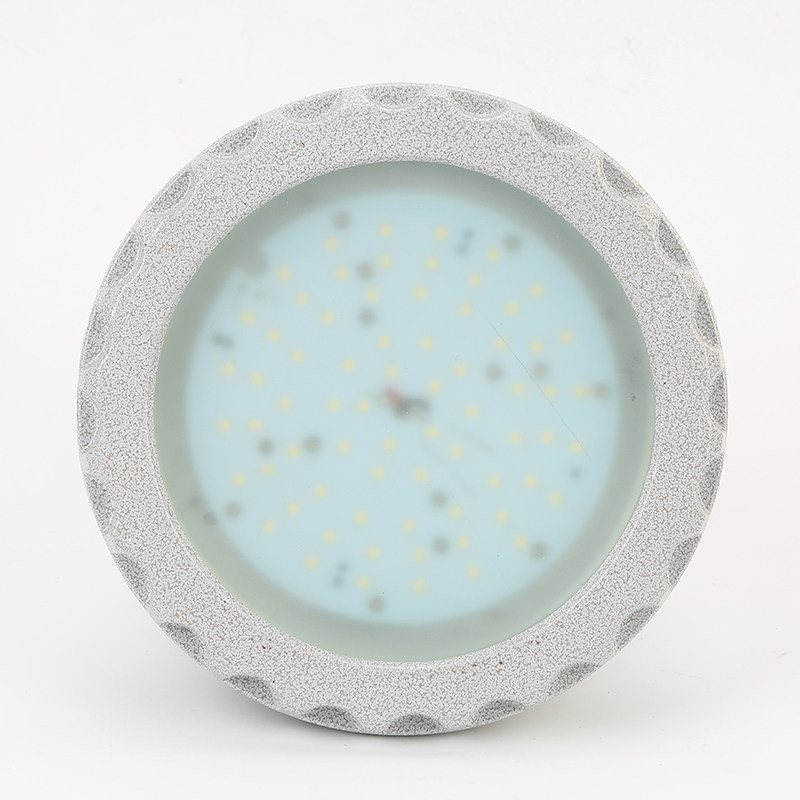

New explosion-proof lamp LED Chemical plant warehouse tunnel gas station 50W Floodlight Flameproof IIC type Item NO.: 1944528

Scope of application

It is suitable for general lighting and working lighting in Sinopec mining, oil refining, chemical industry, military industry and other dangerous environments, offshore oil platforms, oil tankers and other places;

It is applicable to energy-saving transformation projects and places with difficult repair and replacement;

Suitable for wet places with high protection requirements;

Applicable to zone 1 and zone 2 places in explosive gas environment;

Applicable to class IIa, IIb and IIC explosive gas environment;

For T1

Technical parameters

Executive Standards: gb3836.1, gb3836.2

Explosion proof sign: Exd II CT6 GB

Rated voltage: AC220V 50Hz (please specify if there are special requirements)

Protection grade: IP66

Corrosion protection grade: WF1 "WF2

Imported device: G3 / 4 "imported specification, suitable for Ф 10mm- Ф 14mm cable

Wiring terminal: < 2.5m ㎡ conductor is firmly connected

Installation method: X: ceiling test, B: wall test, G: suspender test, F: flange test, H: guardrail test

LED light source: 20W, 30W, 50W, 70W

-T6 temperature group.
