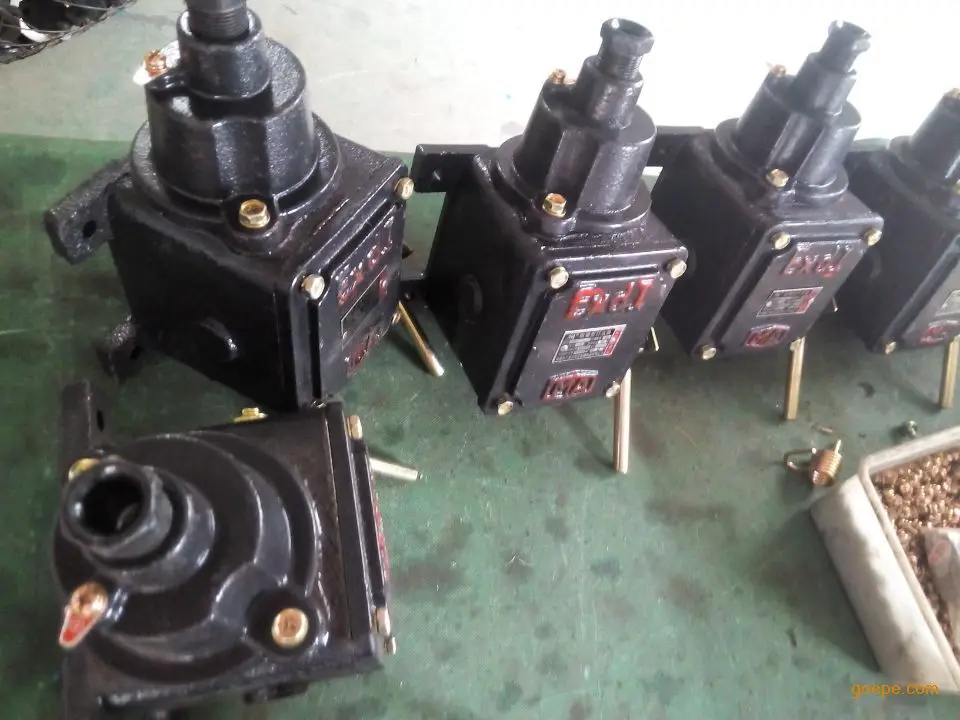

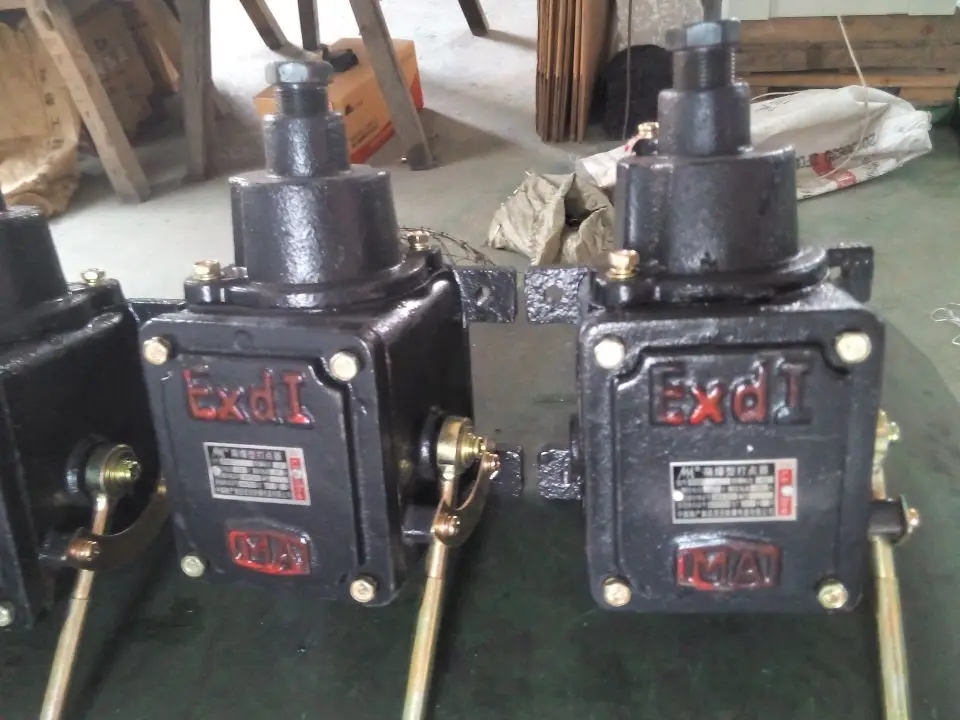

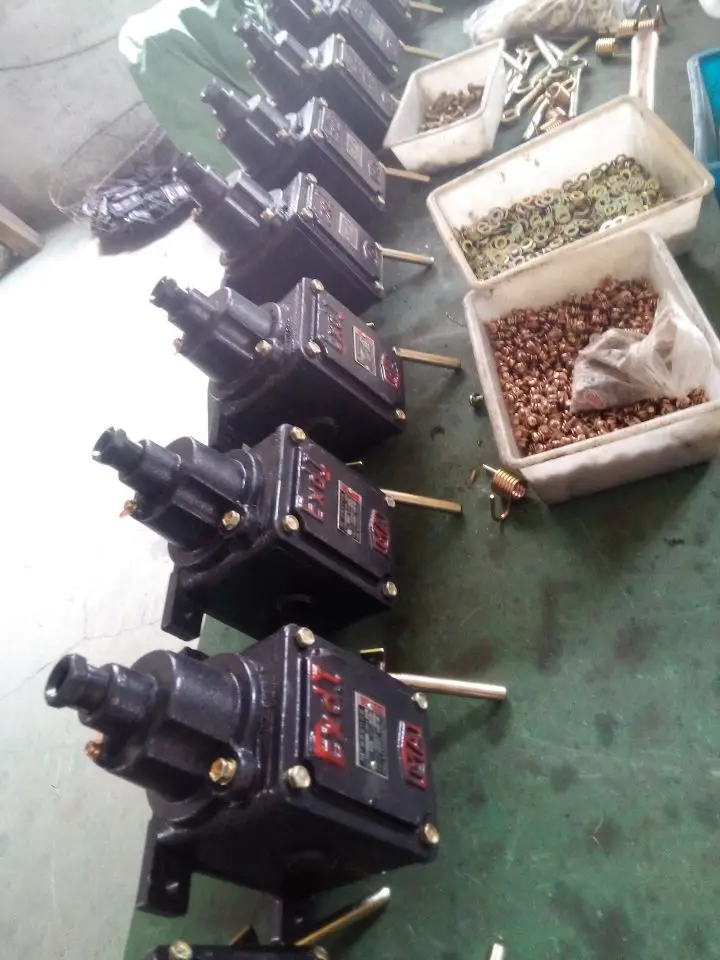

Mine flameproof explosion-proof dozer 63S1 bax-4.5/127a pull fuse switch mine dozer Item NO.: 335531

63 s1 this series pull device (la) is suitable for the coal mine and its surrounding medium such as methane and coal dust in the environment of explosive mixture gas, in ac 50 hz, voltage 127 v power supply circuit, a low voltage switch control explosion-proof electric bell and other small audio equipment, lighting signal device connected and breaking, also can be used as signal dotting device of mine hoisting system.

Mine dot is also known as pull point, and pull signal switch belongs to the same function, replace pull signal switch, suitable for underground coal mine, as low-voltage switch control explosion-proof bell and other small audio equipment, lighting signal device

Summary of structure

The signal switch is mainly composed of components such as flameproof housing, upper cover, connection cavity, terminal column, dynamic and static contact head, operating handle, etc. When working, the operating handle drives the shaft in the main cavity, making the moving contact head contact with the static contact head, forming a circuit and completing the connecting action. When the external force is removed, the spring makes it return to the disconnected position.

Main technical parameters
Model: 63 s1
Name: dot
Rated voltage: 127V
Rated current: 4.5A
Contact life: 1 million times
Quality: 5.2 kg

Rated frequency: 50Hz

Maximum cable od (mm) : 12.5
Overall dimension L×W×H (mm) : 250×120×135
