Home>Explosion-proof electrical apparatus>Laboratory All-steel fume hood/PP fume hood fume hood/exhaust detoxification laboratory acid and alkali resistance fume hood

Laboratory All-steel fume hood/PP fume hood fume hood/exhaust detoxification laboratory acid and alkali resistance fume hood Item NO.: 1943293

Write a Review

US$ 1054.00

Quantity: Stock ( 20 )

Estimate Shipping Cost

Laboratory All-steel fume hood/PP fume hood fume hood/exhaust detoxification laboratory acid and alkali resistance fume hood

Product Name	Laboratory All-steel fume hood/PP fume hood fume hood/exhaust detoxification laboratory acid and alkali resistance fume hood
Item NO.	1943293
Weight	10 kg = 22.0462 lb = 352.7396 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-19

Laboratory All-steel fume hood/PP fume hood fume hood/exhaust detoxification laboratory acid and alkali resistance fume hood

Product specification classification:

All-steel desktop type 1200*850*1500mm

All-steel desktop type 1500*850*1500mm

All-steel desktop type 1800*850*1500mm

All steel standard type 1200*850*2350mm

All steel standard type 1500*850*2350mm

All steel standard type 1800*850*2350mm

PP desktop 1200*850*1500mm

PP desktop type 1500*850*1500mm

PP desktop 1800*850*1500mm

PP standard type 1200*850*2350mm

PP standard type 1500*850*2350mm

PP standard type 1800*850*2350mm

All stainless steel desktop type 1200*850*1500mm

All stainless steel desktop type 1500*850*1500mm

All stainless steel desktop type 1800*850*1500mm

All stainless steel standard type 1200*850*2350mm

All stainless steel standard type 1500*850*2350mm

All stainless steel standard type 1800*850*2350mm

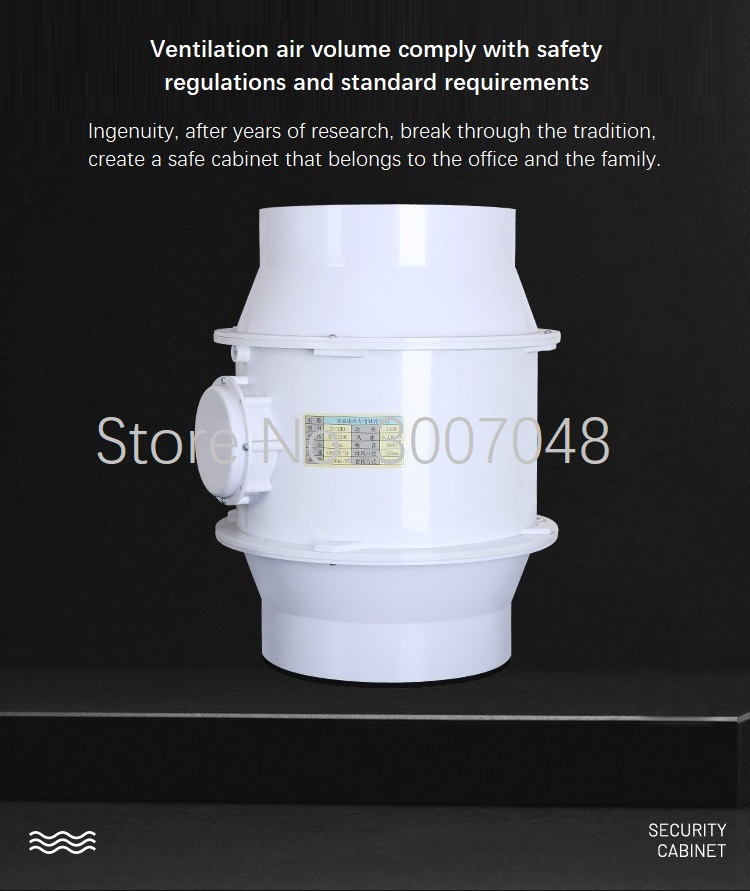

Centrifugal fan

Electric air valve

Non-standard customization

All steel fume hoods fume hood straight exhaust system fan ventilation kitchen laboratory fume hood ventilation detoxification wind cabinet

Please note: The above shipping costs are not final prices. We will adjust according to the actual weight of different specifications and different countries. Welcome to consult. Thank you! !

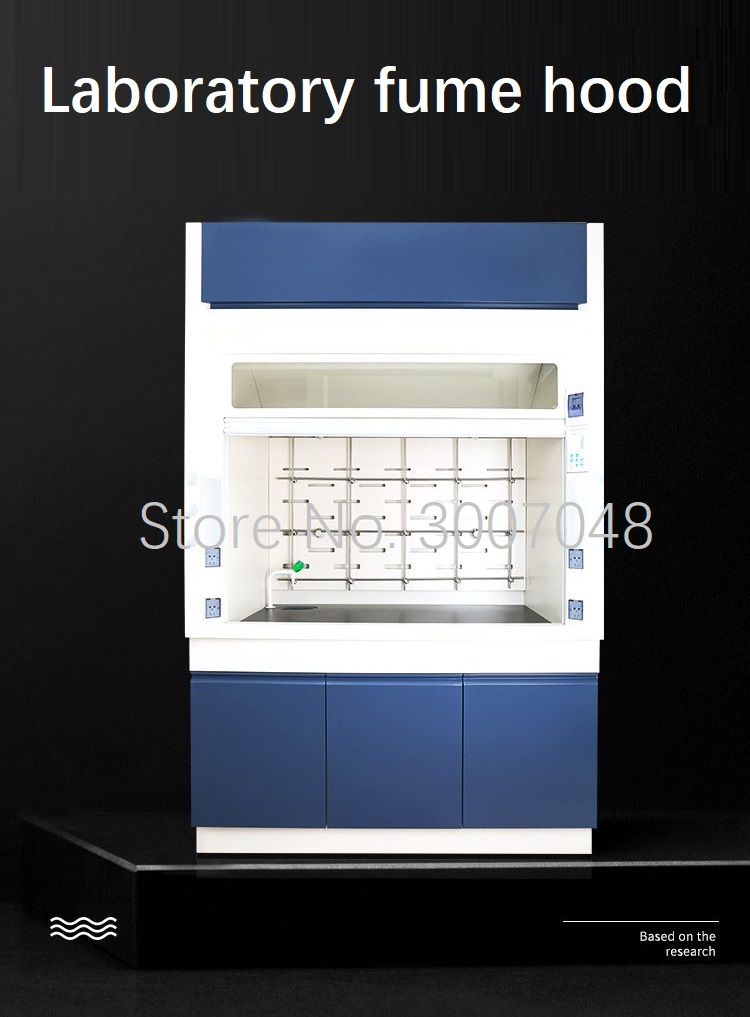

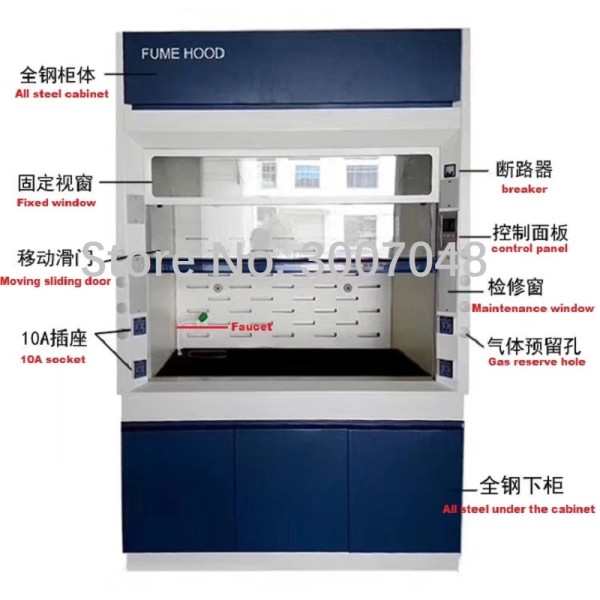

Product Name: Laboratory Fume Hood

Product material: PP/SUS stainless steel/quality steel

Countertop: 12.7MM solid core physical and chemical board

Air-collecting hood: adopt a conical air-retracting hood

Shell: PP/SUS stainless steel/quality steel

Window: 5MM tempered glass

Circuit: anti-shield fluorescent lamp/LCD panel button

Color: blue/white/gray/sapphire blue

Fume hood parameters:

name	Specification (mm)	Description

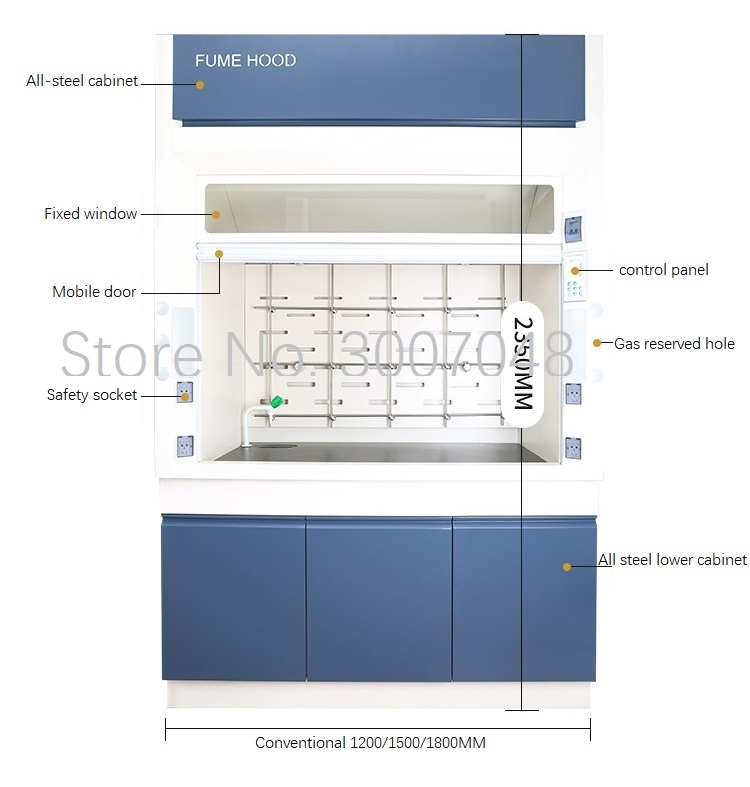

All steel ventilation cabinet (belt type , LED light ) with countertop water	1200 * 800* 2350	Cabinet: bare board 1.00 mm thick galvanized steel sheet. Circuit: Liquid crystal control panel, LED light, 10A multi-function splash-proof seat. Waterway : Single mouth seven-word faucet * 1 set Countertop: 12.7mm thick solid core physicochemical board Lining board: 5mm anti-double board. Lifting and lowering door: 5mm tempered glass.
	1500 * 800* 2350
	1800 * 800* 2350
All steel ventilation cabinet - upper cabinet (belt type, LED light) with countertop water	1200* 800 *1500	Cabinet: bare plate 1.00 mm thick galvanized steel plate. Circuit: Liquid crystal control panel, LED light, 10A multi-function splash-proof seat. Waterway : Single mouth seven words water *1 set Countertop: 12.7mm thick solid core physicochemical board Lining board: 5mm anti-double board. Lifting and lowering door: 5mm tempered glass.
	1500* 800 *1500
	1800* 800 *1500

Material Description:

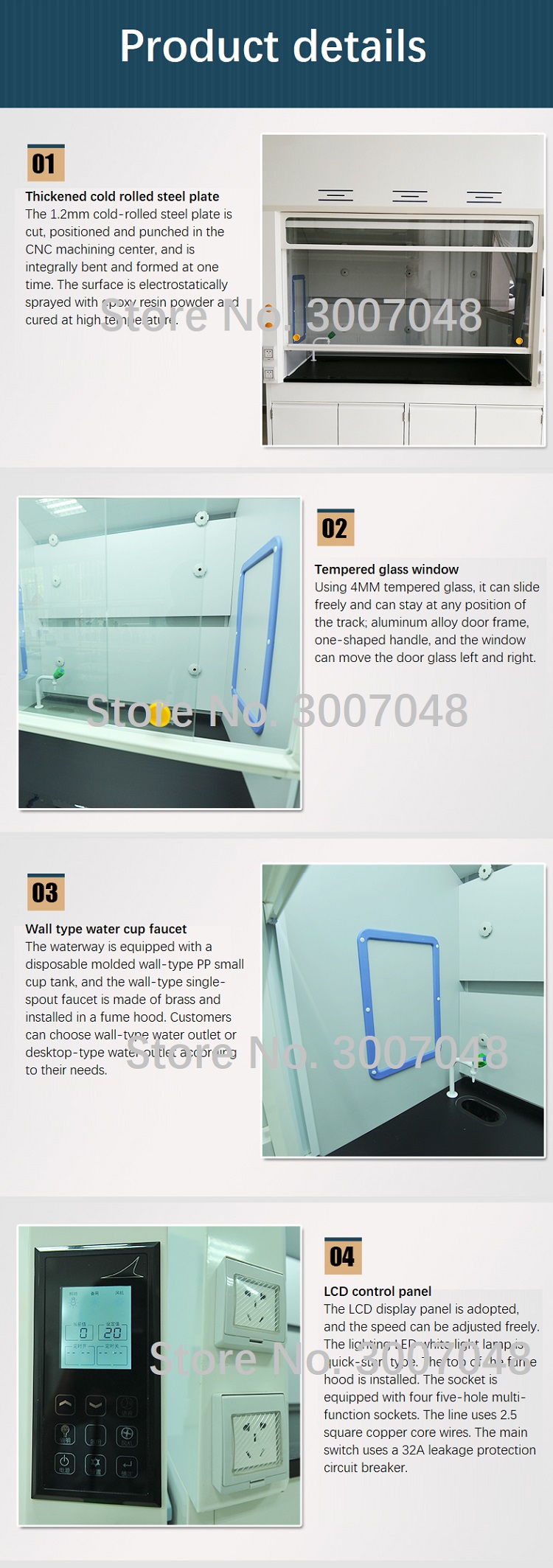

1. The main body of the cabinet adopts a bare 1.0mm first-grade galvanized sheet, which is cut by a fully automatic CNC laser cutting machine, and is integrally bent and formed by a fully automatic CNC bending machine at one time. The spray surface is automatically sprayed with epoxy resin and statically assembled. String. .

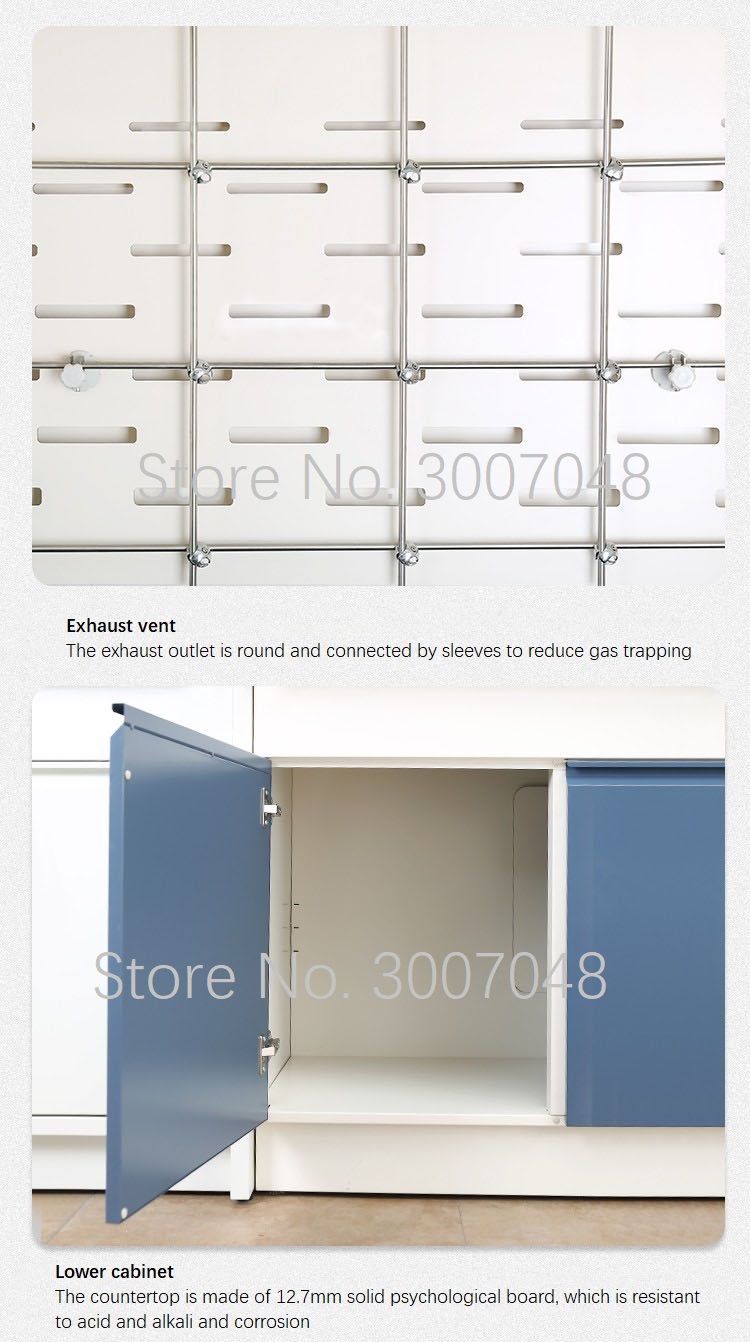

2. Inner liner/baffle: It adopts solid core anti-double plate (5mm thick) with good corrosion resistance and chemical resistance. The baffle fixing part is made of PP high-quality material.

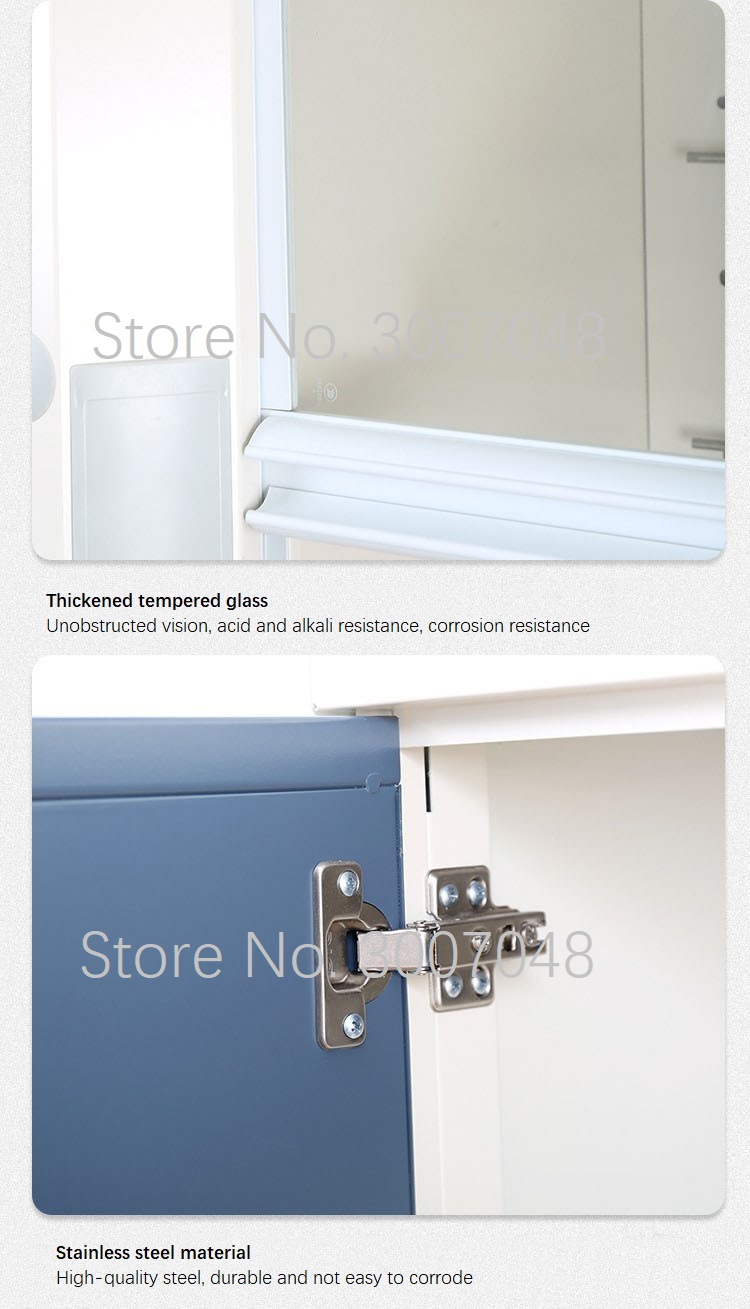

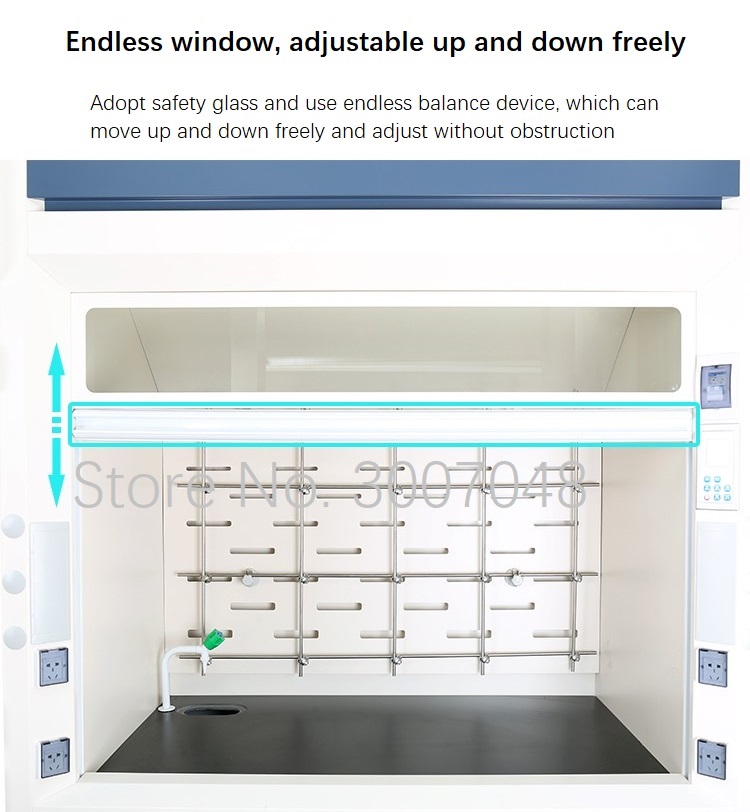

3. Movable window: 5mm high-quality toughened glass, door opening height 700mm, freely liftable, sliding door up and down sliding device adopts elevator self-weight structure, stepless arbitrary stop, sliding door guiding device adopts corrosion-resistant PVC material. The sliding door handle is made of PP in one piece. The sliding door is wrapped in a chemically resistant plastic film. The opening and closing of the sliding door adopts a rubber buffer device. Above the door is a glass window with a good view.

4. Countertop: Use domestic solid core physical and chemical board (12.7mm thick) with acid and alkali resistance, impact resistance, corrosion resistance, formaldehyde up to El grade standard, and an indelible back label on the back.

5. Connection part: All internal connection devices are hidden and corrosion-resistant. There are no exposed screws. The external connection device is resistant to chemical corrosion.

Performance introduction:

1. The lining materials are all sprayed with epoxy resin, resistant to acid, alkali and organic solvents, and no exposed metal or materials that are not resistant to corrosion or fire.

2. The waterway is equipped with imported disposable PP small water cup, which is resistant to acid and alkali and corrosion. Brass single-port seven-shaped faucet installed in the fume hood (optional)

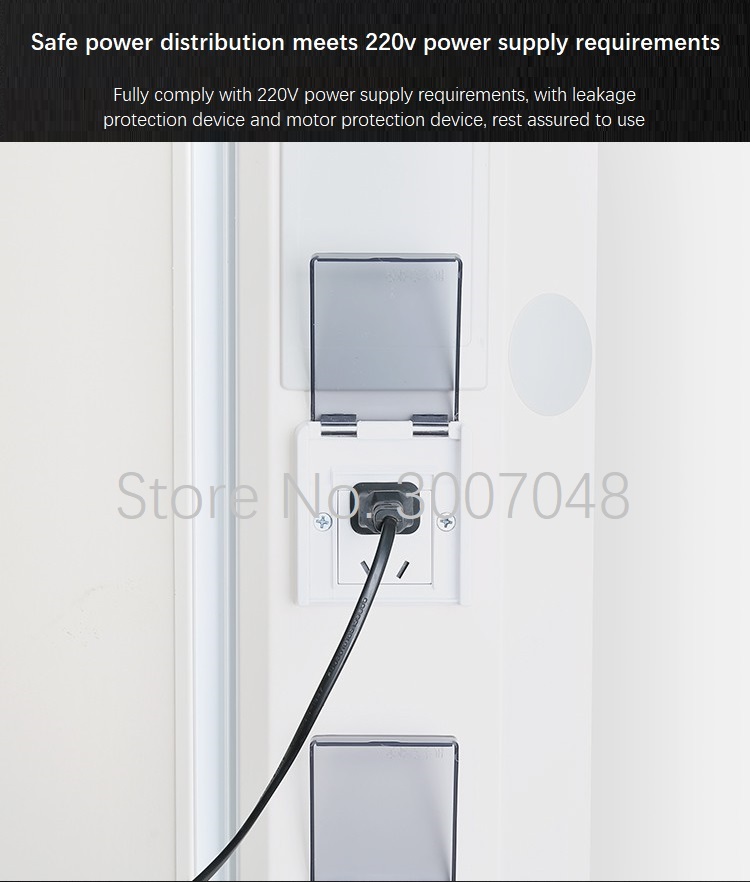

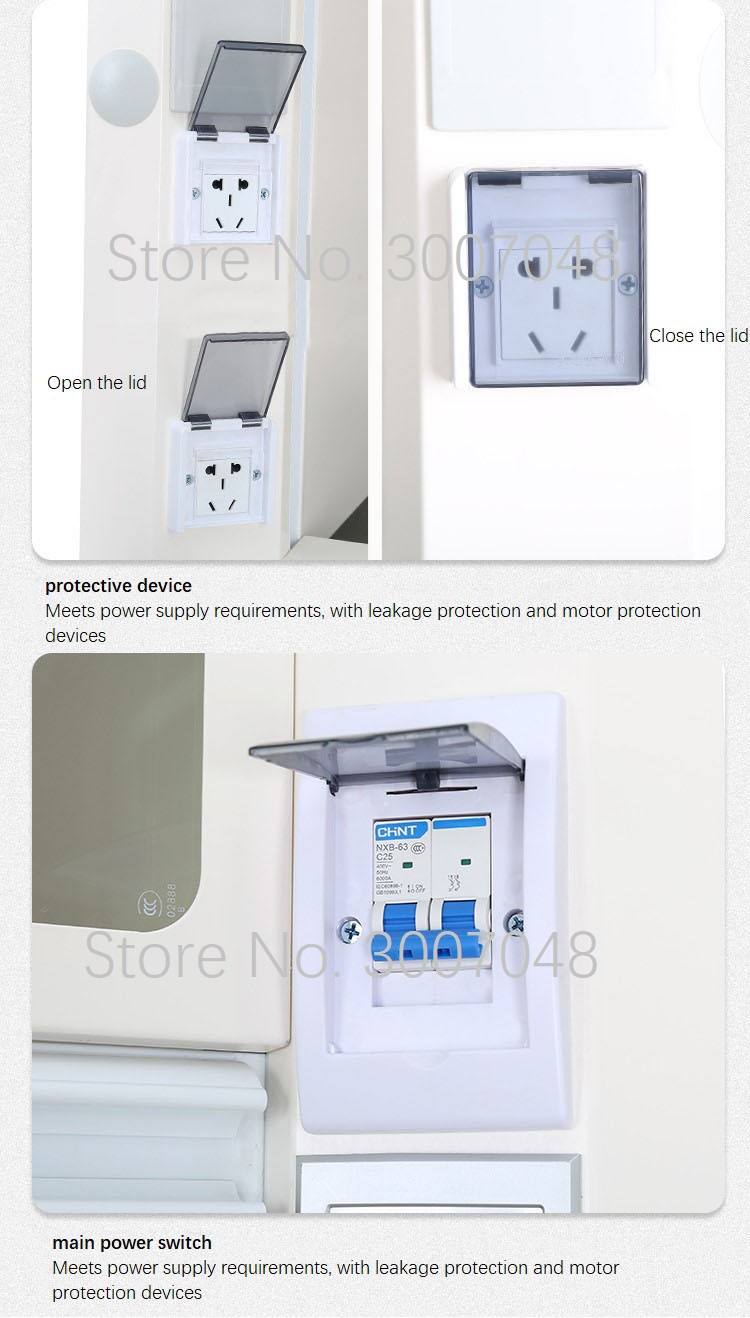

3. The circuit control adopts a liquid crystal control panel (the speed can be adjusted freely, and can be adapted to most similar products on the market). There is a safety glass panel on the lamp, and it is sealed with the cabinet. Equipped with 10A220V three-hole multi-function socket. The line uses 2.5 square copper core wire

Other lining materials of fume hood:

Other materials in the fume hood are double-sided epoxy resin coating, resistant to acid, alkali and organic solvents, no exposed metal or corrosion and fire resistance.

Working table: solid core physical and chemical board, table thickness: 12.7mm

Accessories:

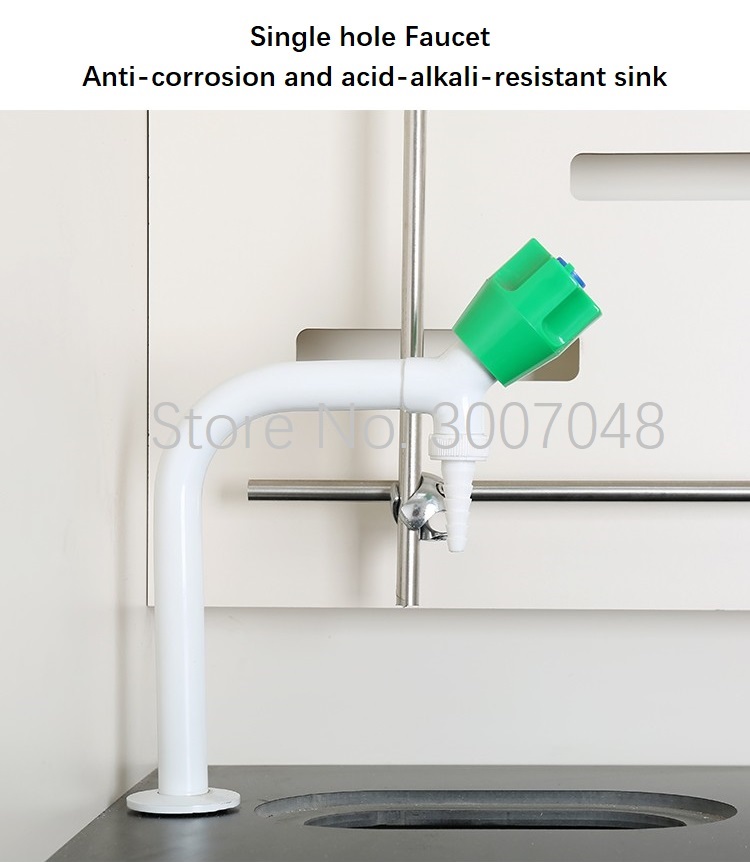

The Taixiong brand faucet valve is color-coded at the nozzle and installed in the fume hood. The control hand wheel is outside the ventilation hood, and the handle is marked with different colors.

The fume hood is equipped with imported disposable PP cups, which are resistant to acid, alkali and corrosion.

Inside the fume hood, the fittings (faucet nozzles) are made of brass and coated with epoxy resin.

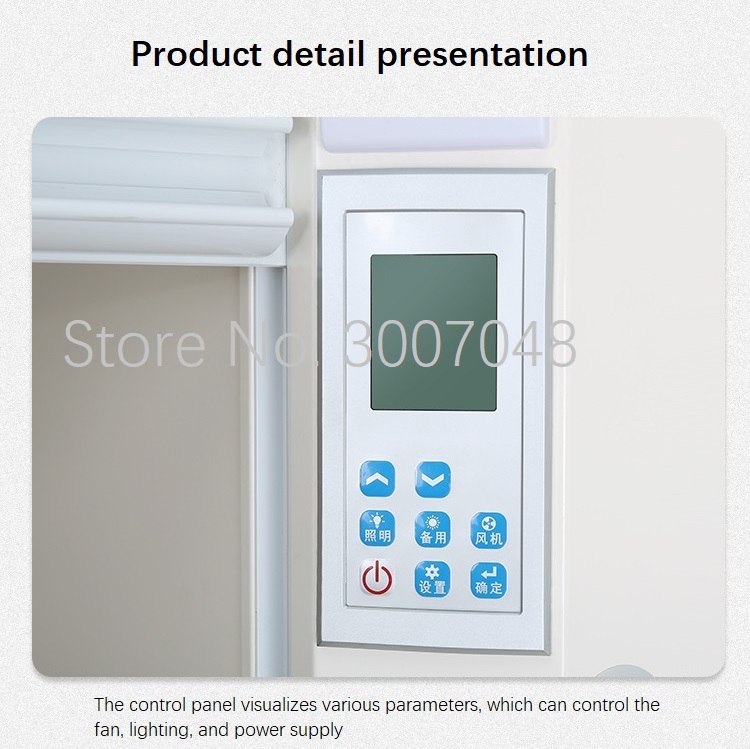

Fume hood control panel: LCD panel control panel.

Fume hood lighting: two fluorescent tubes, quick start type. The ballast is installed outside the fume hood.

The interior of the luminaire is white highly reflective plastic.

The lighting device has a safety glass panel and is sealed with the cabinet.

The lighting device includes a lamp tube.

Lighting brightness: 80 candles.

Electricity: Three-wire grounding socket, 220V, 1A.
