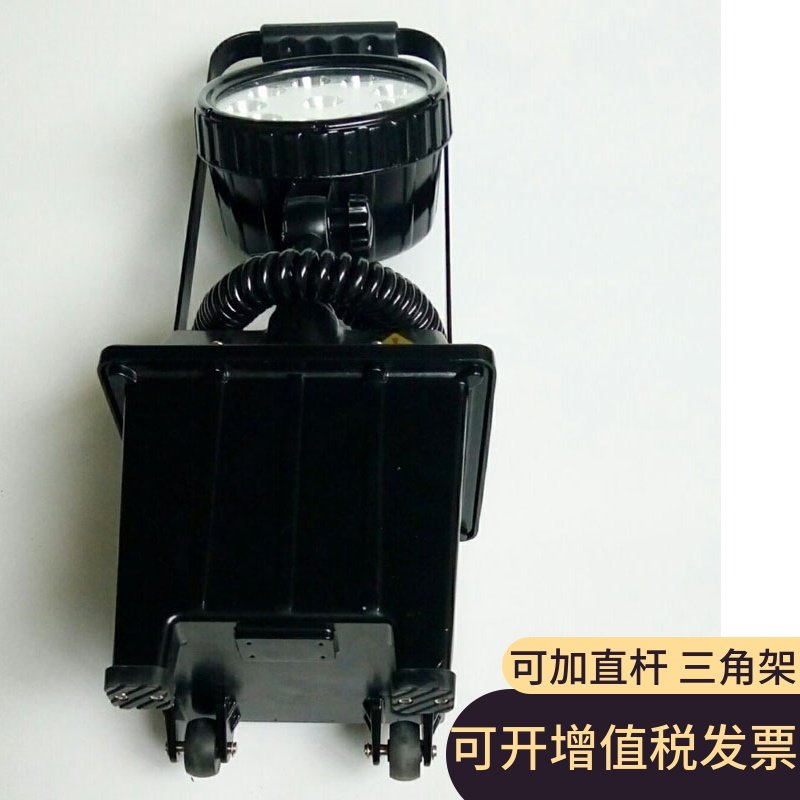

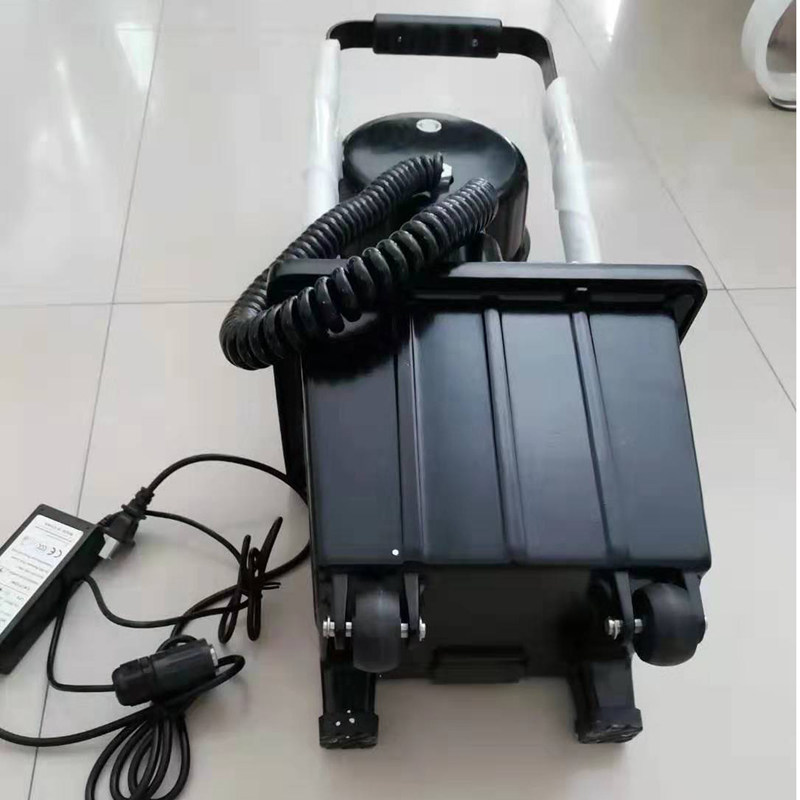

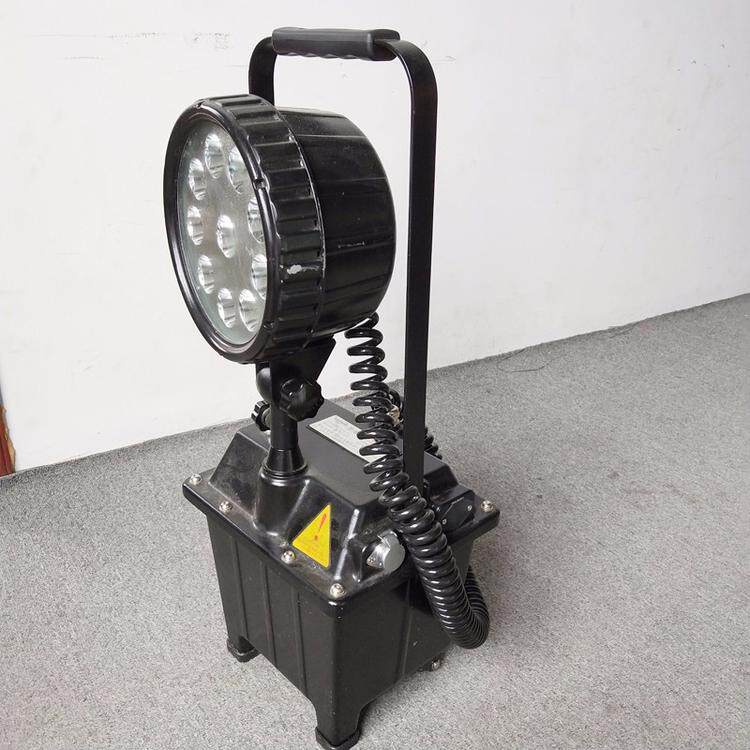

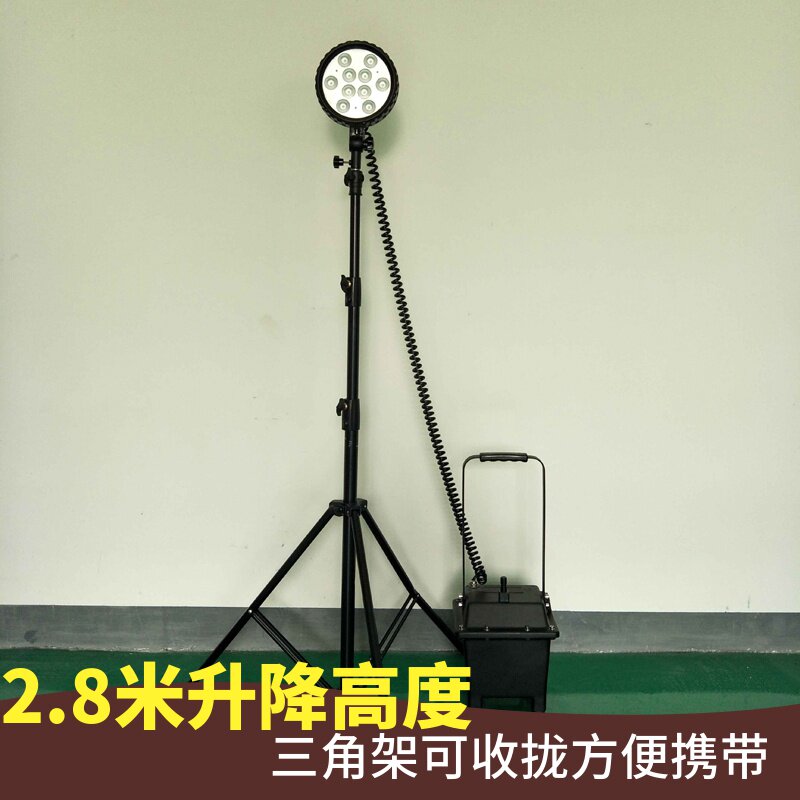

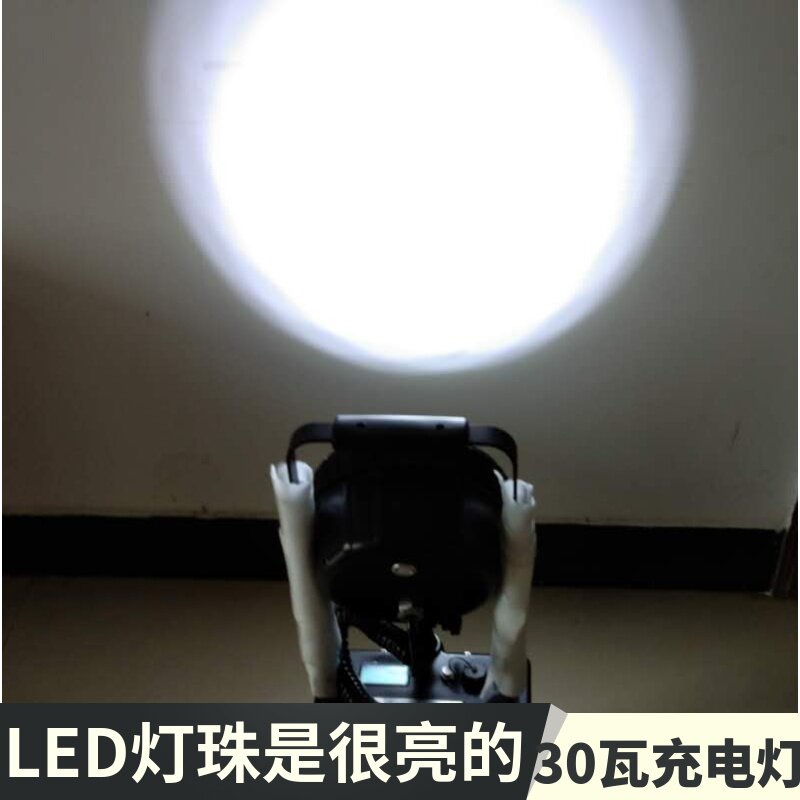

LED30W Charging explosion-proof floodlight lifting working lamp BAD502A/B Tunnel power engineering mobile lighting EX Item NO.: 1950391

By:

It is suitable for large-scale mobile lighting in explosion-proof areas of petroleum, petrochemical, railway and other industries.

It is suitable for mobile lighting in harsh places such as strong vibration, much rain and inconvenient maintenance.

Structural features:

The light source adopts light efficient LED, with light efficiency and service life up to 100000 hours.

The utility model has the advantages of long focusing distance, high light utilization rate and uniform spot.

Fully charged at one time, strong light lighting is more than 30 hours, which fully meets the lighting needs of two night shifts, and the battery is more economical.

The lighting time of working light is extended by more than 3 times to provide long-time lighting, but the brightness is only reduced by 30%.

The battery has excellent high and low temperature resistance, and the discharge time remains unchanged in the environment of high temperature or extreme low temperature.

The circuit board adopts the form of rubber seal, which has good anti vibration and heat dissipation performance.

The light source structure has good anti vibration performance.

Professional anti electromagnetic interference circuit design, which can be used with other wireless transmission equipment.

Parameter name

Parameter value

Rated voltage DC24V

Rated capacity 20Ah

Light source power (LED) 30W

Average service life of light source (LED) ≥ 100000h

Continuous discharge time 30h

Charging time 12h (after normal use) / 16h (after battery depletion)

Battery life ≥ 1000 (cycles)

Overall dimension 220 × two hundred and forty-six × 646mm long × wide × High)

Weight 14.5kg

Enclosure protection grade IP65
