Home>Explosion-proof electrical apparatus>IP56 CXH6-101PL LED search light Double-deck round light navigation signal marine stern light

IP56 CXH6-101PL LED search light Double-deck round light navigation signal marine stern light Item NO.: 1949265

Write a Review

US$ 210.00

Quantity: Stock ( 20 )

Estimate Shipping Cost

IP56 CXH6-101PL LED search light Double-deck round light navigation signal marine stern light

Product Name	IP56 CXH6-101PL LED search light Double-deck round light navigation signal marine stern light
Item NO.	1949265
Weight	3 kg = 6.6139 lb = 105.8219 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-29

Product Description

CXH-101PL

DOUBLE-DECK NAVIGATION SIGNAL LIGHT

The scope of application

Applied to the ships with the length 50m or above 50m as lamp signalliaison when night navigation

Products characteristic

1. The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good qualitystainless steel.
2. The signal lights have the whole seal structure, it is waterproof under the bad environment.
3. The signal lights uses exclusive LED illuminant which accords with ship rules and regulations, More energy efficient, longer working life.
4. The signal lights can work normally under the temperature-30°C-55°C.

Adopt standard

GB/T 3028, MSC 253(8)resolution, THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.

Specifications

Rated voltage	AC100-240V50/60Hz, DC24V
Protection class	IP56
Cable outside Diameter	Ø10~Ø12
Illuminant	LED

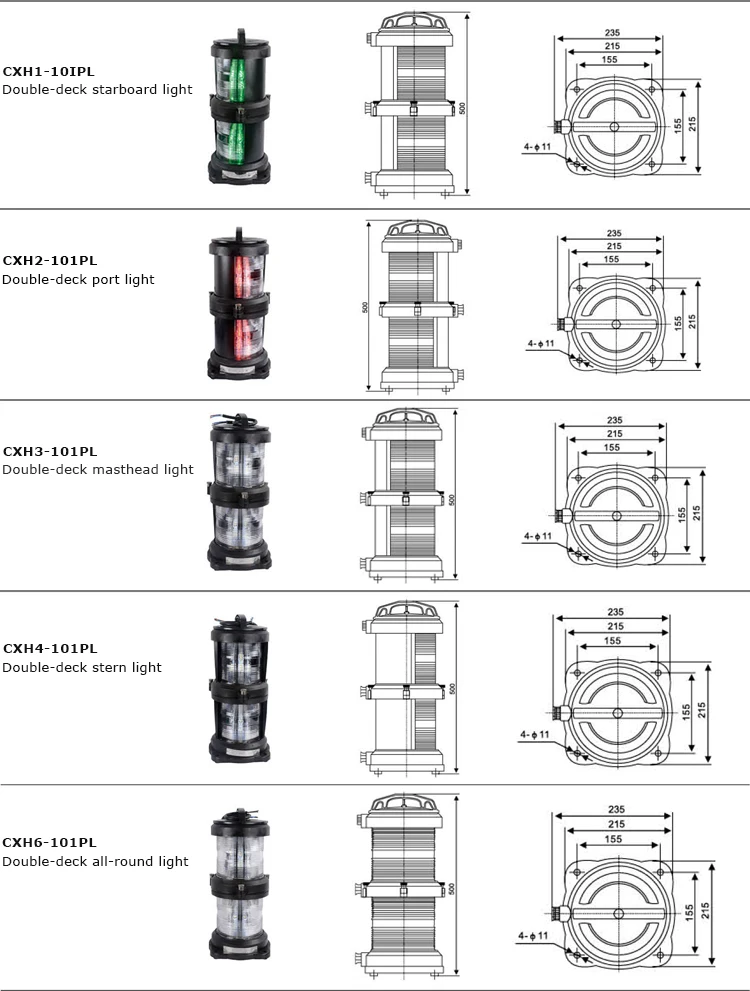

Name	Model	Visibility	Level arc	Color	Power	Weight
Starboard light	CXH1-101PL	3n.m	112.5°	Green	2*8W	6.2kg
Port light	CXH2-101PL	3n.m	112.5°	Red	2*8W	6.2kg
Masthead light	CXH3-101PL	6n.m	225°	White	2*8W	6.2kg
Stern light	CXH4-101PL	3n.m	135°	White/Yellow	2*8W	6.2kg
All-round light	CXH6-101PL	3n.m	360°	Red/Green/White	2*8W	6kg
