IIB IIC 5KW 18000but Wall split explosion proof air conditioner split units Item NO.: 1935666

Write a Review

US$ 1200.00

Quantity: Stock ( 9 )

Estimate Shipping Cost

IIB IIC 5KW 18000but Wall split explosion proof air conditioner split units

Product Name	IIB IIC 5KW 18000but Wall split explosion proof air conditioner split units
Item NO.	1935666
Weight	10 kg = 22.0462 lb = 352.7396 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-09

Product Description

PRODUCT DESCRIPTION

1.QDLECHATEX Explosion poof air conditionersare suitable for use in explosive environments such as petrochemical,metallurge,pharmaceutical,light industry,textile,food,bioengineering,aerospace engineering and military .A place with temperature control requirments.

2.They are usually manually controlled,but can be designed as remote controls according to user requirements.

3.They use brand air conditioners and are treated with special processes and manufacturing methods for explosion protection.

4.We can perform explosion proof treatment on large water-cooled or air-cooled or air-coold units,refrigeration units,and central air-conditioning units,and provide solutions for users.

5.Technical information is included in the package for easy installation and maintenance.

6.They are divided into different types according to different structures:split type air conditioner,split cabinet type air connditioner,and window type air conditioner. Divided into functions:single cold type ,cold and warm tepe.

7.Explosion-proof mark : Exdm || BT4 / Equivalent to Europe || 2G Exdm || BT4

Exdm || CT4 / Equivalent to Europe || 2G Exdm || CT4

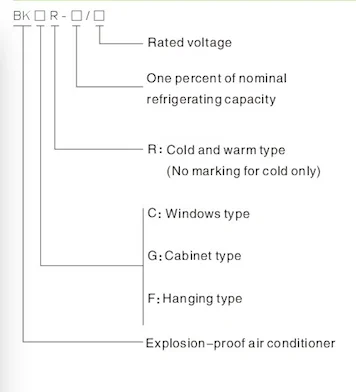

MODEL MEANING:

Split wall mounted explosion-proof

air conditioner-BRFR

Type Performance	BKFR-26	BKFR-35	BKFR-50	BKFR-71
BUT	9000but	12000but	18000but	24000but
TON	0.75ton	1ton	1.5ton	2ton
Capacity of chill(W)	2600	3500	5000	7120
Capacity of thremal(W)	2860	4000	5000	7700
Rated input power (chill)W	950	1350	1910	2600
Rated input power (thremal)W	920	1380	1600	2440
Rated current (chill) A	4.4	6.2	8.9	12.5
Rated current (thremal) A	4.2	6.4	7.5	12
Rated Voltage (V)	AC 220V	AC 220V	AC 220V	AC 220V
Power frequency Hz	50	50	50	50
Dimension LWH (indoor)	770240179	770240179	1035313203	1230355295
Dimension LWH (outdoor)	510680250	540860255	543860255	946810420
Weight (indoor) kg	19	19	25	25
Weight (outdoor)kg	38	44	53	62
Area(height 3 meters)M2	10-15M2	15-23	20-30	30-45

Window type explosion-proof air conditioner-BKC

Type Performance	BKC-25	BKC-35	BKC-50	BKC-71
BUT	9000but	12000but	18000but	24000but
TON	0.75ton	1ton	1.5ton	2ton
Capacity of chill(W)	2500	3500	5000	7000
Capacity of thremal(W)	/	/	/	/
Rated input power (chill)W	1060	1400	1850	2600
Rated input power (thremal)W	/	/	/	/
Rated current (chill) A	5.1	6.5	9	12.5
Rated current (thremal) A
Rated Voltage (V)	AC 220V	AC 220V	AC 220V	AC 220V
Power frequency Hz	50	50	50	50
Dimension LWH (indoor)	520340495	560400635	710400580	780435665
Dimension LWH (outdoor)	520340495	560400635	710400580	780435665
Weight (indoor) kg	35	54	58	59
Weight (outdoor)kg	35	54	58	59
Area(height 3 meters)M2	10-15M2	15-23	20-30	30-45

Split type explosion-proof

cabinet air conditioner-BRGR

Type Performance	BKGR-50	BKGR-71	BKGR-120	BKGR-250
BUT	18000but	24000but	40000but	80000but
TON	1.5ton	2ton	3.5	7
Capacity of chill(W)	5000	7120	12000	28000
Capacity of thremal(W)	5800	7700	13000	28000
Rated input power (chill)W	1940	2600	4800	9800
Rated input power (thremal)W	1770	2440	4700	8800
Rated current (chill) A	9.2	12.5	13.5	16.5
Rated current (thremal) A	8.3	12	13	15.5
Rated Voltage (V)	AC 220V	AC 220/380V	AC 380V	AC 380V
Power frequency Hz	50	50	50	50
Dimension LWH (indoor)	5201757255	5201757255	5401875362	8501200400
Dimension LWH (outdoor)	952702312	952702312	957793414	9641450750
Weight (indoor) kg	52	57	76	105
Weight (outdoor)kg	51	75	197	235
Area(height 3 meters)M2	22-32	30-45	55-85	100-150
