Hydraulic pile driver /Photovoltaic cement pile hydraulic pile driver /High frequency vibration pile driver Photovoltaic pile ha Item NO.: 1945555

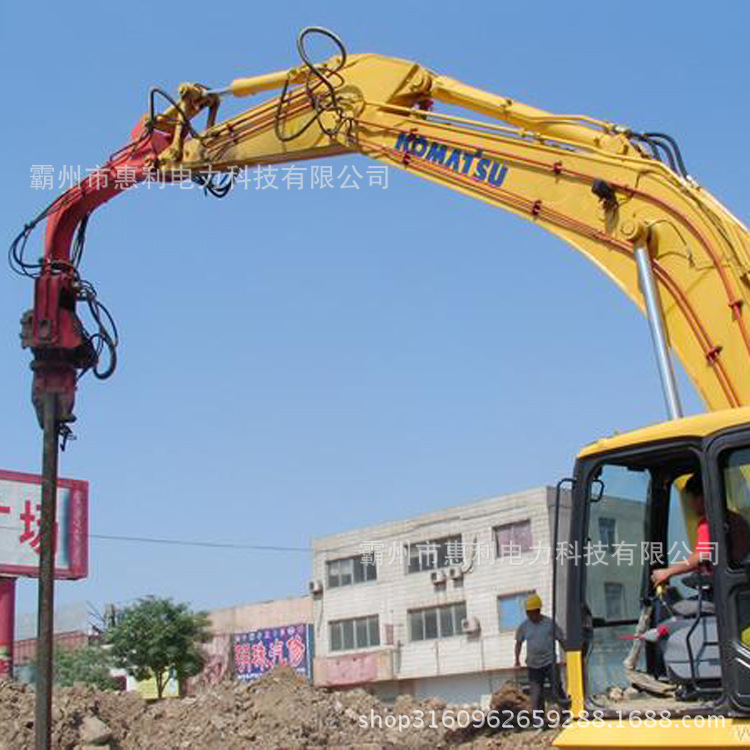

Description of excavator equipped with vibratory hammer pile driver:

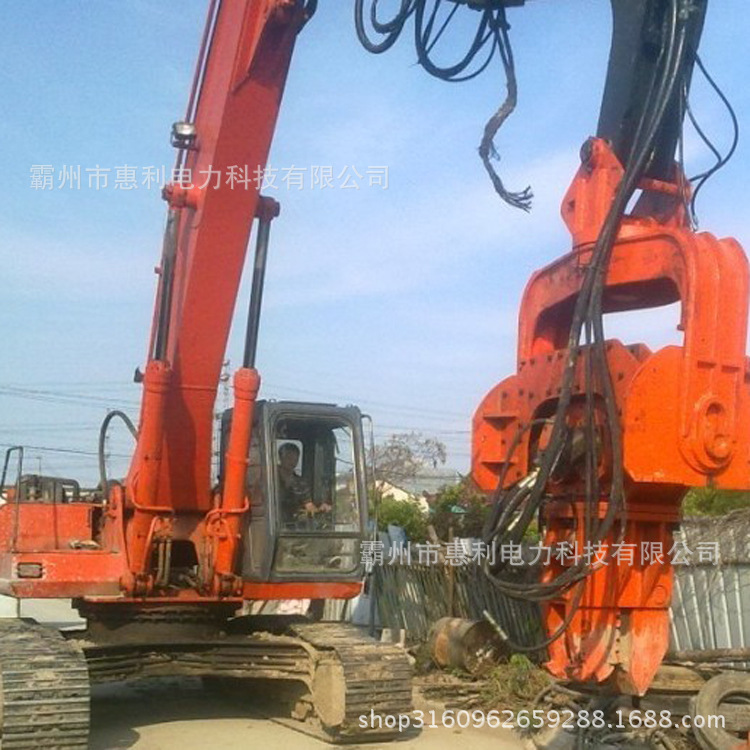

The vibrating hammer is mainly composed of five parts, namely: accessory arm assembly, rotary connection assembly, rotary connection hanger assembly, box assembly and fixture assembly.

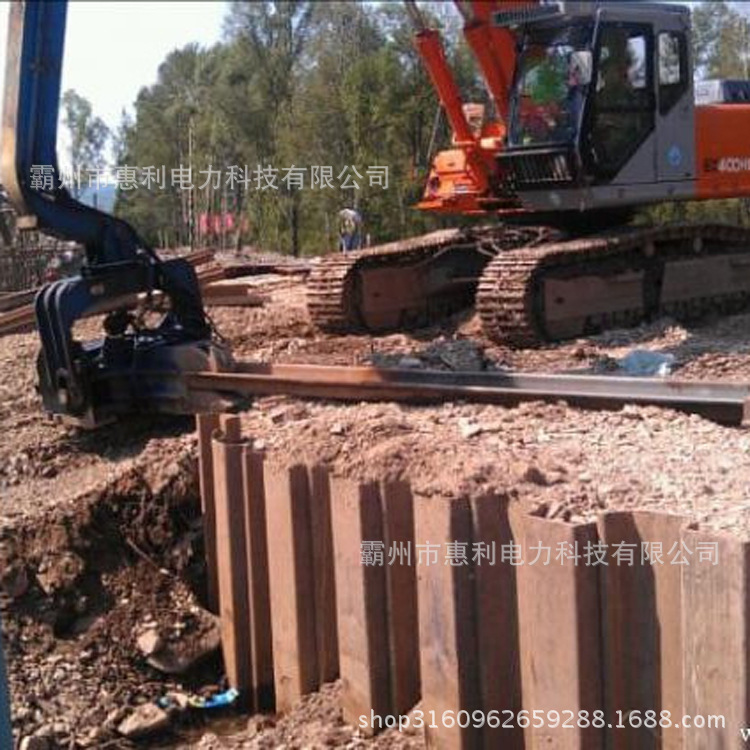

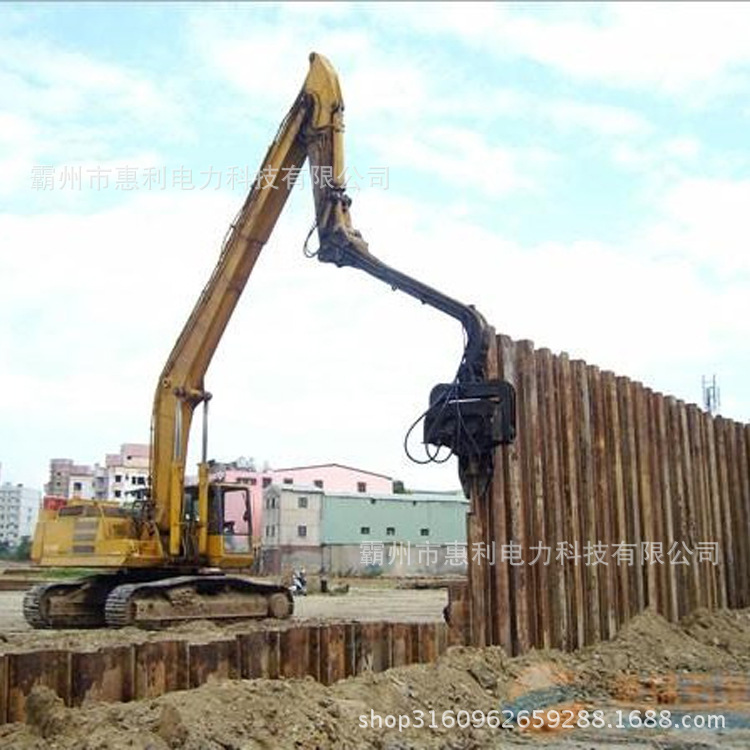

1. In the case of using straight hammer, 20-24t vibrating hammer can only drive 6m-9m steel sheet pile, and it is not recommended to use this type of hammer when refitting. The 6-meter steel sheet pile can be directly installed with a vibrating hammer on the standard arm, while the 9-meter steel sheet pile needs to be refitted on the bushing of the standard arm. Over 9 meters, lengthening arms must be made.

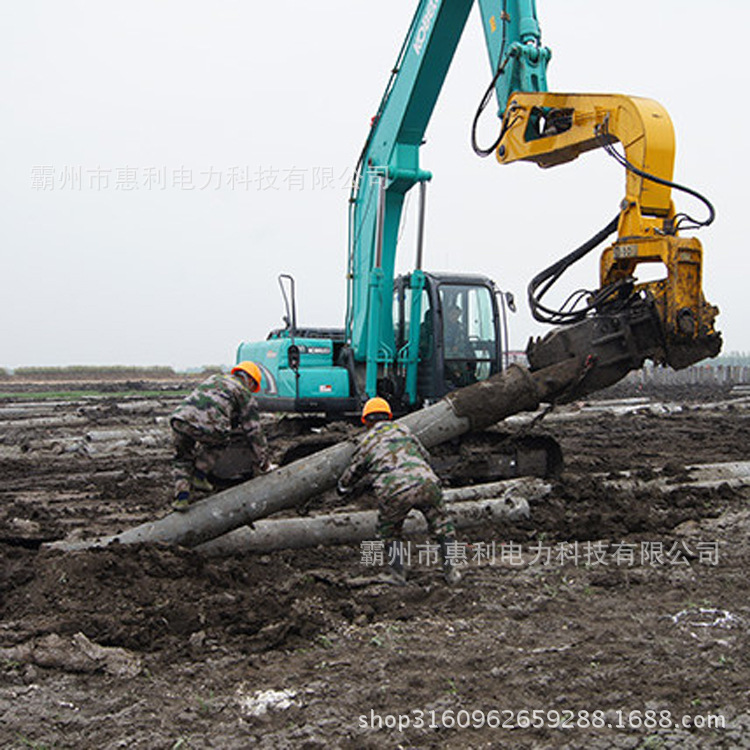

2. If the pile type is pipe pile with diameter less than 30mm, cement pile, channel steel, I-steel, pulling steel sheet pile with length more than 12M, and the excavator is refitted into pile driver, it is recommended to use 30t or above.

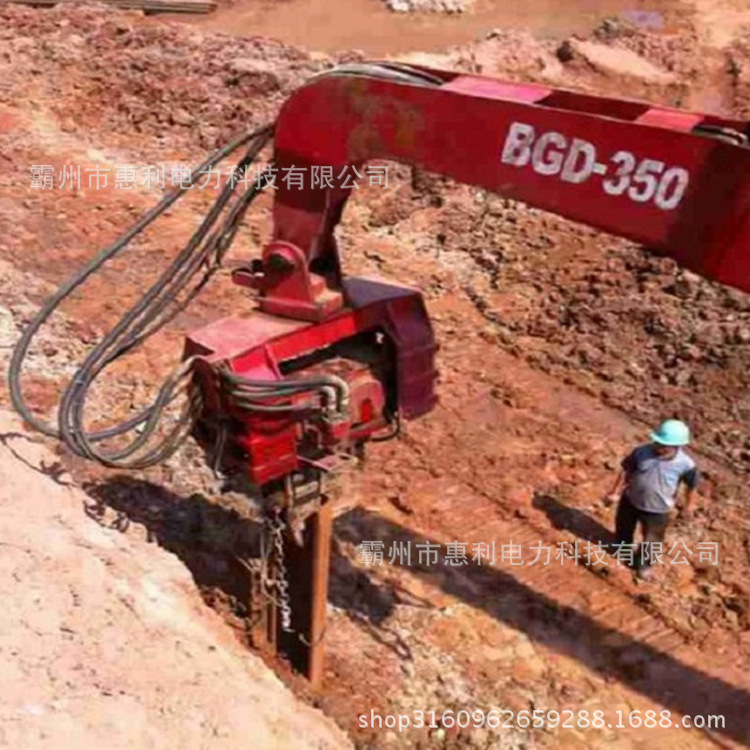

3. The vibrating hammer is taken from the hydraulic system of excavator, and frequency conversion hydraulic pipeline is installed through patented technology. Output power and speed up the flow. It can also protect the main oil pump of the excavator from damage. The total number of eccentric blocks is even, and the main speed hydraulic inlet motor is used as the centrifugal force to rotate, so as to generate sinusoidal vertical vibration, which is then transmitted to the stressed pile body through the clamp at the bottom of the box body and goes underground to destroy the underground soil resistance around the pile body. So that the vibration force of the pile can go in and out freely. The vibrating hammer works in the environment of 3 sand and 7 soil. Too bad environment for equipment damage.

4. In the process of excavator refitting pile driver, it involves hydraulic pipeline, circuit and control valve, especially in the aspect of oil pressure control, it needs excellent technology, so we should choose professional company as far as possible when selecting products.
