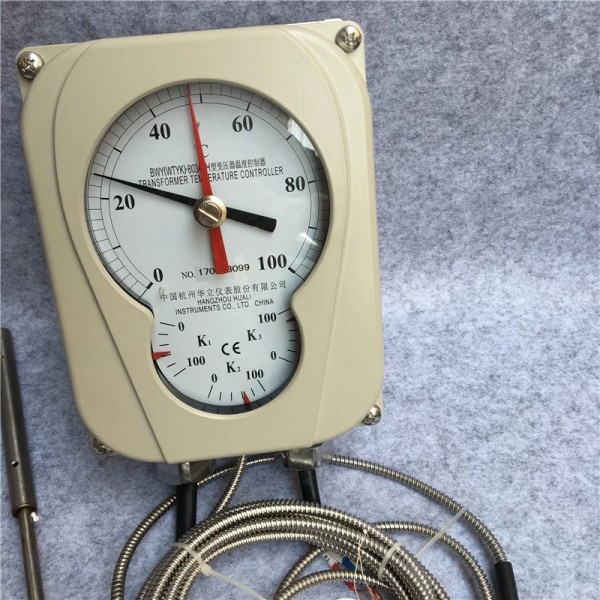

Hangzhou Huali transformer temperature controller BWY-803ATH BWY-802ATH Temperature indicator Item NO.: 1942147

1、 Use

Bwy (wtyk) - 803 and 802 series pressure temperature indicating controllers (hereinafter referred to as temperature controllers) are mainly designed for measuring and controlling the oil temperature of large power transformers. At the same time, they are also used for temperature detection and control of other equipment.

This series of thermostat has good protection performance and can work normally for a long time under outdoor conditions. Two or three groups of high-capacity temperature control switches are installed inside the instrument, which can be used for starting, closing and signal alarm of transformer cooling system respectively. At the same time, the temperature signal can be transmitted to the control center remotely to display the transformer oil temperature synchronously.

Serial number

Model and name

Main purpose

Applicable occasions

one

BWY（WTYK）—803、

802 thermostat

Measure the top oil temperature of the transformer, start and close the cooling system and send out alarm signals when the temperature reaches the set value

Transformer above 1000KVA

two

BWY（WTYK）—803、

802 (th) thermostat

Same as 1

And suitable for wet tropical occasions

1000kVA

Above transformer

three

BWY（WTYK）—803、

802 (th) thermostat

Same as 2; Composite temperature sensor technology is adopted,

It can output PT100 thermal resistance signal at the same time

8000kVA

Above transformer

four

XMT

Digital display temperature controller

Matched with bwy (wtyk) - 803 and 802a,

Realize oil temperature telemetry and remote control.

It can also output standard signals connected with computers

8000kVA

Above transformer

five

Bwy (wtyk) - 803, 802a / XMT temperature controller

The same as 3 and 4 can be replaced at the same time

1) Wtzk-02 temperature controller

2) Resistance thermometer

3) Transfer switch

4) Single meter of XCT or XMT

5) Transmitter

Transformers above 8000kVA or unattended substations

2、 Main technical parameters

（1） Bwy (wtyk) - type 803 and 802

1. Normal working conditions: ambient temperature - 20 ℃ ~ + 55 ℃

Relative humidity 5% ~ 95%

2. Measurement range: (0-100) ℃ (0-120) ℃ (0-150) ℃

3. Indication: level 1.5

4. Temperature measuring part: overall dimension of temperature package（ Φ fourteen × 150) mm, stainless steel, mounting thread M27 × two

5. Switching performance: setting range: full range setting degree: ± 3 ℃; switching difference: (6 ± 2) ℃

Rated power: AC 250V 3A DC 250V 50W

Standard set point: 803 K1 = 55 ℃ K2 = 65 ℃ K3 = 80 ℃

802 K1=55℃ K2=80℃

6. Instrument installation dimension: compatible with wtyk-02. See the outline drawing for details.
