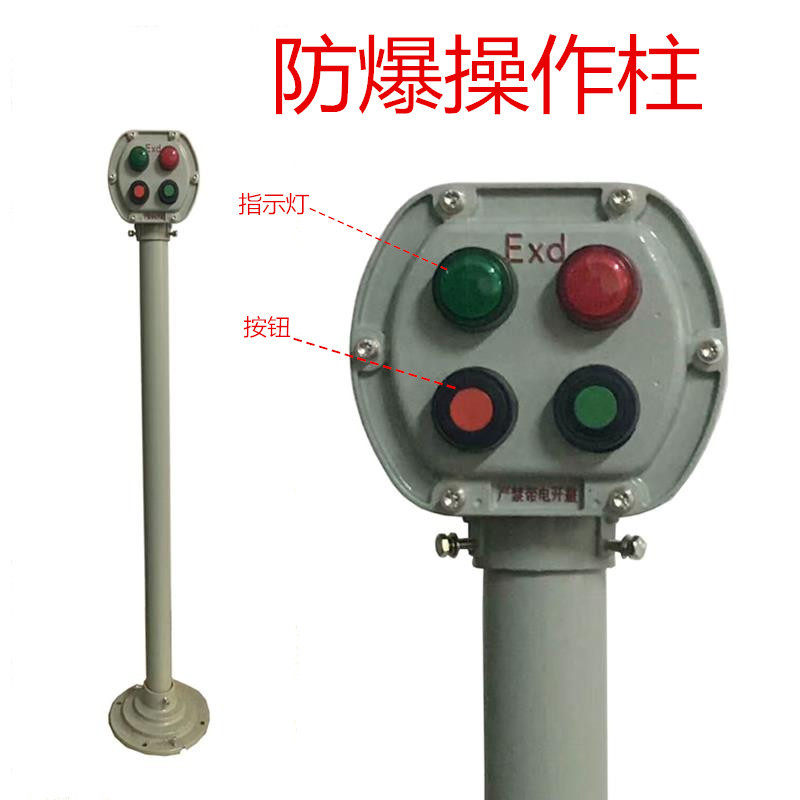

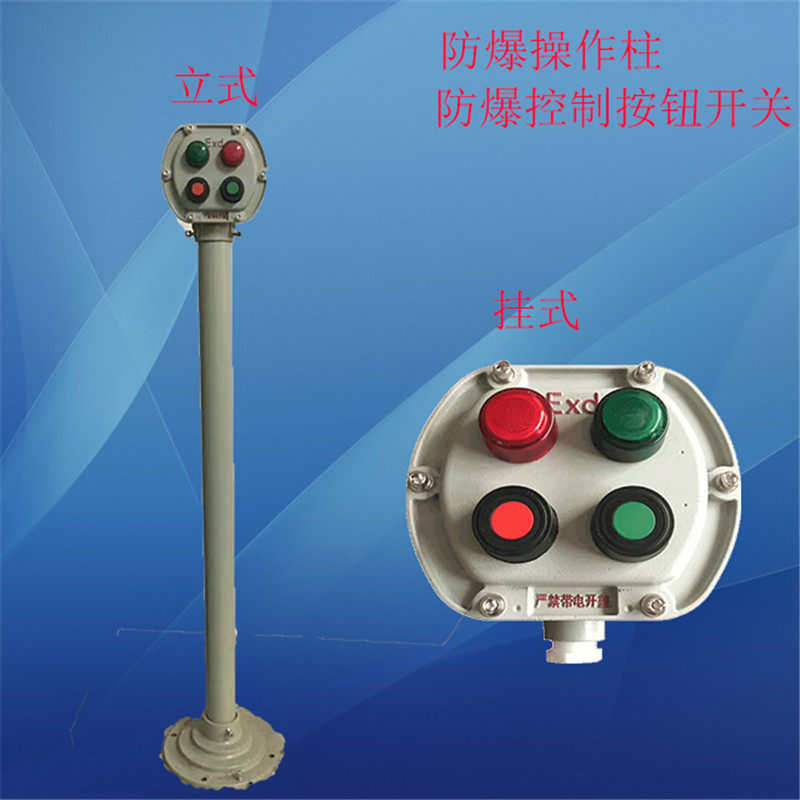

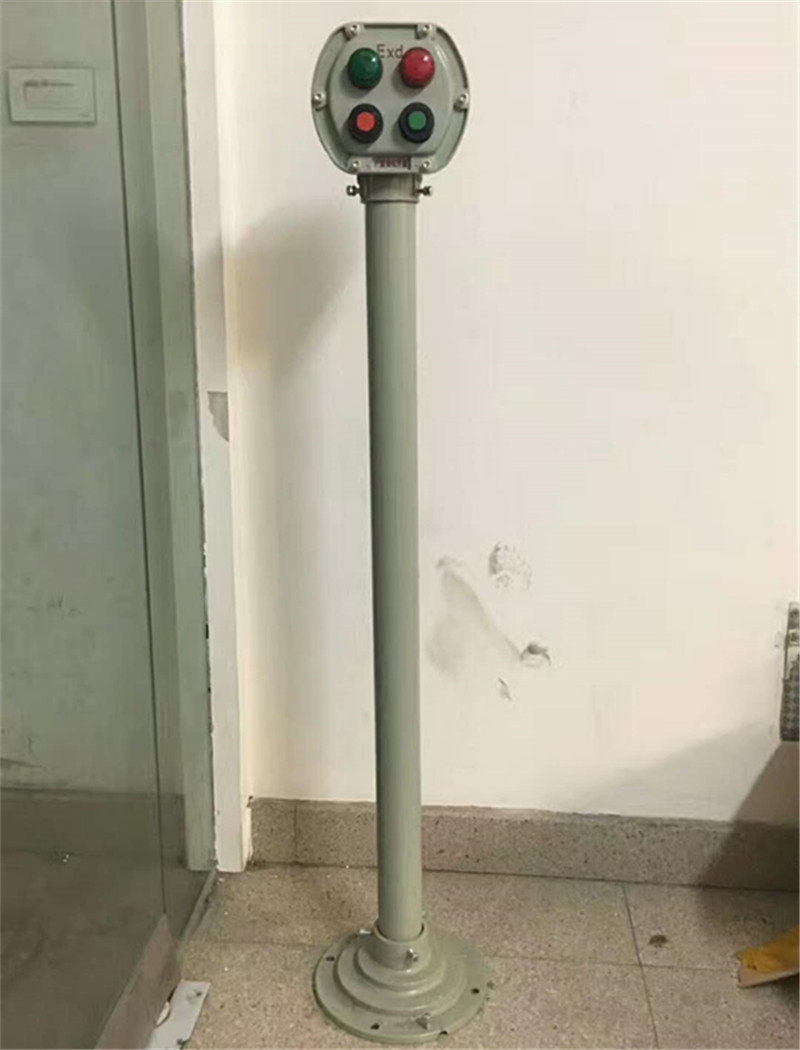

Explosion proof operation column Explosion proof control button Wall column type wall hanging type Two buttons and two lights Wa Item NO.: 1945544

Explosion proof control button, explosion-proof operation column, instrument switch button, explosion-proof box.

Ordering instructions and examples of lbz series explosion-proof operating column

When this product is used outdoors, please use the rain cover, and the product performance will be more superior.

During model selection, please indicate the quantity and specification of switches, buttons, indicator lights and ammeters, as well as the installation mode of products, the direction of inlet and outlet lines, etc. according to the meaning of total unit and sub unit

Explosion proof operation column, explosion-proof operation column, explosion-proof operation column, explosion-proof operation column, explosion-proof operation column, explosion-proof operation column

Technical parameters of lbz series explosion-proof operating column

Executive Standards: gb3836.1-2000, gb3836.2-2000, gb3836.3-2000

Explosion proof sign: exdeiibt6

Protection grade: IP55

Anti corrosion grade: WF1

Use category: AC-3, AC-4

Rated voltage: 220V / 380V (please specify if there are special requirements)

Rated current: 10A

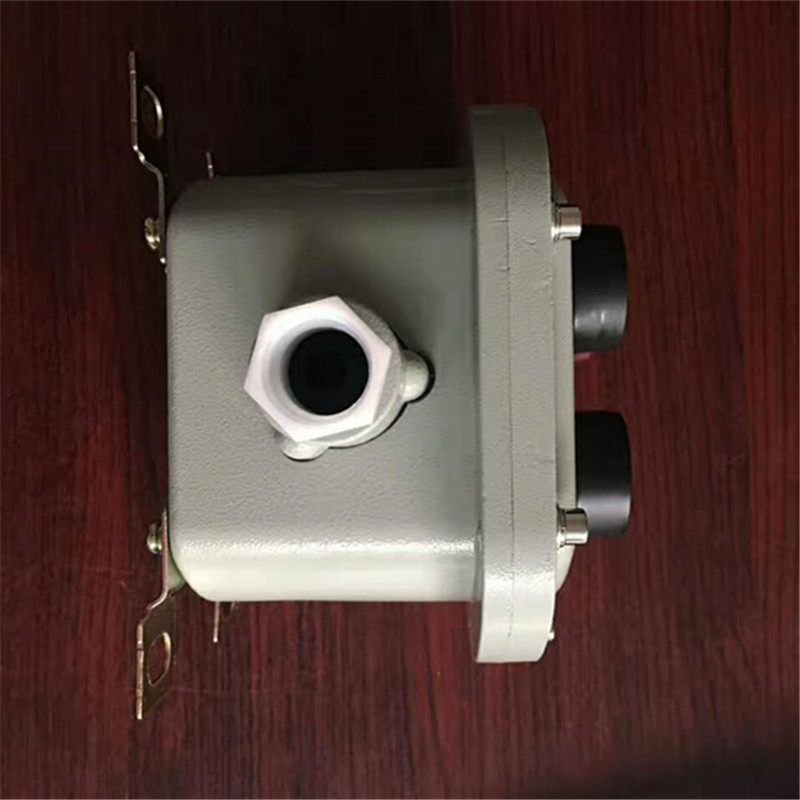

Inlet thread: G1 ″ (please specify if there are special requirements)

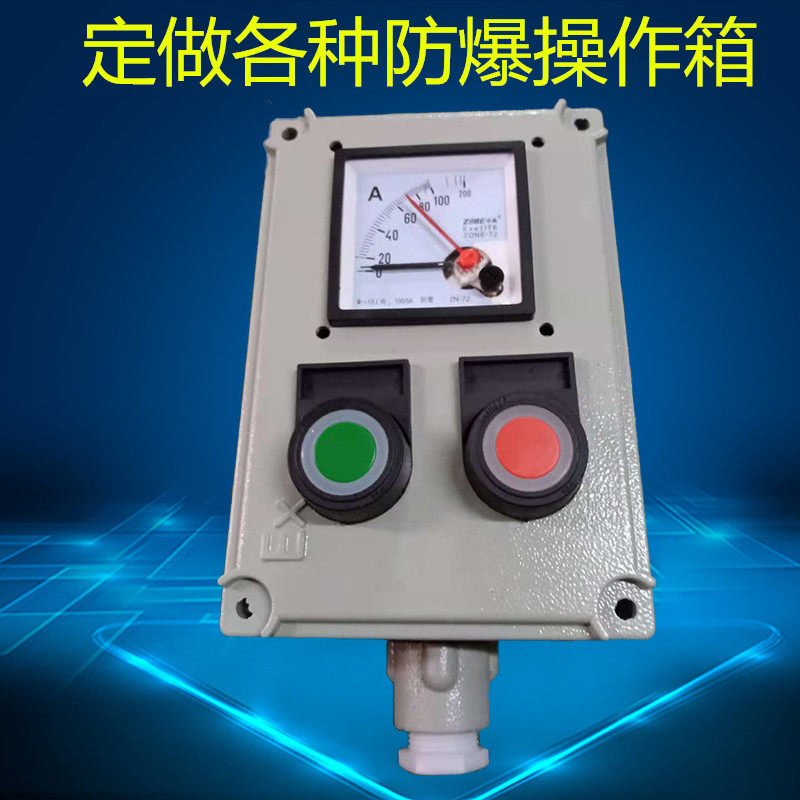

Cable outer diameter: Φ 12mm? Φ 17mm this product is: two buttons, one meter and two lamps hanging type, the meter range is 200 / 5, and the indicator light is 220V

One red and one green button respectively. The specifications of the two buttons are one normally open and one normally closed.

Lbz explosion-proof operation column, lbz explosion-proof operation column, lbz explosion-proof operation column, lbz explosion-proof operation column, lbz explosion-proof operation column, lbz explosion-proof operation column, lbz explosion-proof operation column, lbz explosion-proof operation column, lbz explosion-proof operation column

Structural description of lbz series explosion-proof operating column

Cover plate with hinge device - the cover plate and shell are equipped with stainless steel hinges for easy maintenance. Please indicate when required.

Cover plate embedded sealing strip structure - the cover plate is provided with foam sealing strip outside the explosion-proof surface to effectively improve the protection ability without affecting the explosion-proof. Explosion proof operation column, explosion-proof operation column, explosion-proof operation column, explosion-proof operation column, explosion-proof operation column, explosion-proof operation column

Detailed product description lbz explosion-proof operation column, lbz operation column, description

Application scope of lbz series explosion-proof operating column

1. It is applicable to dangerous places in zone 1 and zone 2 of explosive gas environment.

2. Applicable to class IIa and IIB explosive gas environment.

3. Applicable to T1-T6 temperature group

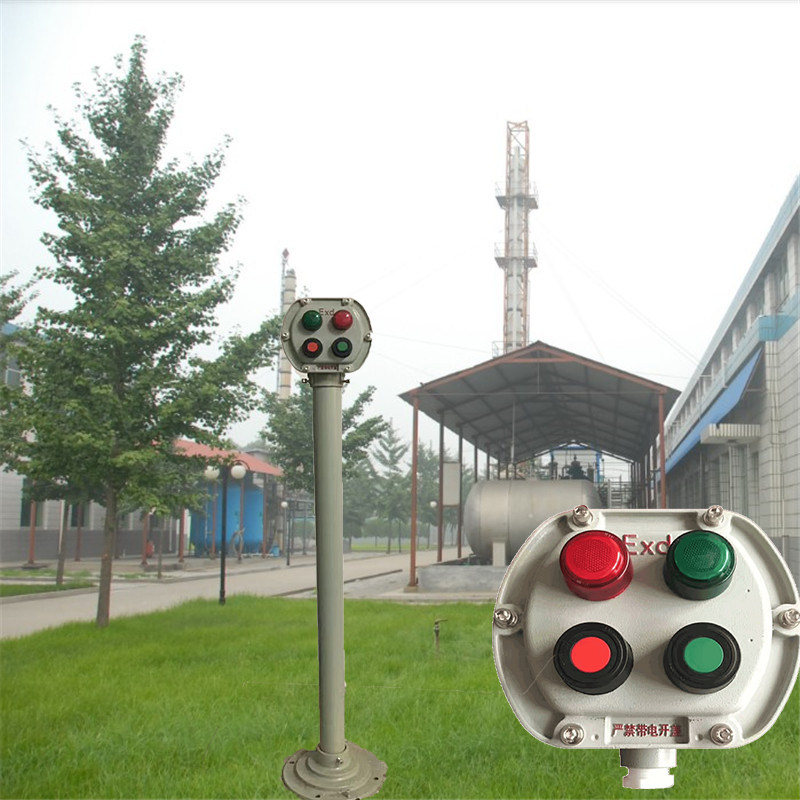

4. It is widely used in dangerous environments such as oil exploitation, oil refining, chemical industry and military industry, as well as offshore oil platforms, oil tankers and other fields

Lbz series explosion proof operating column product features

1. The shell is made of ZL102 aluminum alloy by die casting, and the surface is sprayed with high-voltage electrostatic plastic.

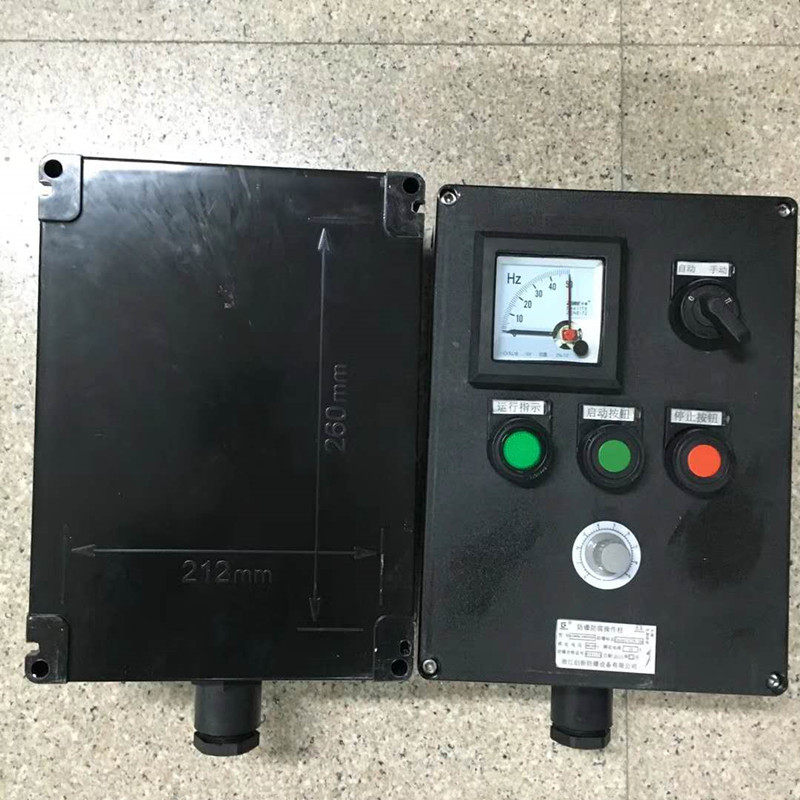

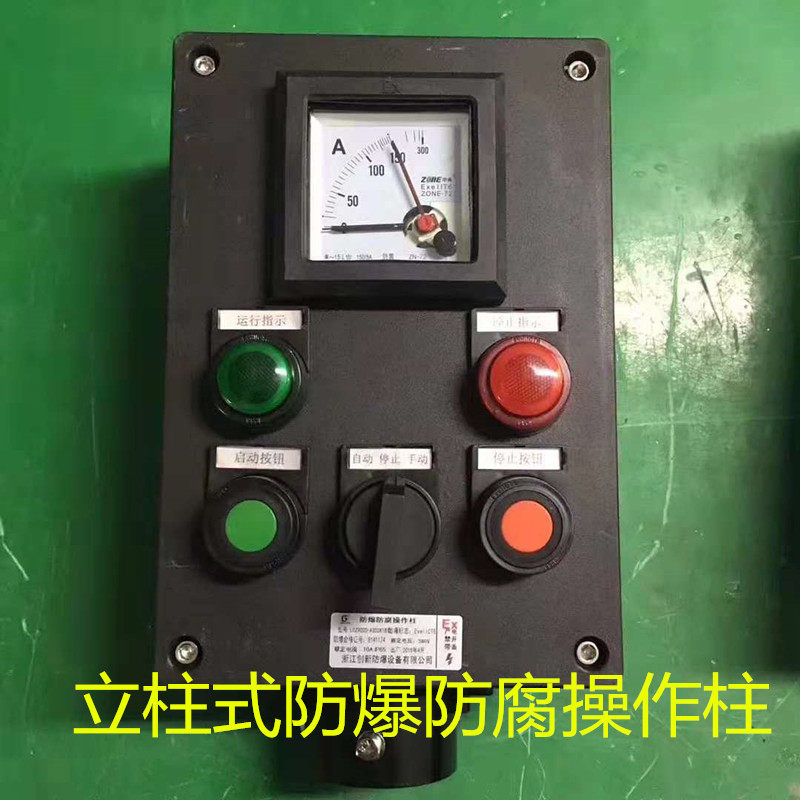

2. Built in transfer switch, button, ammeter (other instruments can be installed according to user requirements), indicator light, etc.

3. The transfer switch has more than 30 functions, which can be freely selected by the user and can be specially made according to the requirements.

4. After optimized design, the switch operating mechanism can be automatically aligned to ensure that the switch rotates flexibly without jamming.

5. The range of ammeter shall be specified by the user.

6. Steel pipe or cable can be used.

7. The factory nameplate of the product only reflects the content of the total unit, and the code of each sub unit is the ordering parameter.

Lbz explosion-proof operation column, lbz explosion-proof operation column, lbz explosion-proof operation column, lbz explosion-proof operation column, lbz explosion-proof operation column

Structural description of lbz series explosion-proof operating column
