Product Description
Main Parameters
|
Item Name:
|

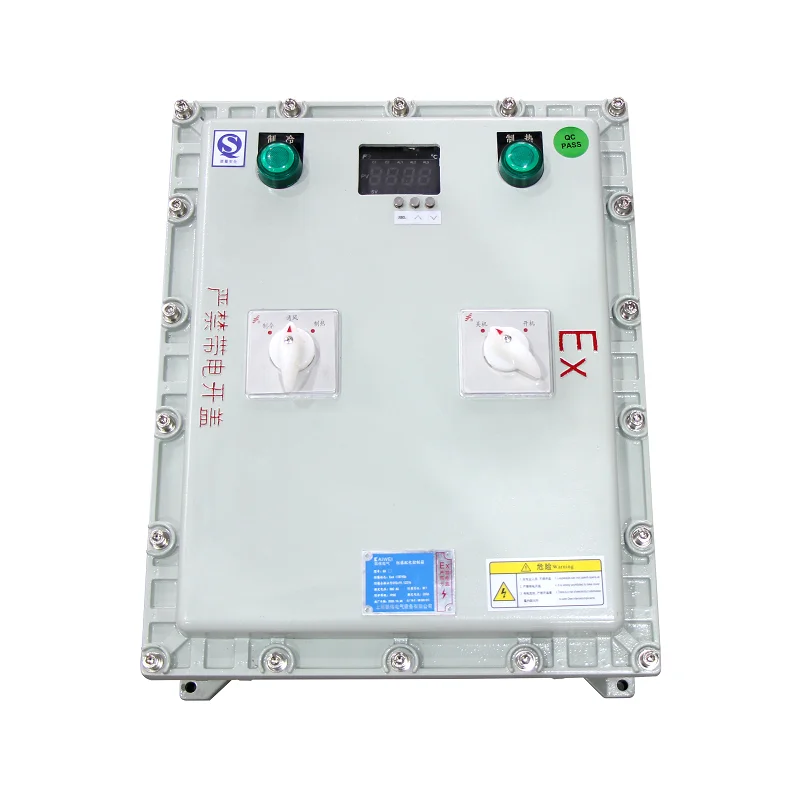

BXK53-100 Explosion-proof Electrical Control Box
|
|||||||
|
Material:
|
Cold Rolled Steel Sheet or Stainless Steel
|
|||||||
|
Thickness:
|
Cabinet Body 4.0mm Door Plate:6.0mm Mounting Plate:2.5mm
|
|||||||
|
Standard Configuration:
|
Door Plate,Cabinet Body,Cover Screw,Mounting Plate(optional)
|
|||||||
|
Surface Treatment:
|
Etch Primer for Cabinet Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035
|
|||||||
|
Class of Protection:
|
IP56(According to GB4205-1993)
|
|||||||
|
MOQ:
|
1 PCS
|
|||||||
|
Supply Ability:
|
10000 PCS/Month
|
|||||||
|
Delivery Time:
|
10-15 days
|
|||||||
|
Remark:
|
Special Demands Can Be Customized
|
|||||||
|
No.
|
Order No.(AL7035) |
Order No.(Stainless steel SUS304) |
Width |
Height |
Depth |
|
1
|
BXK403020
|
BXKSUS403020
|
300
|
400
|
200
|
|
2
|
BXK504020
|
BXKSUS504020
|
400
|
500
|
200
|
|
3
|
BXK604020
|
BXKSUS604020
|
400
|
600
|
200
|
|
4
|
BXK705020
|
BXKSUS705020
|
500
|
700
|
200
|
|
5
|
BXK806030
|
BXKSUS806030
|
600
|
800
|
300
|
|
6
|
BXK8070250
|
BXKSUS8070250
|
700
|
800
|
250
|
|
7
|
BXK1008030
|
BXKSUS1008030
|
800
|
1000
|
300
|
|
8
|
BXK12006040
|
BXKSUS12006040
|
600
|
1200
|
400
|
|
9
|
BXK14006040
|
BXKSUS14006040
|
600
|
1400
|
400
|
|
10
|
BXK14008040
|
BXKSUS14008040
|
800
|
1400
|
400
|
|
11
|
BXK14008050
|
BXKSUS14008050
|
800
|
1400
|
500
|
|
12
|
BXK16006040
|
BXKSUS16006040
|
600
|
1600
|
400
|
|
13
|
BXK16008040
|
BXKSUS16008040
|
800
|
1600
|
400
|
|
14
|
BXK16008050
|
BXKSUS16008050
|
800
|
1600
|
500
|
|
15
|
BXK18006040
|
BXKSUS18006040
|
600
|
1800
|
400
|
|
16
|
BXK18008040
|
BXKSUS18008040
|
800
|
1800
|
400
|
|
17
|
BXK18008060
|
BXKSUS18008060
|
800
|
1800
|
600
|
|
18
|
BXK18001050
|
BXKSUS18001050
|
1000
|
1800
|
500
|
|
19
|
BXK20006040
|
BXKSUS20006040
|
600
|
2000
|
400
|
|
20
|
BXK20006060
|
BXKSUS20006060
|
600
|
2000
|
600
|
|
21
|
BXK20008060
|
BXKSUS20008060
|
800
|
2000
|
600
|
|
22
|
BXK20001060
|
BXKSUS20001060
|
1000
|
2000
|
600
|
|
23
|
BXK22008060
|
BXKSUS22008060
|
800
|
2200
|
600
|
|
24
|
BXK220010060
|
BXKSUS220010060
|
1000
|
2200
|
600
|
|
25
|
BXK2200120050
|
BXKSUS2200120050
|
1200
|
2200
|
500
|
