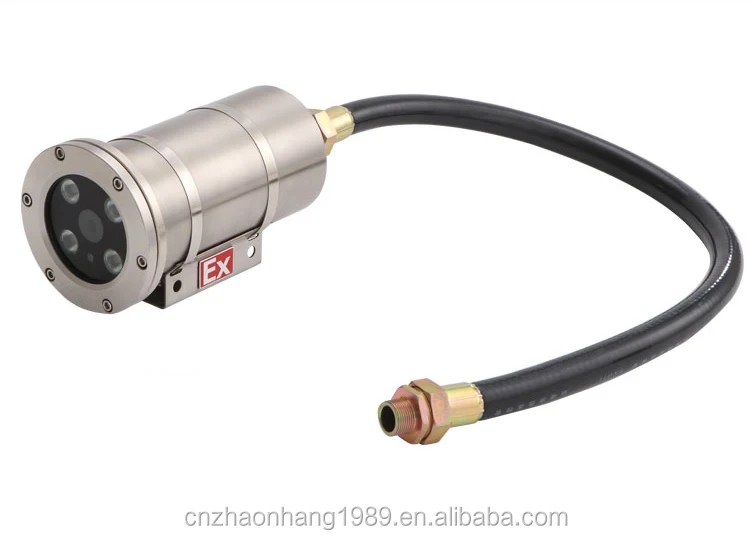

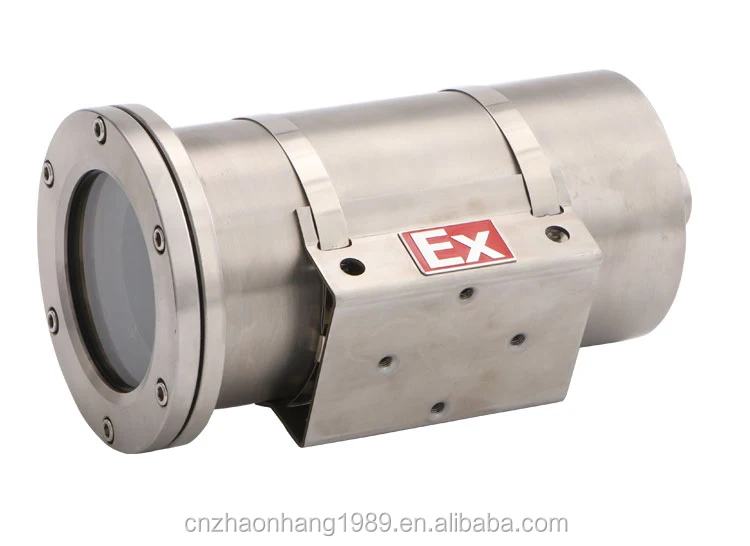

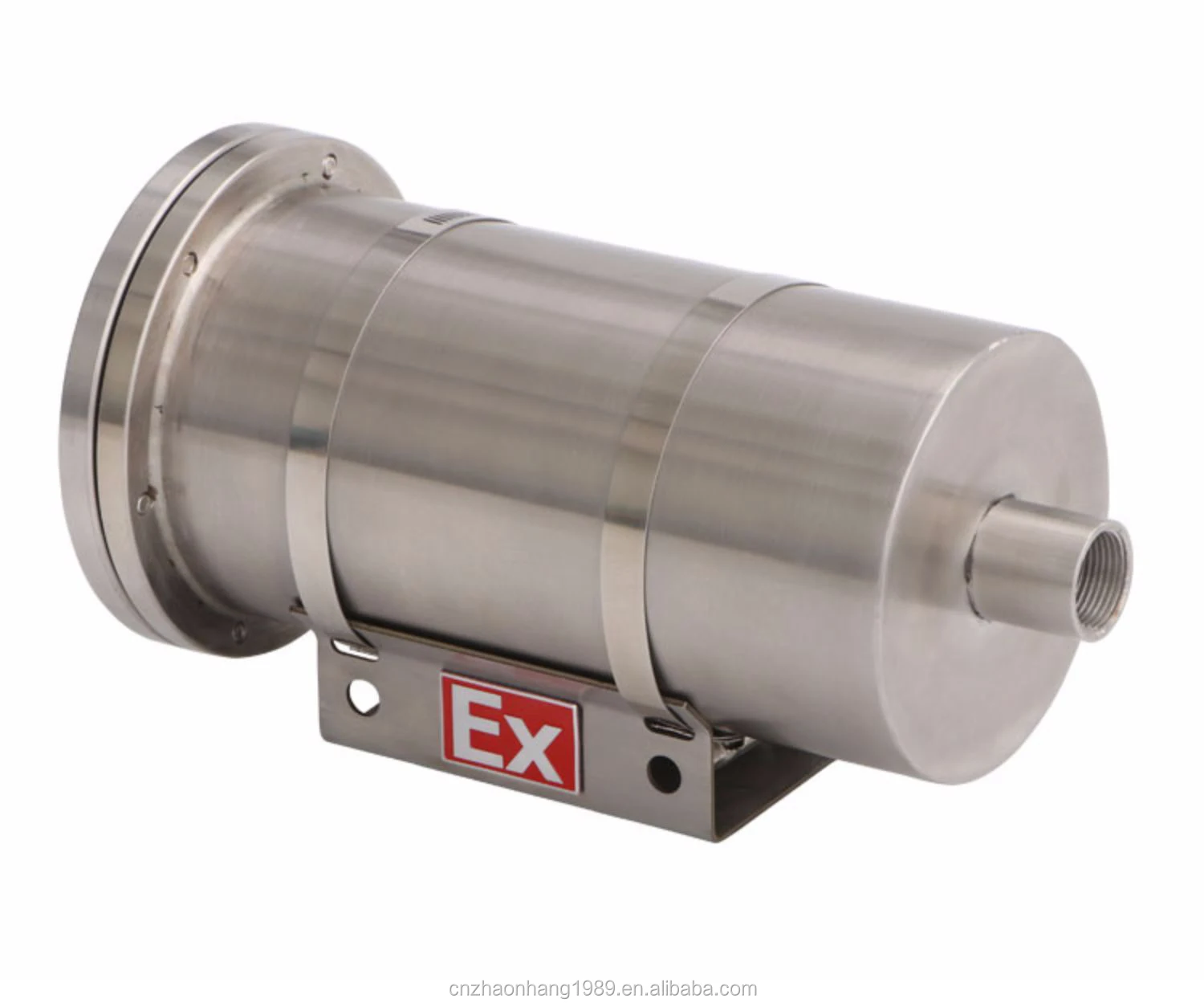

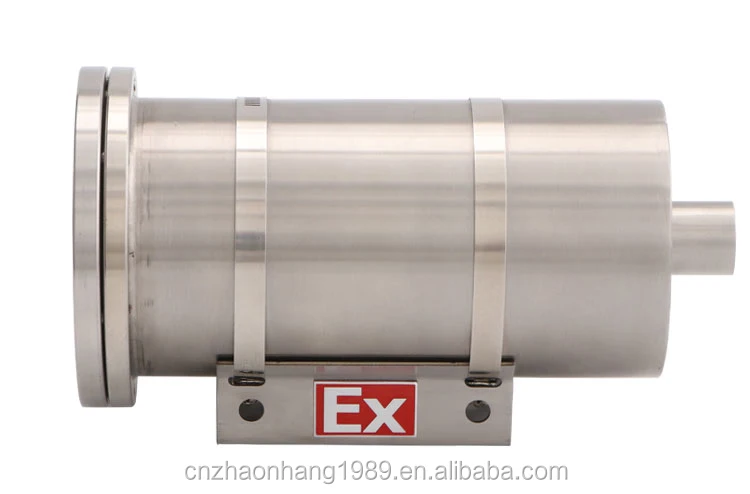

Explosion-proof camera Explosion-proof cover Explosion-proof monitoring camera Explosion-proof monitoring The star level Item NO.: 336140

Product features:

Made of 304 stainless steel

Beautiful shape

Cameras with fixed or zoom lenses can be installed

Windows are made of solid tempered flat glass

There are two outlet holes in the back of the shield

Protection level IP68

Indoor and outdoor installation, all-weather use

Product description:

The protective cover of flameproof camera is mature explosion-proof monitoring equipment. The product can be used with flammable and explosive

In the gas environment, cooperate with various explosion-proof electric cradle head to achieve the purpose of monitoring the site.

The flameproof camera shield can be fitted with a camera with a fixed or zoom lens or an integrated camera.

Stainless steel structure to meet the needs of all kinds of environment. It can work stably for a long time under the temperature from -30℃ to +60℃.

Power supply can be 24VAC or 220VAC or 12VDC or 12VPOE.

The Windows are made of special tempered flat glass, which ensures the clarity of the image while being durable.

Equipped with 2 outlet holes, explosion-proof flexible pipe or armored cable can be used for explosion-proof electrical connection.

Optional low temperature automatic heating function.

Easy to install and maintain, it can be installed by electric cradle head, semi-fixed cradle head, fixed bracket, base, column and tower.

Certification:

Explosion-proof marks Exd Ⅱ CT6 / DIP A20 TA, T6

Explosion proof certificate

Electrical index:

Input voltage 220 vac / 12 VDC / 24 vac / 12 vpoe, according to the camera specification

Operating current ≤ 0.5a

The camera power 220 vac / 12 VDC / 24 vac / 12 vpoe

Heater (optional) starts when the temperature is lower than -10℃±5℃

Power consumption ≤20W (including heating)

Electrical connections

2 core socket for power input/output

4 core socket for lens control input/output

2 core socket is used for heater power input/output

Mechanical index:

Stainless steel 304 or 316L

Protection level IP68

Window thickness 10mm window diameter 88mm

Dimension length 340mm outer diameter 130mm

Weight/shipping weight 8Kg / 7Kg

Number of outlet holes 2

Specification of thread for outlet hole g-3/4"

Installation mode: electric cradle head, semi-fixed cradle head and fixed bracket

Camera parameters:

The main features

The highest resolution is 4M(2560× 1440@25 FPS), under which real-time image can be output

Support low code rate, low delay, ROI region of interest enhanced coding, SVC adaptive coding technology, support smart265 coding

The smooth setting of code flow ADAPTS to different requirements of image quality and smoothness in different scenes

Support GBK font library, support more Chinese characters and rare words superposition

Support OSD color selection

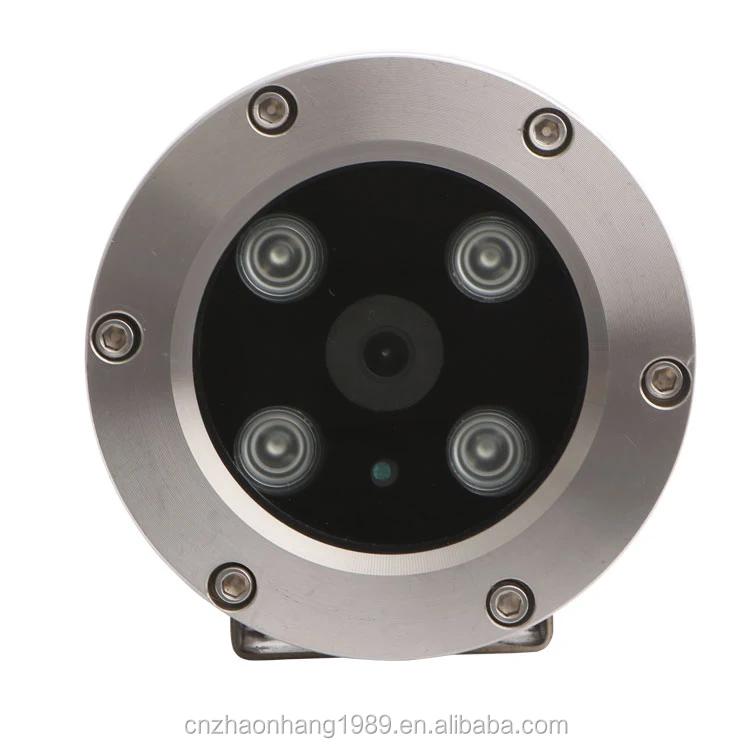

Efficient array infrared lamp, long service life, irradiation distance up to 50 meters

Support smart IR to prevent infrared overexposure at night

ICR infrared filter type automatic switch, achieve real day and night monitoring

Support day and night two sets of parameters independent configuration

PoE power supply support (optional)

Support 3D digital noise reduction, support true wide dynamic

Support dual code stream, support mobile phone monitoring

Support corridor mode, backlight compensation, automatic electronic shutter function, adapt to different monitoring environment

Full function: heartbeat, mirror image, etc

Support intelligent alarm: cross-border detection, regional intrusion detection

Intelligent post-retrieval is supported, and NVR supports secondary retrieval analysis of events

Support fluorite cloud platform access

Support Email, FTP, NTP server test

Support HTTPS and other security authentication, support the creation of certificates

Modify the password of initial equipment to ensure the security of the password

Support user login lock mechanism, and password complexity prompt

It conforms to IP67 class dustproof and waterproof design, with high reliability

The camera

Sensor type 1/3" Progressive Scan CMOS

Minimum Lux @(F1.2,AGC ON),0 Lux with IR

Shutter 1/3 second to 1/100,000 second

Lens 4mm, horizontal field of view Angle :76.5°(6mm,8mm,12mm,16mm(I3 none) optional)

Day and night conversion mode ICR infrared filter type

Wide dynamic range 120dB

Backlight compensation support, optional area

Digital noise reduction 3D digital noise reduction

Compression standard

Video compression standard h. 265/ h. 264 / MPEG4 / MJPEG

H.265 encoding type Main Profile

H.264 encoding type BaseLine Profile/Main Profile

Compression output bit rate 32 Kbps~8Mbps


The maximum image size is 2560×1440

Frame rate: 25fps(2560×1440, 2048 × 1536, 1920 × 1080, 1280 × 720)

Backlight compensation support, optional area

Network function

Interface protocol ONVIF(PROFILE S,PROFILE G),PSIA,CGI, ISAPI

Intelligent alarm boundary detection; Regional intrusion detection; Motion detection; Dynamic analysis; Illegal access; Blocking alarm; Cable is broken; IP address conflict; memory

Full; Memory fault

Support agreement

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP and RTCP, RTSP, PPPoE, NTP, UPnP, SMTP, SNM

P, IGMP, 802.1 X, QoS, IPv6, Bonjour

General function anti - flicker, rotation, double code stream, heartbeat, mirror image, password protection, video cover, watermark

interface

Communication interface 1 RJ45 10M / 100M adaptive Ethernet port

General specification

Operating temperature and humidity -30℃~60℃, humidity less than 95%(no condensation)

Power supply DC12V±25% / PoE(802.3af); (-d model does not support PoE)

MAX power consumption 7.5 W

Infrared irradiation distance of 50 meters
