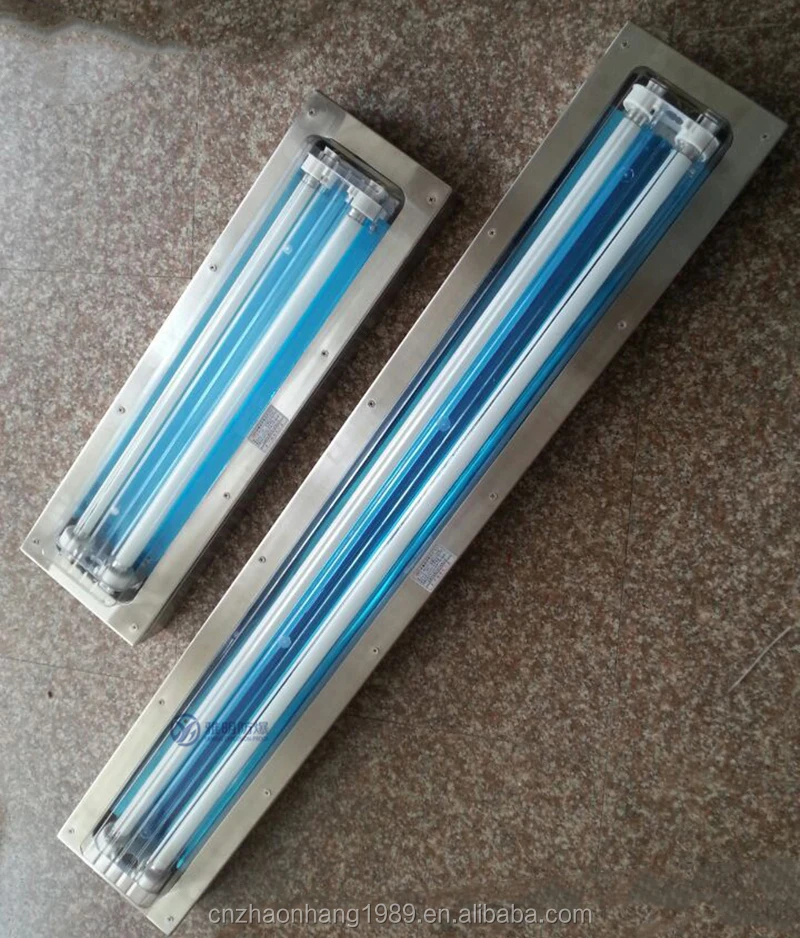

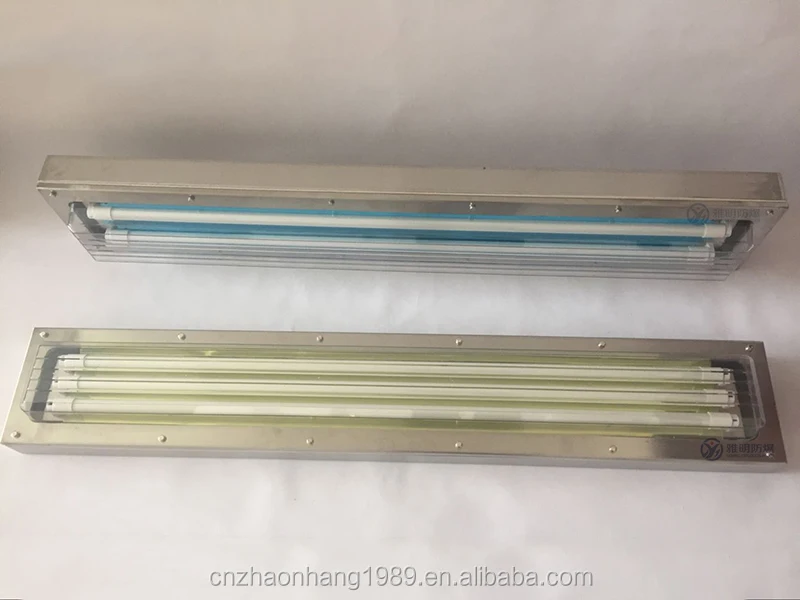

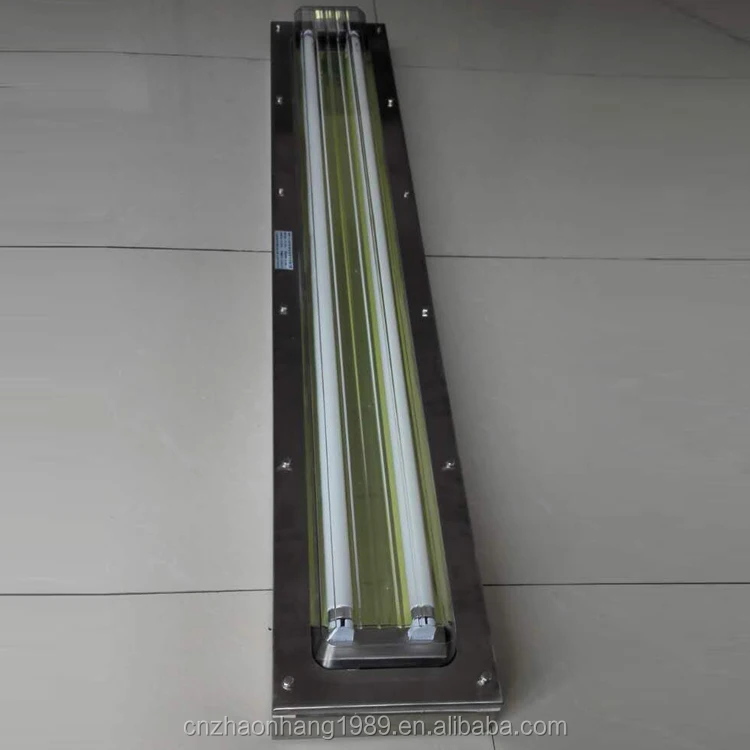

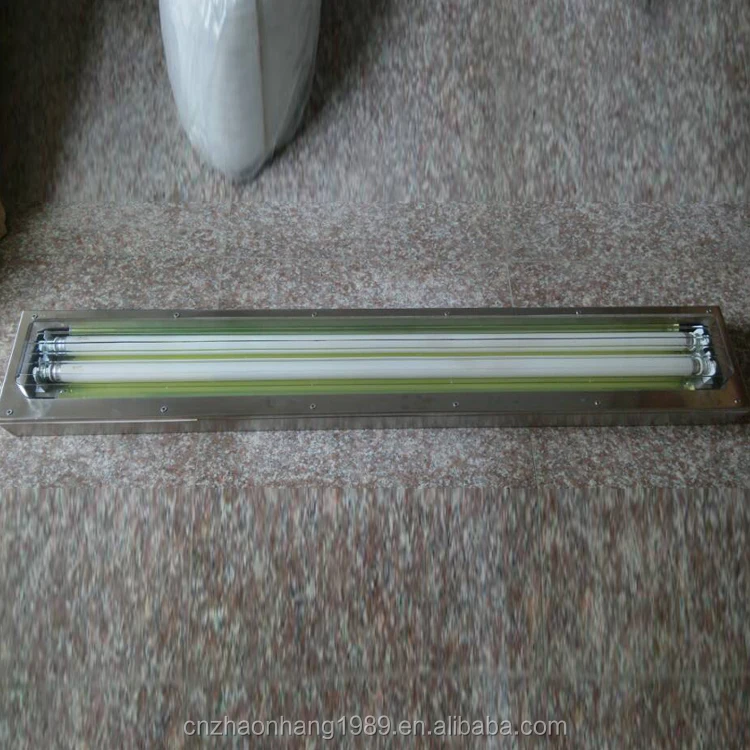

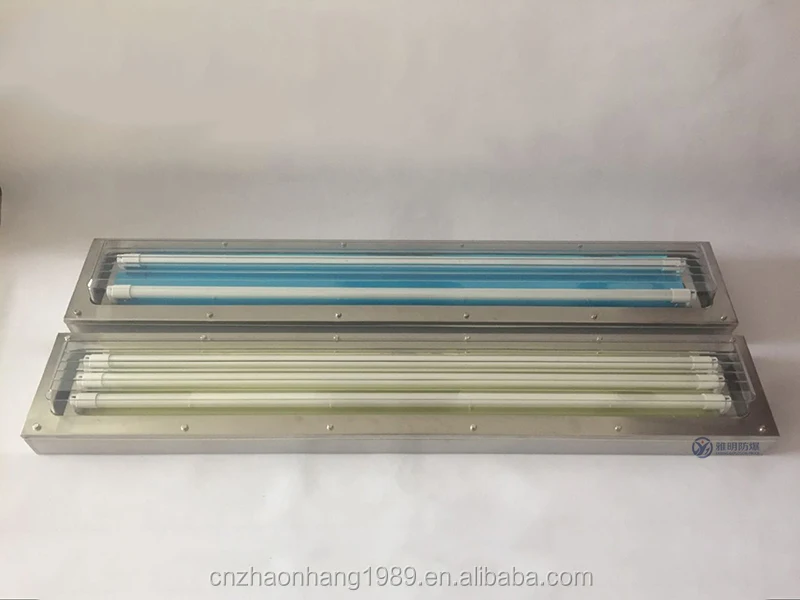

Explosion-proof Stainless steel cleaning lamp Stainless steel flameproof clean fluorescent lamp Stainless steel cleaning lamp Item NO.: 336130

Scope of application:

1. Suitable for dangerous places in zone 1 and zone 2;

2, suitable for IIA, IIB, temperature group TI ~ T6 range of explosive gas environment.

Performance features:

1. The transparent part of the lamp body is made of reinforced carbonic acid material, featuring high strength, strong impact resistance, high temperature and cold resistance.

2. The light source adopts the latest generation T5 ultra-fine fluorescent lamp, which has the following characteristics:

A. shorter tube length, more accurate lighting control;

B. High light efficiency, more in line with the actual lighting environment, the light efficiency of the lamp can be as high as 1041lm/W; C. Ultra-long switching times and service life, up to 20,000 hours;

D. High lumen maintenance rate and slow light decay

E. Improved beam distribution, high color rendering, energy saving and environmental protection.

3. The reflective cover adopts arc bending, which makes the beam distribution more reasonable.

4, the inner ballast is a special explosion-proof electronic ballast, with short circuit and open circuit protection function, for the aging effect of the lamp and leakage phenomenon is equipped with a preventive circuit, so that the lamp can work normally, and the power factor can be up to more than 0.98. With wide voltage output, it can work normally within the range of 170V ~ 250V, and can maintain constant power output without affecting the output light efficiency.

5, the fluorescent lamp body and transparent cover adopt the form of buckle, the combination is more compact, the use of special design of sealing strip, double sealing, more excellent protection performance.

6, maintenance is simple, when opening and closing, just insert the screwdriver into the small mouth of the buckle can be convenient to open and close.

7. The lamp is equipped with explosion-proof travel switch and equipped with cover opening power interlock device.

8. Emergency devices can be installed according to user requirements.

9, a variety of installation methods, can be embedded and ceiling type installation.

Technical parameters:

Rated voltage: AC220V50Hz

Explosion mark: ExdeIICT5

Protection grade: IP65

Corrosion grade: WF1

Lead in cable outer diameter: 8 ~ 14mm

Inlet device: g3/4"

Type of light source: T5 fluorescent tube

Rated power: 3×20W, 3×40W

Type of ballast: inductance ballast

Quality assurance:

Three pipe explosion-proof fluorescent lamp clean in strict accordance with ISO9001:2000 international quality management system standards for quality control, to ensure that product quality is higher than the national standard, fully meet the design requirements, the products implement 3 years warranty (light source) a year, within three years from the date of purchase products under normal use any failure by the company responsible for free maintenance.

Specifications:

ExedIICT5

Rated voltage (V) 220V/50Hz

Protection class IP65

Cable diameter (Φ, mm) 8 to 14

Inlet thread (G") 3/4

Light source: 20W×1 40W×1

Light source 40W×2 40W×3

Emergency starting time (S) 0.3

Charge time (h) 24

Emergency lighting time (min) 90
