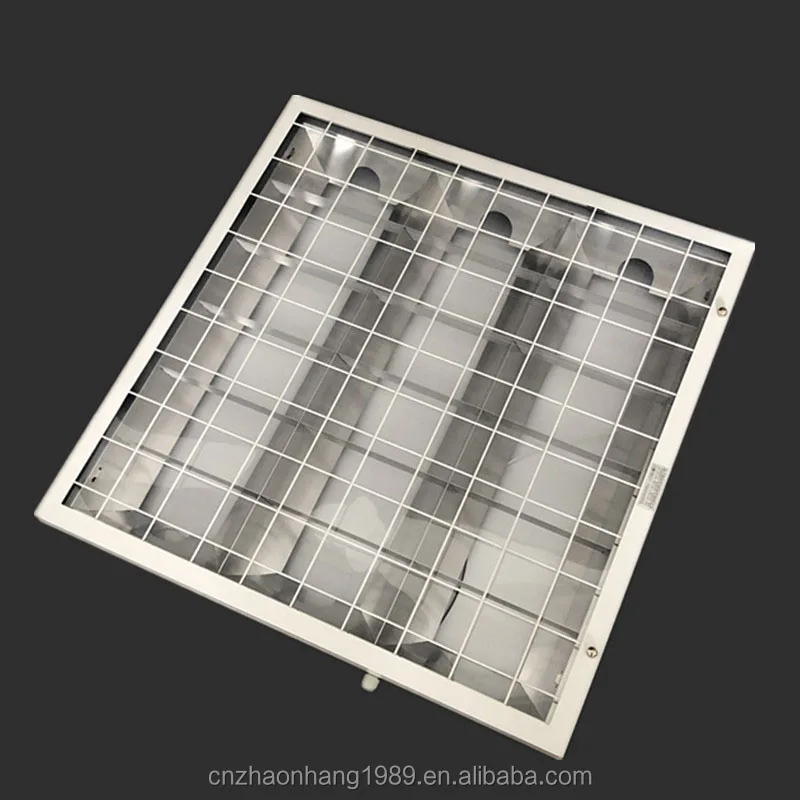

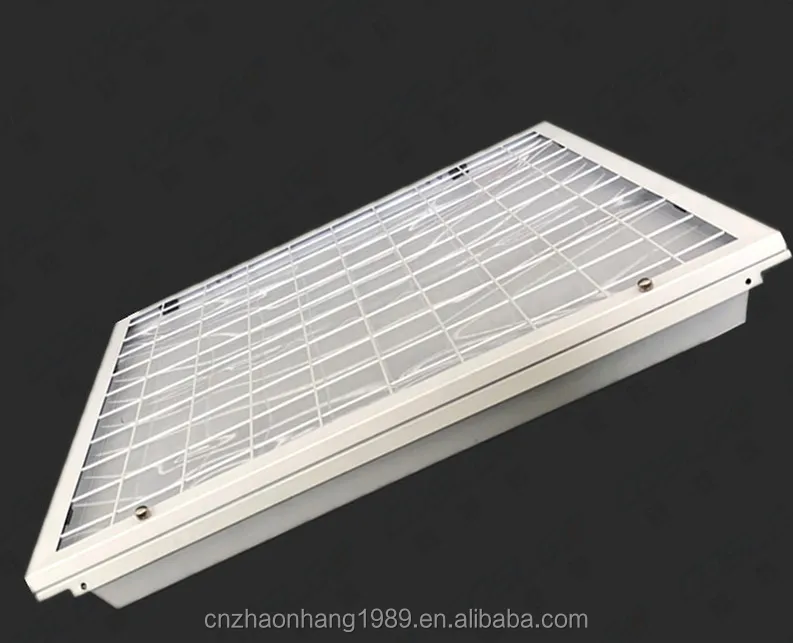

Embedded explosion-proof flat panel lamp 60*60 3*12W Item NO.: 335982

Scope of application:
It is applied to indoor public places that need to be protected from impact, such as low-canopy indoor sports venues, factory areas, laboratories, kitchens, libraries, archives and so on.

Material/process:

The shell of the lamp is made of high strength and high quality steel plate, the surface is treated by electrostatic spraying, the powder has strong adhesive force, uniform and bright, long-term use is not easy to peel off, the shell is welded, the welding spot and splicing gap are polished flat, the gap defect is completely not seen after spraying; Equipped with high-purity aluminized reflector, reasonable light distribution, to create a high brightness lighting environment, to meet the requirements of illumination in some special occasions; The surface cover with arch steel wire protection net can effectively prevent the impact of external objects on lamps and light sources.

Lamp holder and wiring terminal are made of resistive PC material, which conforms to 3C standard.

High temperature resistance 90℃, high voltage resistance 300/500v, in line with 3C standards;

Can be equipped with emergency system, dimming system.

Comply with IEC international safety standard, national standard gb7000.1-2002;

Installation/maintenance:

Ceiling type installation, or through the suspension system to do lifting;

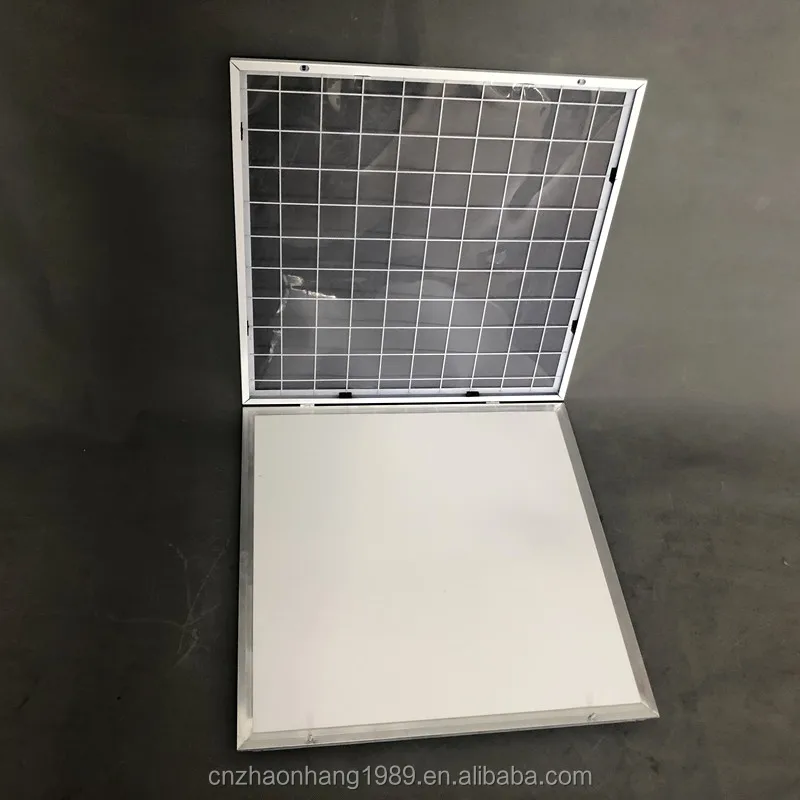

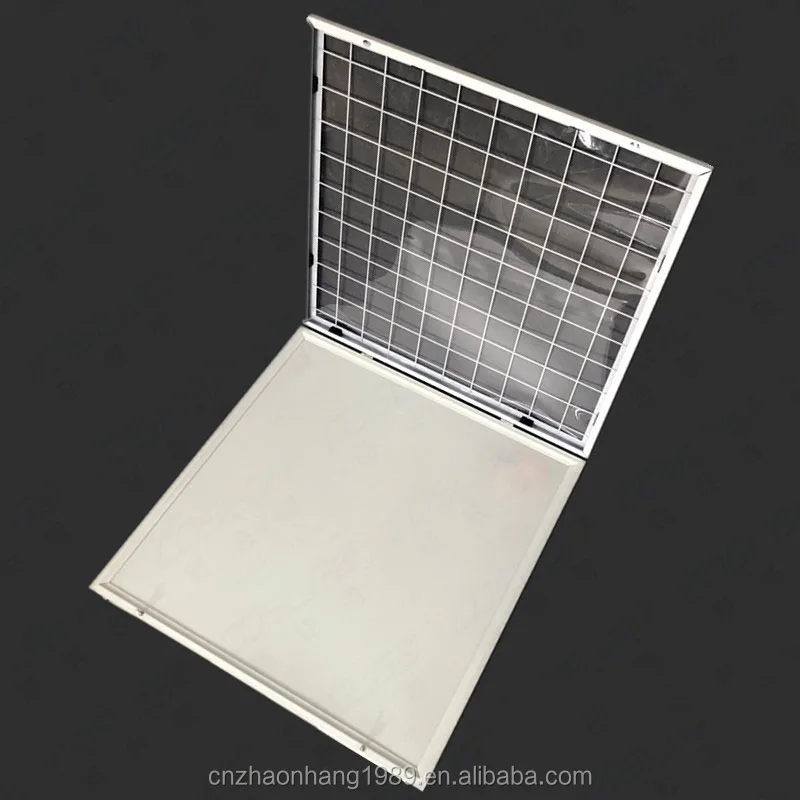

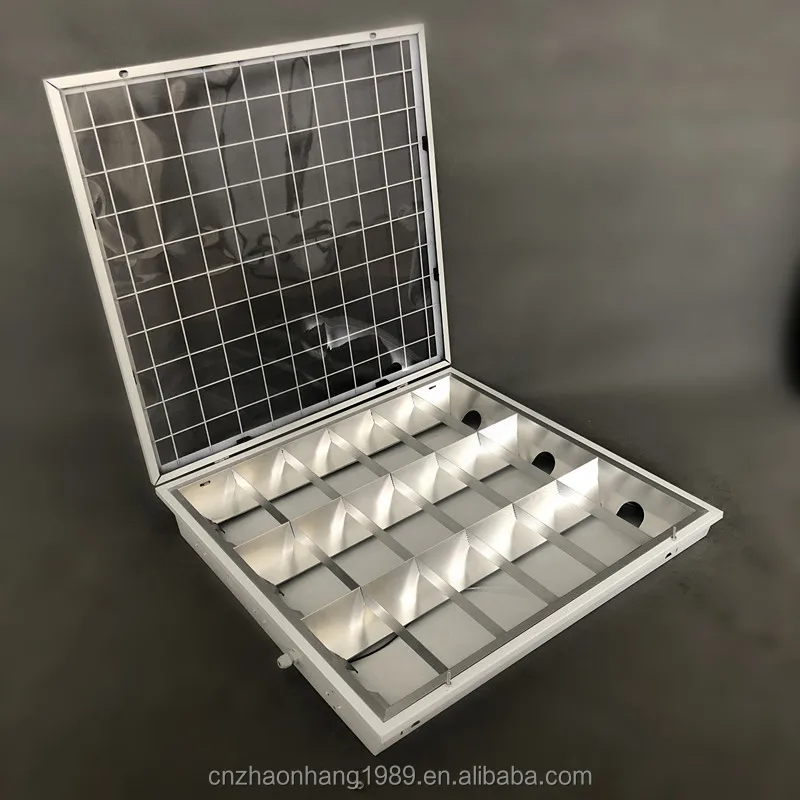

Directly remove the protective net with bare hands, the light source can be replaced, line detection and other maintenance;

Technical parameters:

Overall dimension: 600*600*

Opening size: 590-598mm is applicable

Material: cold rolled steel plate, powder sprayed on the surface

Power: 3 * 12 w

LED light source:

Protection grade: IP65

Explosion-proof grade: Ex IIC T5
