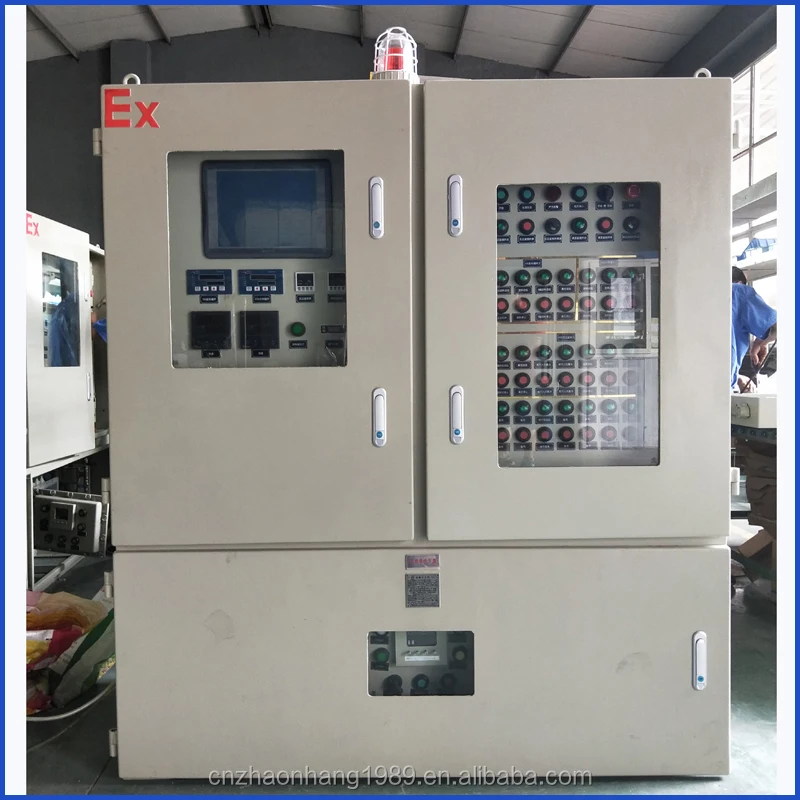

Customized explosion-proof positive pressure cabinet explosion-proof cabinet Item NO.: 335153

Measuring instrument, analyzing instrument, display instrument, transformer, soft starter, frequency converter, PLC, all kinds of buttons, switches, microcomputer touch screen and common electrical components, the users need to install electrical components are not restricted;
3. Adopt diversified design, can choose cabinet type (up and down form, about form), wall type, piano table type, plane type, etc.
4. Power distribution cabinet is composed of cabinet, control system, gas distribution system, alarm system and power distribution system; The positive pressure chamber is equipped with some explosion-proof components of the control system and distribution system components of the user (or split type or online type can be customized according to customer requirements);
5. The air intake mode of the left and right cabinets is ventilated, that is, uninterrupted and continuous air supply. The working heat of the components in the positive pressure chamber can be taken away with the air path, which has a good heat dissipation effect.

Under the control of the automatic control system, the positive pressure cabinet enters the protective gas, the pressure inside the positive pressure chamber is higher than the pressure outside the positive pressure chamber, which forms a small safe environment of micro positive pressure, thus preventing combustible dangerous gas from entering the positive pressure chamber and ensuring the safe operation of the common instrument and electrical components inside.
7. The automatic control system mainly completes high-end functions such as air change, air supply, ultra-high voltage automatic alarm and exhaust, under-voltage alarm, low-voltage interlock and power failure. (the positive pressure cabinet has the function of low-voltage interlock, and when the pressure value is lower than the specified pressure (50Pa), the user power distribution of the positive pressure chamber will be automatically cut off.)
8. External can be installed according to customer requirements protective door, can show the internal control part of the display or action;
9. All fasteners are made of 304 stainless steel with strong corrosion resistance.
10. Wiring, steel pipe or cable, explosion-proof hose can be;
11. Can be customized according to user requirements;

Technical parameters 10.
Flameproof marks: ExdeIIBT4/T5/T6, ExdeIICT4/T5/T6, DIP a20ta,T4/T5/T6;
Rated voltage: ac220/380v, non-standard voltage: 12V/24V/36V/127V/660V;
Main switching current: 10A -- 800A; Separate off current: 1A -- 630A;
Protection grade: IP54/IP55/IP65;
Thread specification: DN15-DN100/ g1/2 -G4 inches
Specification of lead-in wire: diameter 6mm-80mm; Specification of outgoing wire: diameter 6mm-80mm; Lead in and out direction: upper and lower, lower in and lower out (can be unlimited according to customer requirements)

I. scope of application
1. The product is suitable for use in chemical industry, offshore drilling platform, metallurgy, medicine, light industry, textile, food, biological engineering, aerospace engineering and military industry and other explosive gas or dust environment, as a three phase four wire system (380 v / 220 v) ac low voltage electrical power distribution system or analysis of testing instrument, instrument, monitor, microcomputer touch screen, high-power inverter, such as monitoring and control of components, heat dissipation, etc.
2. Suitable for dangerous places in zone 1 and zone 2.
3. Suitable for IIA, IIB, IIC, temperature group t1-t6 explosive gas environment.
4. Indoor and outdoor installation.
Ii. Principle of explosion protection
Adopt the explosion-proof measure of dielectric isolation ignition source. That is: the electrical components used by the user are installed in a cabinet full of positive pressure clean gas, so that the external environment flammable and explosive mixed gas cannot touch the electrical components in the normal work of the electrical sparks or dangerous temperature, so as to achieve the purpose of electrical explosion protection.
Iii. Product features

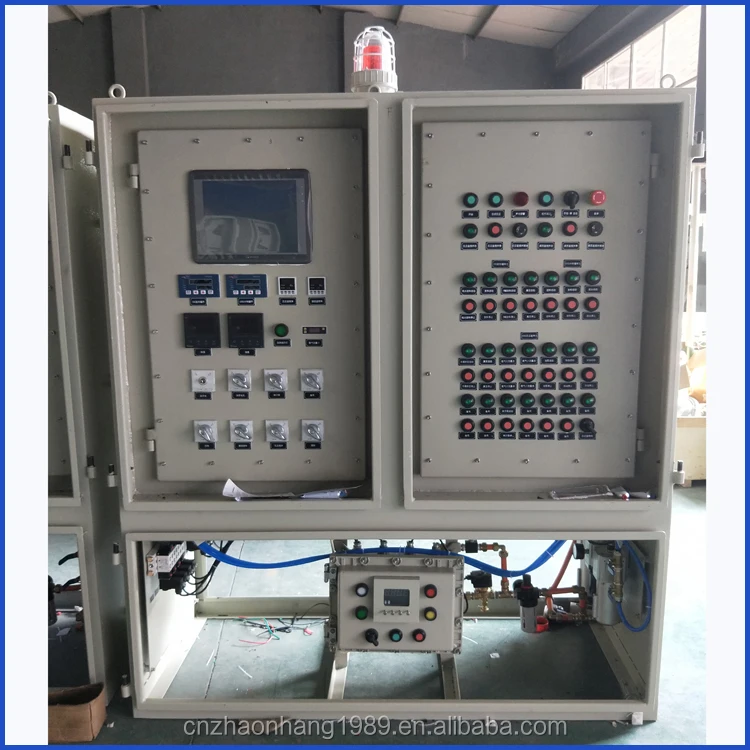

1. This product is mainly composed of cabinet, automatic control system, gas distribution system, alarm system and power distribution system; The cabinet body is composed of a positive pressure chamber and a secondary chamber. The user's distribution system components are installed in the positive pressure chamber, and the automatic control system is installed in the secondary chamber.
2. Cabinet type products adopt "second work" cabinet rack, main and secondary plates are left and right structure, upper and lower structure, piano table type, cable seat type installation, lower entry line, front door operation, front door or back door maintenance.
3. The box-type products are made of high-quality steel plate or stainless steel welded structure. The main and secondary plates are of upper and lower structure.
4. Qintable-type products are made of high-quality steel plate, which is folded and welded into shape. Main and secondary plates are front and rear structures.
5. Air intake is divided into ventilation type and compensation type. The ventilation type is uninterrupted and continuous air supply. The working heat of the components in the positive pressure chamber can be taken away with the air path. It has a good heat dissipation function and is suitable for solving the heat dissipation problem of high-power explosion-proof frequency converters. Compensation type for intermittent air supply, positive pressure chamber to have a good sealing, to ensure small gas consumption.
6. The user shall provide the air source, which is required to purify air or nitrogen, and the air source pressure is 0.2 ~ 0.8mpa; Generally, the instrument wind on the spot can meet the requirements.

Iv. Function description
Px series positive pressure cabinet
1. The product is equipped with ventilation chain. Before the product is put into operation, only after the air change in the inner chamber of the main plate reaches the specified air change time and amount, ensure that flammable and explosive gases are blown inside the main plate, and the secondary plate can be electrified.
2. Only when the air pressure in the inner cavity of the main disk meets the specified air pressure requirements, the power supply automatic switching system in the secondary disk will send power to the main cavity.
3. The working pressure of the inner cavity of the main disk is 100Pa≤P≤1000Pa.
When the air pressure is higher than 1000Pa, the automatic control system will automatically close the air inlet or open the exhaust valve, and automatically adjust the internal air pressure, so as to ensure that the product will not be damaged due to the impact of high pressure.
When the air pressure is lower than 100Pa, the automatic control system will automatically alarm, open the air intake, and automatically adjust the internal air supply. When the air supply is successful, it will automatically return to normal; if it is unsuccessful and the internal air pressure drops to 60Pa, the system can automatically power off if necessary.
4. The sub-panel automatic control system monitors continuously and displays the pressure parameters of the inner cavity of the main panel.
Pz series positive pressure cabinet
Pz series, compared with Px series, omits the safety device to check the air change time. It only marks the air change time, which is carried out by the user according to the requirements before the main cavity is electrified. In addition, when the internal pressure is lower than 100Pa, the automatic control system will automatically alarm, and open the intake, and automatically adjust the internal air supply. When the air supply is successful, it will automatically return to normal; when it is unsuccessful and the internal air supply drops to 60Pa, the system will not automatically cut off power and give intermittent alarm.
Cabinet production and internal components according to customer requirements are basically unrestricted.
