Crusher supply Type pc180-800 Plastic crusher one year warranty Plastic crusher Item NO.: 1944534

Please contact customer service

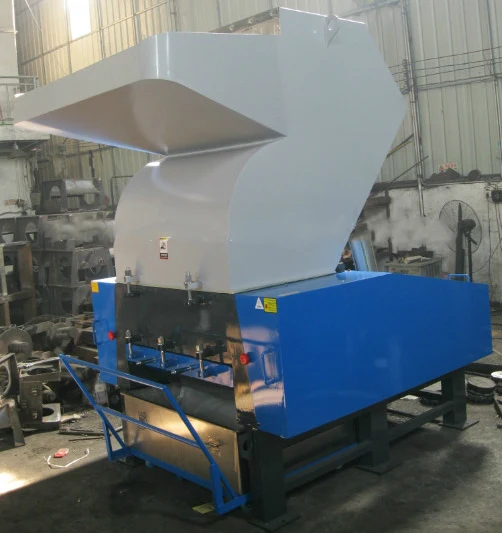

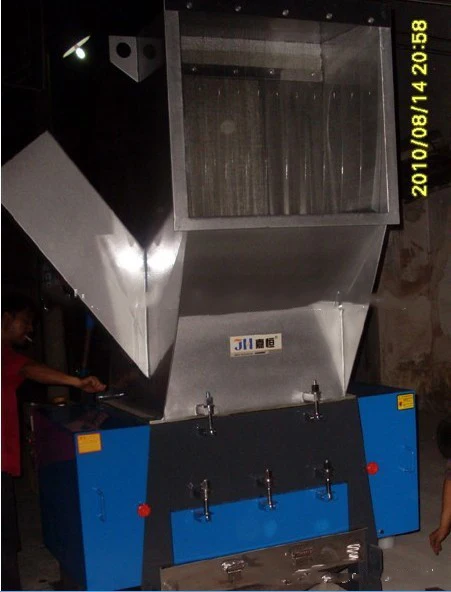

Product description of plastic film grinder:
It adopts imported high-quality tool steel and special tool, which is very durable. The installation design of the tool is retractable and adjustable. After being blunt, it can be grinded many times, used many times and has a long service life. The movable cutterbed is designed as a step shear type equipment, which decomposes the force on the chip and causes the chip force to multiply. T7 high-quality steel material is used as the moving tool holder, which is rigid, flexible and reasonable, not easy to crack or wear. It is fastened with high-strength (8.8) steel screws, with solid and durable structure. The main body of the machine is made of high-quality structural materials, which will not affect the mechanical properties due to crushing materials in long-term use. The main axis and double end faces of the machine are processed by high-precision coordinates in turn to ensure the concentricity and perpendicularity. Each part is set with a reference hole, and the surface is processed by two times of rough and fine flow processing, with high interchangeability and precision. The assembly of heavy load bearing and the setting of double-layer sealing device in the crushing chamber. The moving knife seat and the main shaft are assembled by heat sealing. The process is advanced, and the matching clearance of the moving knife is less than 0.05mm, so as to prevent the partial broken powder from leaking into the bearing seat and increasing the motor load, which overcomes the key failure factors of the crusher.
Product description of plastic film grinder:
1. It is made of imported high-quality tool steel and specially made tool, which is very durable. The installation design of the tool is retractable and adjustable. After being blunt, it can be grinded many times, used many times, and has a long service life. The tool holder is a ladder
The design of the two-stage shearing equipment can decompose the chip force and increase the chip force by several times. T7 high quality steel material is used for the movable cutterbed, which is rigid, flexible and reasonable, not easy to crack or wear, and high strength is adopted(
8.8) the steel screws are fastened and the structure is solid and durable. The main body of the machine is made of high-quality structural materials, which will not affect the mechanical properties due to crushing materials in long-term use. The axis of the machine body and the double end faces are also supported by high precision seats
2 standards are processed in sequence to ensure concentricity and perpendicularity. Each part is set with reference hole, and the surface is processed by two times of rough and fine flow processing. The parts have strong interchangeability and high precision. Assembly heavy duty type
The bearing and the crushing chamber are equipped with double-layer sealing device. The movable knife seat and the main shaft are assembled by heat sealing. The process is advanced, and the matching clearance of the movable knife is less than 0.05mm, so as to prevent the partial broken powder from leaking into the bearing seat and increasing the load of the motor, which overcomes the key failure factors of the crusher.
Product introduction:
1. Suitable for crushing common sheet, pipe, profile, plate and packaging materials, plastic products and sprue such as the leftover of injection molding machine nozzle;
2. Adopt imported high quality tool steel, special tool, durable. The installation design of the cutting tool can be adjusted and retracted. It can be grinded many times and used many times after being blunt. It has a long service life.
3. The movable cutterbed is designed as a step shear type equipment, which decomposes the force on the cutting layer, resulting in multiple growth of chip force and even granulation of products. High quality steel material is selected as the base material of the moving knife, which is rigid, flexible and reasonable, not easy to crack or wear,
4. The front and back of the room are double-layer sound insulation, the middle is filled with sound insulation materials, and the voice is low. Motor device overload protection device, interlock with power supply protection system to ensure safety

Characteristic:
This machine is suitable for recycling sheet materials of film machine, such as PE / PP film material, woven bag, fiber and other materials. The scissor type tool holder structure, which is specially designed for the film material crushing, has three cutting edges, 270 degree cutter tangent, and all-round uniform cutting, which is more conducive to improving the working efficiency. The plastic recovery system composed of film machine, centrifugal pumping machine and storage device can give full play to the recovery efficiency.
Claw crusher series
1. It is suitable for crushing and reusing all kinds of plastics, especially for all kinds of hard plastics (such as material head, shoe last material, etc.).
2. The series crusher is easy to operate, and the tool change is simple and quick; the optimized design of the tool holder, the claw type cutter can disperse the force, which makes the cutting inside of each knife increase, suitable for crushing thick materials, hard blocks, heads, etc., effectively improving the cutting force of the cutter, reducing the wear of the cutter, with the electric control safety design, the hopper adopts the double-layer structure, filled with sound insulation materials, which makes the design have good performance Safety and environmental protection, power saving and durable.
Flat crusher series
1. It is suitable for recycling box, thin pipe fittings, blow molded parts, bottles, shells and other plastics.
2. The series crusher is easy to operate, easy and quick to change. The wide structure of flat knife is suitable for crushing large volume thin-wall and thin material products, improving the crushing efficiency. It is equipped with electric control safety design, motor with overload protection device, power chain protection system, which makes the equipment have good safety and environmental protection, power saving and durable.
Chip crusher series
1. The slice knife structure is between claw knife and flat knife, which is suitable for crushing common sheet, pipe, profile, plate, packaging material and other plastic products, sprue.
2. The general-purpose plastic crusher adopts sealed bearing to keep the bearing rotating well for a long time; the design of knife shape is reasonable and the product is even in granulation; the heat shrinkable treatment of knife seat makes the appearance design beautiful and generous.
Film crusher series
1. This machine is suitable for crushing and recycling PE, PP and other film materials;
2. The scissors type tool holder structure specially designed for the broken film material is more conducive to improving the work efficiency. The membrane crushing recovery system can be composed of suction fan and storage barrel, which can give full play to the recovery efficiency.
Bottle crusher series
1. Targeted development and design, dedicated to the crushing and recycling of large and small bottles, sheets and large plastic shells.
2. Five rows of moving knives, V5 type shear crushing, greatly improving the working efficiency.
3. The blade is easy to install and adjust.
4. The external bearing greatly reduces the possibility of bearing pollution, which is convenient for maintenance, firm and durable.
Features of silent crusher
1. Totally closed and silent design, noise is less than 80dB within 1m around the machine, and dust pollution is avoided at the same time.
2. There are many styles for selection.
3. The unique design of the internal heat conduction system can discharge the heat generated by the motor out of the machine and extend the service life of the motor on the premise of maintaining the full sealing.
4. The stainless steel storage box is easy and fast to clean. It can also be equipped with EI (stainless steel) storage box with suction.
5. Built in safety protection system, optional CE certified electrical appliances, fully in line with European safety standards.
6. Equipped with a phase sequence controller, which can prevent the adverse consequences caused by the reversal of the motor.
7. Equipped with power isolating switch, it is more convenient and safe for maintenance and operation.
8. Movable stainless steel hopper, handle switch and other sexual design make the operation easy and easy.
Automatic recovery system of crusher
1. It can be used with any type of crusher.
2. The crushed materials that have been broken by the crusher can be recovered automatically without any manual participation.
3. The contact part of raw materials is stainless steel (or rubber tube)
4. Equipped with dust collection device to absorb dust and prevent air pollution.
5. Dismounting and cleaning are convenient and quick.
