Chemical biological medicine polishing machine Stainless steel head sanding machine Small mechanical welding grinder Item NO.: 1943291

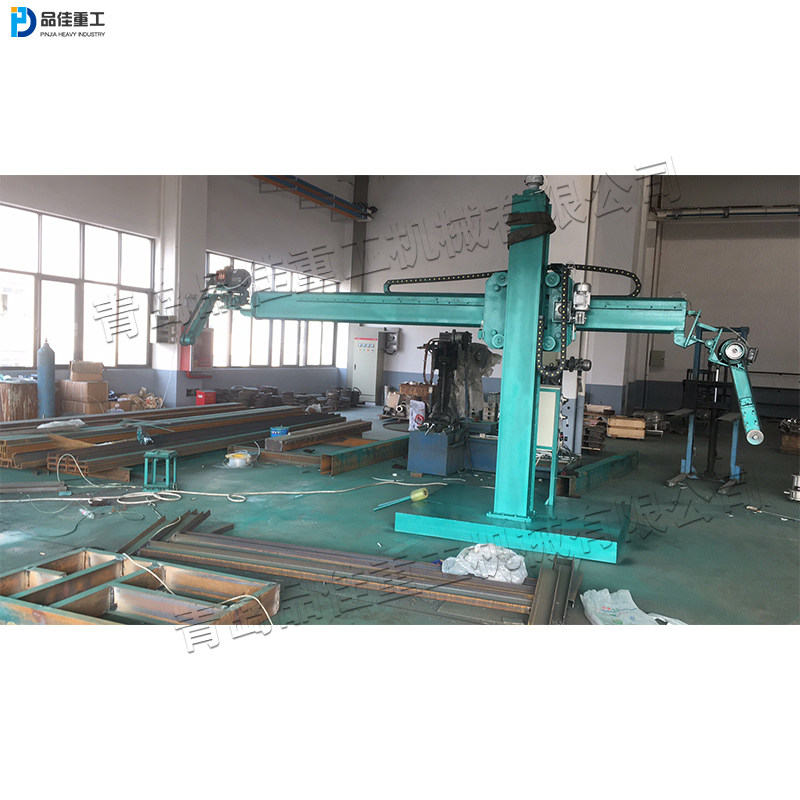

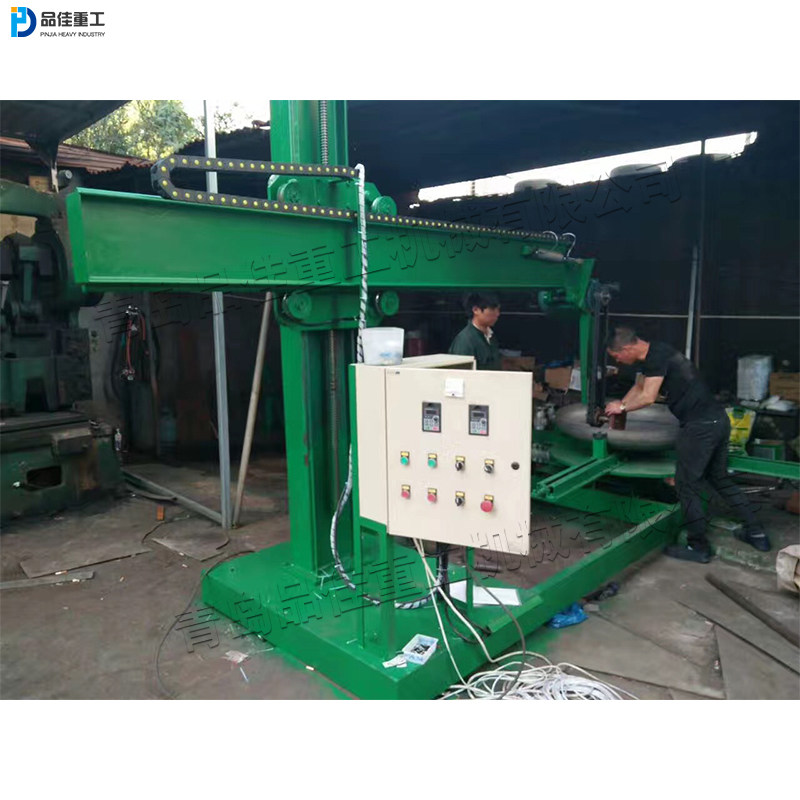

Applicable industries: chemical industry, biology, medicine, polishing and polishing of various stainless steel heads. The mechanical part is composed of polishing system, polishing wheel walking system and workpiece return workbench. The main structure is welded structural parts. The electrical control part is composed of control cabinet, frequency converter and motor.

1. Polished workpiece size: workpiece diameter φ 500- φ 2500mm

2. Machining accuracy: surface roughness Ra ≤ 0.25 μ M (reached successively)

3. Production efficiency: 9 m2 / h.

4. The workpiece rotation and transverse feed are variable frequency stepless speed regulation to further improve the work efficiency.

5. Suitable polishing materials are thousand impeller, cloth wheel and hemp wheel. Surface wire drawing can be realized by using nylon wheel.

6. Overall dimension of the machine (L) × W × H）：3000 × one thousand and five hundred × 2500mm。

7. Total input power: About 5kW.
