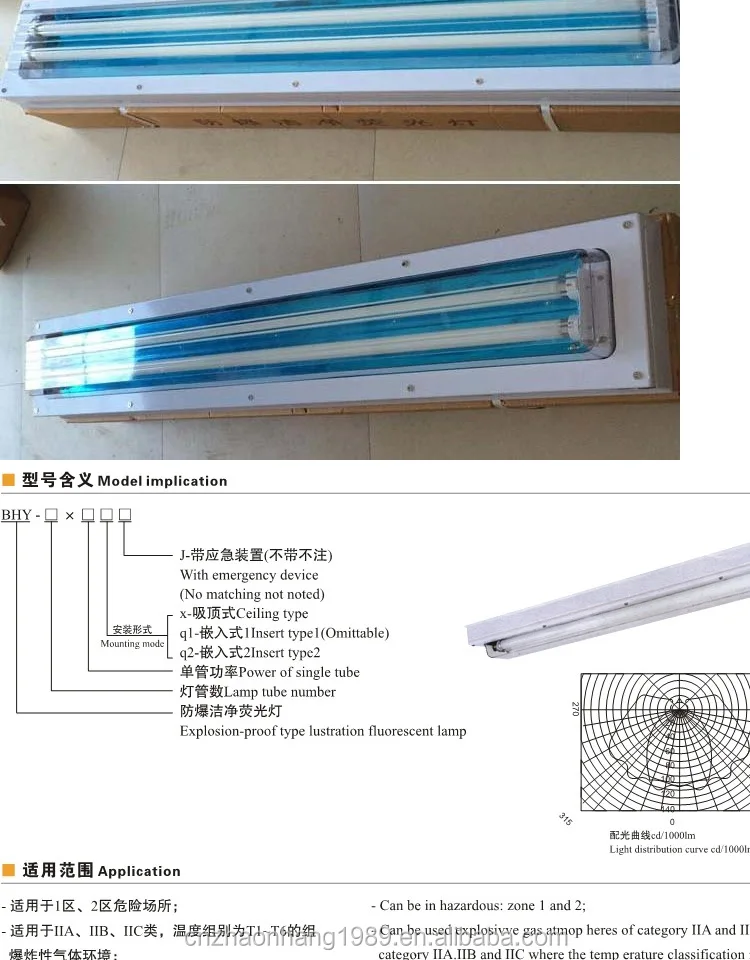

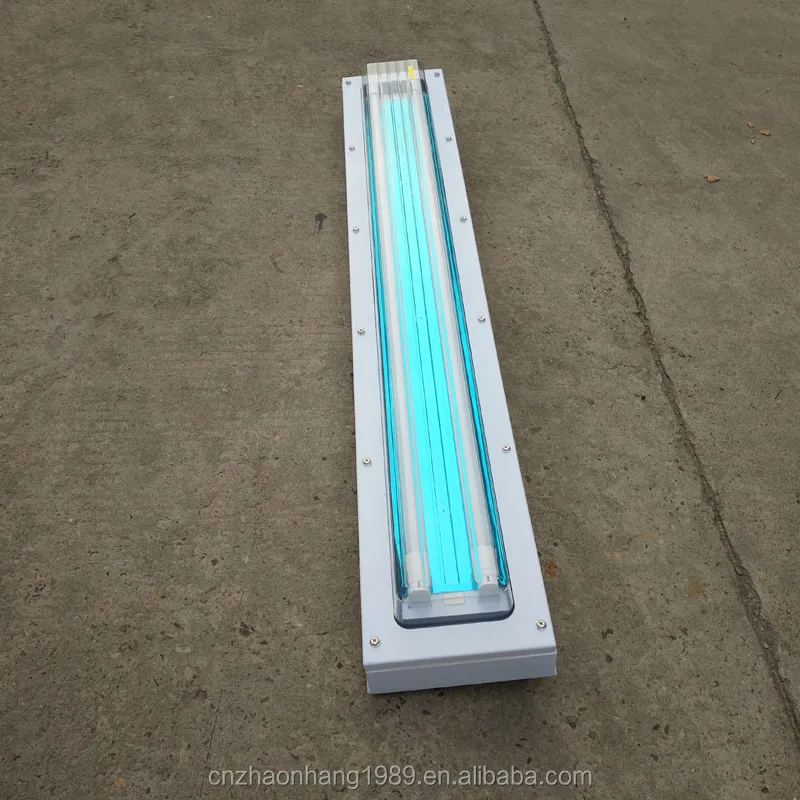

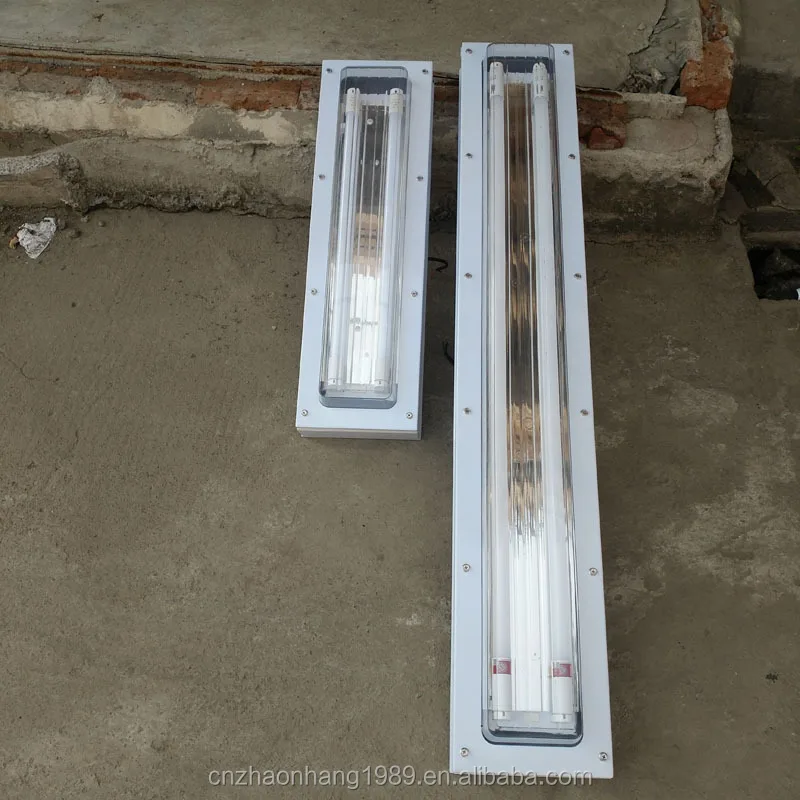

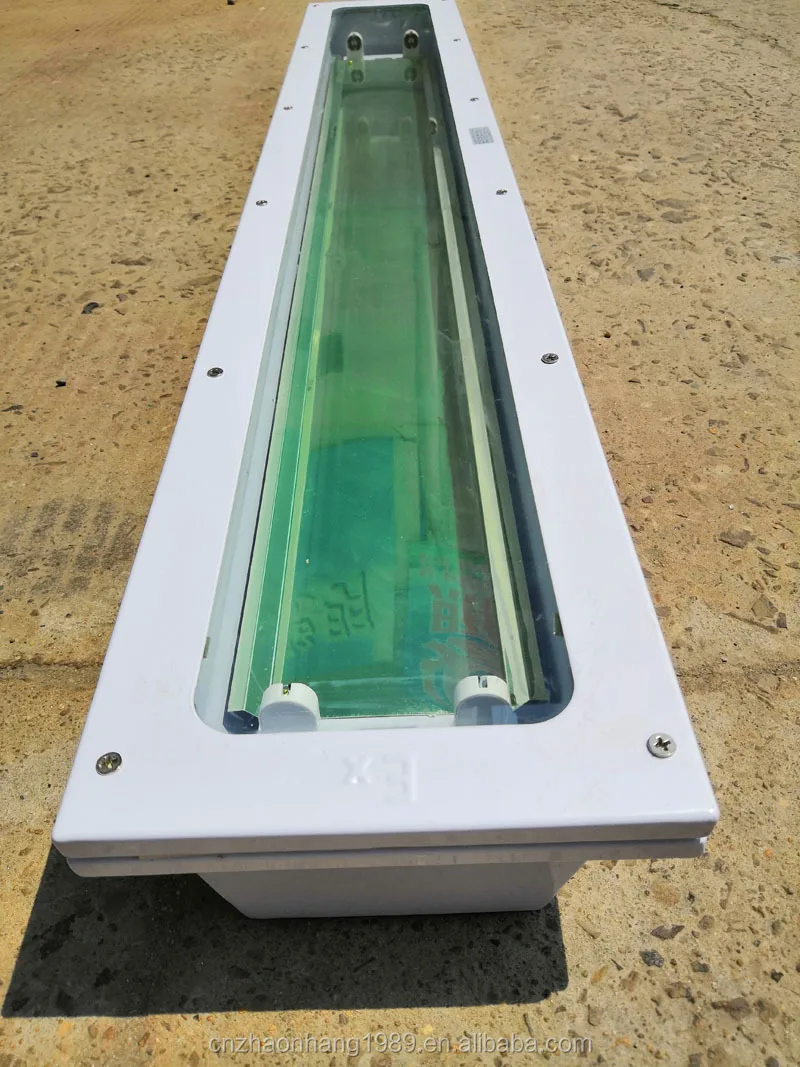

2*36W2*40W BHY explosion-proof purification lamp for pharmaceutical factory fluorescent lamp Item NO.: 335307

1. Application scope of BHY series explosion-proof clean fluorescent lamps

Suitable for dangerous places in zone 1 and zone 2;

Suitable for IIA, IIB, temperature group TI ~ T6 and other explosive gas environment.

Two, BHY series explosion-proof clean fluorescent lamp performance characteristics

The transparent part of lamp body is made of reinforced carbonic acid material, which has the characteristics of high strength, strong impact resistance, high temperature resistance and cold resistance.

The reflector is curved, and the beam distribution is more reasonable.

The inner ballast is a special explosion-proof electronic ballast, with short circuit and open circuit protection function, for the aging effect and leakage phenomenon of the lamp is equipped with a preventive circuit, so that the lamp can work normally, and the power factor can be up to more than 0.98. With wide voltage output, it can work normally within the range of 170V ~ 250V, and can maintain constant power output without affecting the output light efficiency.

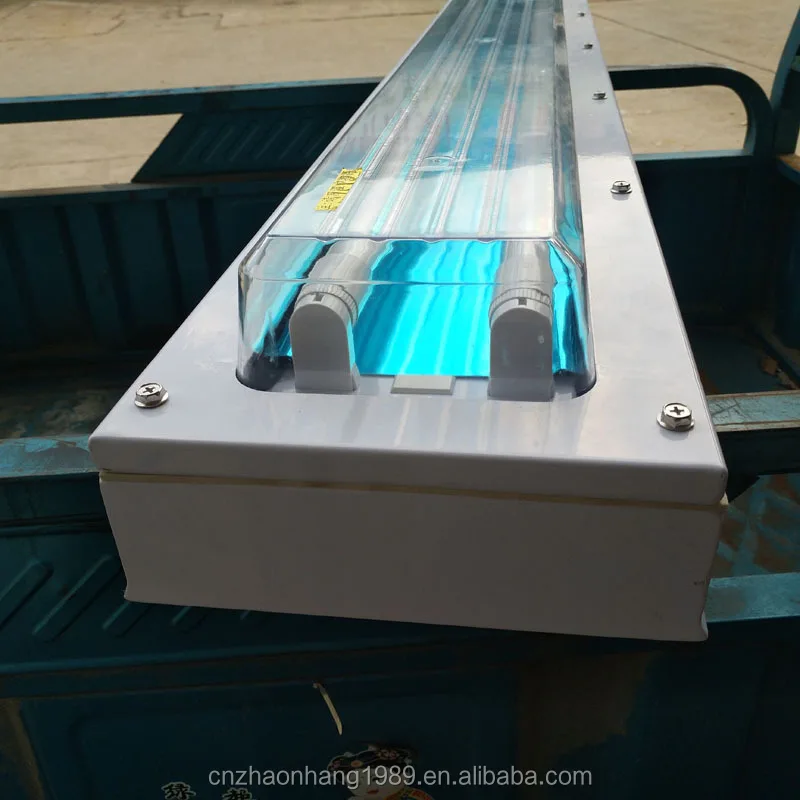

The fluorescent lamp body and the transparent cover adopt the form of buckle, the combination is tighter, adopt the specially designed sealing strip, double sealing, the protection performance is more excellent.

Maintenance is simple, when opening and closing, just insert the screwdriver into the small mouth of the buckle can be convenient to open and close.

The lamp is equipped with explosion-proof travel switch, equipped with cover - opening power interlock device.

Emergency equipment can be installed according to user requirements.

A variety of installation methods, can be embedded and ceiling type installation.

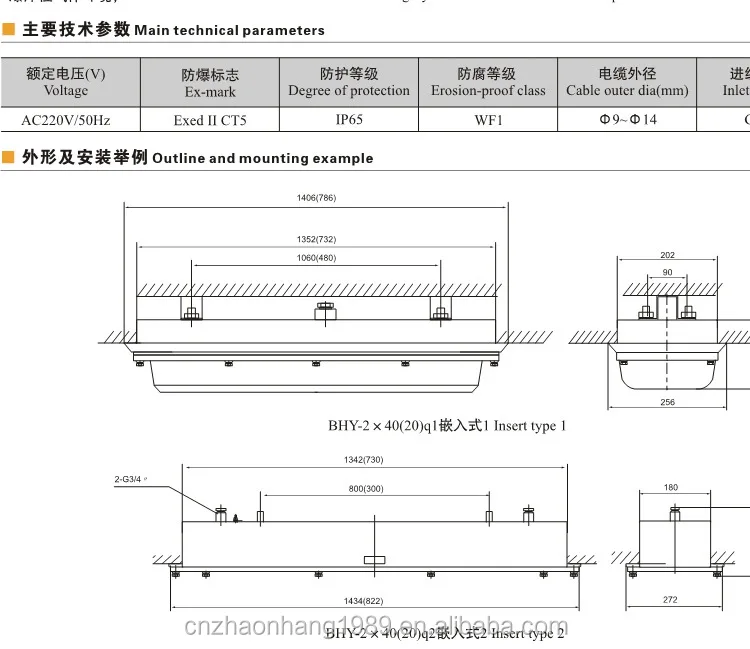

Three, BHY series explosion-proof clean fluorescent lamp main technical parameters

Rated voltage: AC220V 50Hz

Ex deIICT5

Protection grade: IP65

Corrosion grade: WF1

Lead cable outside diameter: 8 ~ 14mm

Inlet device: g3/4 ".
