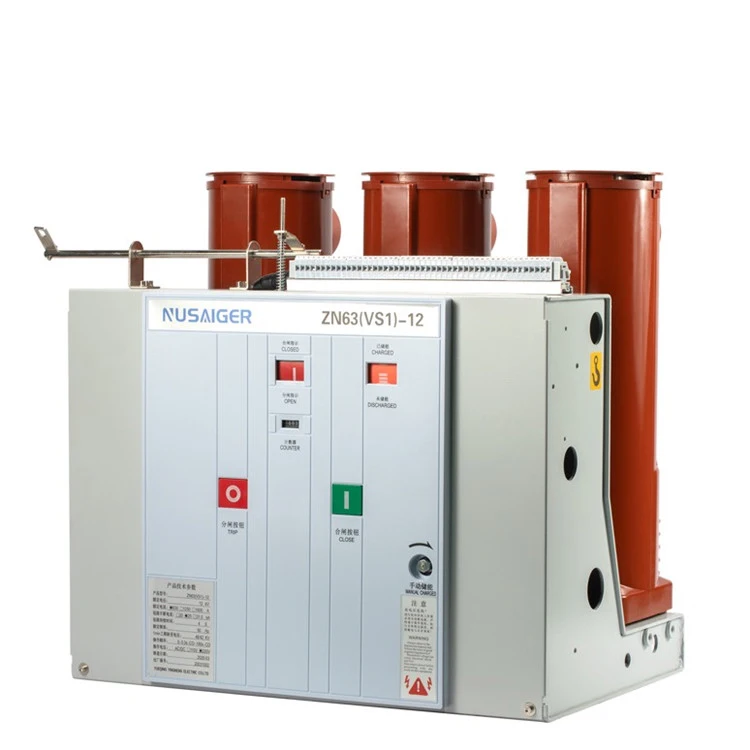

10 years warranty high voltage acb 800a 1600a 3P air circuit breaker with CE IEC certificated Item NO.: 1942175

Write a Review

US$ 230.00

Quantity: Stock ( 9 )

Estimate Shipping Cost

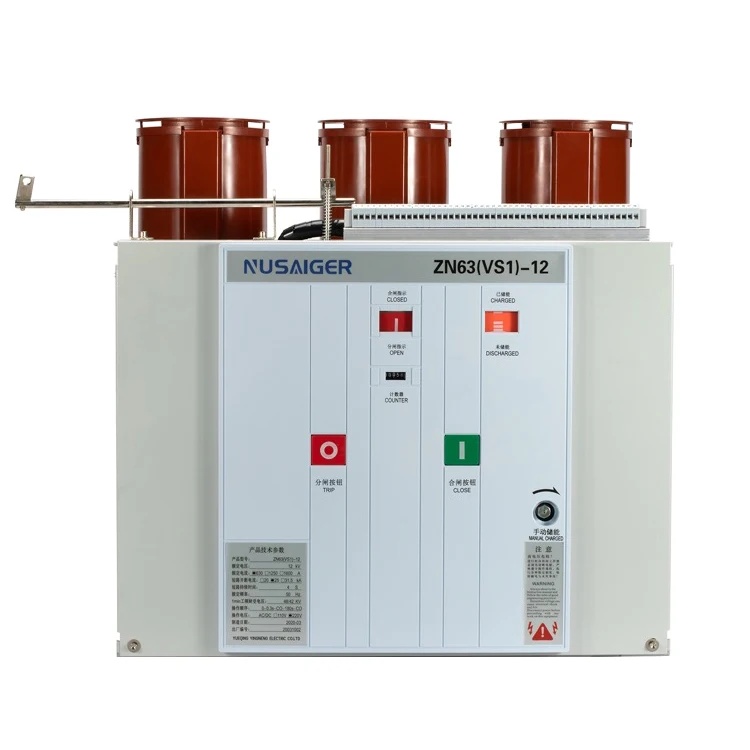

10 years warranty high voltage acb 800a 1600a 3P air circuit breaker with CE IEC certificated

Product Name	10 years warranty high voltage acb 800a 1600a 3P air circuit breaker with CE IEC certificated
Item NO.	1942175
Weight	3 kg = 6.6139 lb = 105.8219 oz
Category	Explosion-proof electrical apparatus
Creation Time	2022-04-18

Product Description

Rated AC current	200A-6300A
Rated operating voltage Ue(AC,V)	400V,690V
Rated limit short-circuit breaking capacity Icu(kA)	80KA-120KA
Rated operating short-circuit breaking capacity Ics(kA)	65KA-100KA
Installation Types	Draw-out type and Fixed type
Number of poles	3 Pole and 4 Pole
Operation type	Manual operation & Auto operation
Trip types	Intelligent controller, under voltage instant trip and shunt trip
Intelligent controller categories	L type(Basic type), M type(Standard type), and H type(Communication type)

					YNHV-VCB series high voltage VCB DW45 Intelligent Air Circuit Breaker(ACB)is suitable for the circuit of AC 50(60)Hz with rated voltage under 690V and rated current up to 6300A. It is mainly used to distribute electric energy and protect circuits and power-supply equipment from overload, under-voltage, short-circuit and single-phase earthing. With intelligent and selective protection functions, the breaker can improve the reliability of power supply, and avoid unnecessary power outage.


Feature

					* No arcing distance and high safety

* High breaking capacity, and complete accessories

* Compact structure

* With complete and reliable intelligent protection functions

* Integration communication, compatible to many protocols

* Simple installation, fixed or drawer out connection for main circuit

* It can bring communication interface, realize remote control, telemetry, remote communication, remote adjustment.

* Phase spacer door frames are standard

Product Paramenters

YNHV-VCB-2000 Air Circuit Breaker
Installation Type	Drawer and Fixed Type
Rated ultimate short-circuit breaking capacity Icu(kA)	AC 400V Icu=80kA, AC 690V Icu=50kA
Rated operating short-circuit breaking capacity Ics(kA)	AC 400V Ics=65kA, AC 690V Ics=40kA
Rated short-time tolerant current Icw(kA)	AC 400V Icw=50kA, AC 690V Icw=40kA
Rated current In (A)	630(200,250,315,400,500),800,1000,1250,1600,2000A
Rated operating voltage Ue(V)	400V,690V
Rated insulation voltage Ui(V)	1000V
Poles	3 poles, 4 poles
Breaking time (ms)	≤30
Closure time (ms)	≤60
Intelligent controller	L,M,H
Operation performance: Electric life	6500
Mechanical life	Non-maintenance:13500
Mechanical life	Maintenance:20000
Connection performance	Horizontal, Vertical
Physical dimensions(mm): Fixed type 3P	362351402
Fixed type 4P	457351402
Drawer type 3P	375451432
Drawer type 4P	470451432

YNHV-VCB-3200 Air Circuit Breaker
Installation Type	Drawer and fixed type
Rated ultimate short-circuit breaking capacity Icu(kA)	AC 400V Icu=100kA, AC 690V Icu=65kA
Rated operating short-circuit breaking capacity Ics(kA)	AC 400V Ics=65kA, AC 690V Ics=65kA
Rated short-time tolerant current Icw(KA)	AC 400V Icw=65kA, AC 690V Icw=65kA
Rated current In(A)	2000,2500,2900,3200A
Rated operating Ue(V)	400V,690V
Rated insulation voltage Ui(V)	1000V
Poles	3 poles, 4 poles
Breaking time (ms)	≤30
Closure time (ms)	≤60
Intelligent controller	L,M,H
Operation performance: Electric life	3000
Mechanical life	Non-maintenance:10000
Mechanical life	Maintenance:20000
Connection Performance	Horizontal, Vertical
Physical dimensions(mm): Fixed type 3P	422363402
Fixed type 4P	537363402
Drawer type 3P	435461432
Drawer type 4P	550461432

YNHV-VCB-4000 Air Circuit Breaker
Installation Type	Drawer and fixed type
Rated ultimate short-circuit breaking capacity Icu(kA)	AC 400V 3P: Icu=100kA, 4P:Icu=120kA AC 690V 3P: Icu=65kA, 4P:Icu=85kA
Rated operating short-circuit breaking capacity Ics(kA)	AC 400V 3P: Ics=65kA, 4P:Ics=100kA AC 690V 3P: Ics=65kA, 4P:Ics=85kA
Rated short-time tolerant current Icw(KA)	AC 400V 3P: Icw=65kA, 4P:Icw=100kA AC 690V 3P: Icw=65kA, 4P:Icw=85kA
Rated current In(A)	3200,3600,4000
Rated operating Ue(V)	400V,690V
Rated insulation voltage Ui(V)	1000V
Poles	3 poles, 4 poles
Breaking time (ms)	≤30
Closure time (ms)	≤60
Intelligent controller	L,M,H
Operation performance: Electric life	3P:3000 4P:1500
Mechanical life	Non-maintenance:5000
Mechanical life	Maintenance:3P:20000 4P:10000
Connection Performance	Horizontal, Vertical
Physical dimensions(mm):
Drawer type 3P	550494432
Drawer type 4P	788494432

YNHV-VCB-6300 Air Circuit Breaker
Installation Type	Drawer and fixed type
Rated ultimate short-circuit breaking capacity Icu(kA)	AC 400V Icu=120kA, AC 690V Icu=85kA
Rated operating short-circuit breaking capacity Ics(kA)	AC 400V Ics=100kA, AC 690V Ics=85kA
Rated short-time tolerant current Icw(KA)	AC 400V Icw=100kA, AC 690V Icw=85kA
Rated current In(A)	4000,5000,6300
Rated operating Ue(V)	400V,690V
Rated insulation voltage Ui(V)	1000V
Poles	3 poles, 4 poles
Breaking time (ms)	≤30
Closure time (ms)	≤60
Intelligent controller	L,M,H
Operation perofrmace: Electric life	1500
Mechanical life	Non-maintenance:10000
Mechanical life	Maintenance:5000
Connection Performance	Horizontal, Vertical
Physical dimensions(mm):
Drawer type 3P	4000A,5000A:813504432
Drawer type 3P	6000A:928504432
Drawer type 4P	928504432
